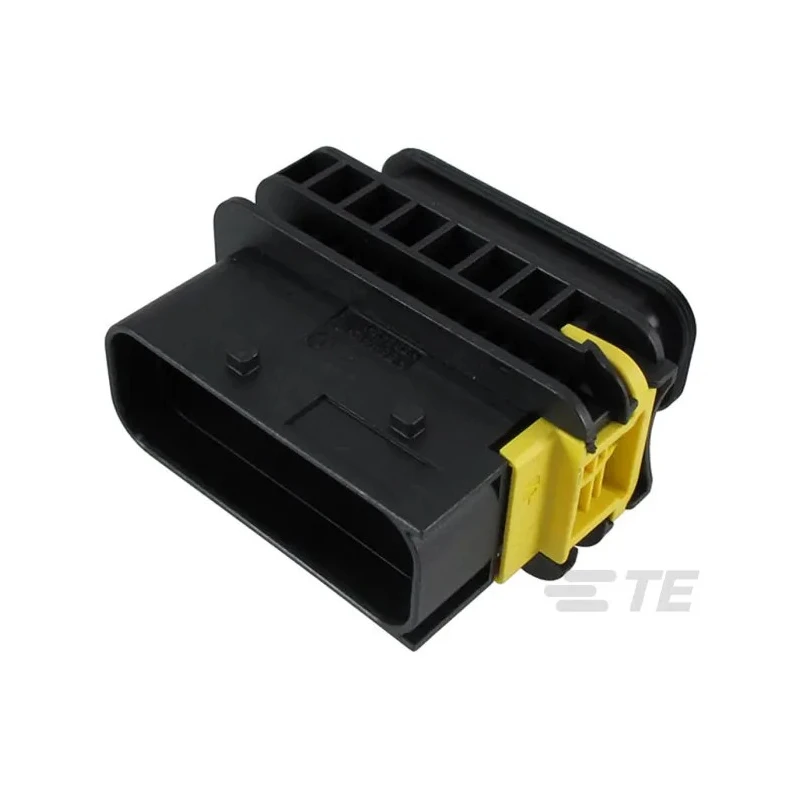

TE Connectivity HDSCS Automotive Connector Female Black Plug-in 18 Way Crimp Termination 1-1564412-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Current | 20A |
| Height | 27mm |
| Depth | 47.1mm |
| IP Rating | IP67, IP6K9K |
| Width | 52.6mm |
| Gender | Female |
| Mount Type | Plug-in |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | HDSCS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 140°C |
| Sub Type | Tab Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | EU ELV, EU RoHS |
| Contact Plating | Tin |
| Number of Contacts | 18 |
Key Features
- Black fibreglass reinforced polybutylene terephthalate housing for durability.
- 18 contact female tab housing with crimp termination for secure connections.
- Rated for 20A current with tin-plated contacts to ensure conductivity.
- Environmental sealing rated IP67 and IP6K9K against dust, water, and pressure wash.
- Wide operating temperature range from -40°C to 140°C for harsh conditions.
- Plug-in mount type with secure slide lock for firm connection stability.
- Complies with EU ELV and EU RoHS environmental standards.
- Compact size with dimensions 52.6mm width, 47.1mm depth, and 27mm height.
Product Description
TE Connectivity 1-1564412-1 HDSCS Automotive Connector is a high-performance female plug-in connector designed for automotive and industrial electrical applications. It features 18 crimp termination contacts housed in a black fibreglass reinforced polybutylene terephthalate body, delivering strength and resistance to harsh environments.
This connector supports a current rating of 20 amperes and is equipped with tin-plated contacts to ensure reliable electrical conductivity and corrosion resistance. Its IP67 and IP6K9K ratings certify superior sealing against dust, water immersion, and high-pressure cleaning, making it suitable for demanding outdoor and automotive conditions.
Designed with two rows of contacts in a tab housing, this plug-in connector uses a secure slide locking mechanism ensuring firm mating and electrical connection integrity. It operates efficiently within a wide temperature range of -40°C to 140°C, accommodating a variety of climatic conditions commonly encountered in automotive and industrial settings.
Compliance with EU ELV and EU RoHS directives assures that the connector meets environmental safety and hazardous substance restrictions. The housing is made from durable fibreglass reinforced polybutylene terephthalate, providing mechanical strength and resistance to chemicals and heat.
Black fibreglass reinforced polybutylene terephthalate housing for robust durability. 18 contact female tab housing with crimp termination for secure connections. Rated for 20A current with tin-plated contacts to ensure conductivity.
Environmental sealing rated IP67, IP6K9K against dust, water, and pressure wash. Wide operating temperature range from -40°C to 140°C for harsh conditions. Plug-in mount type with slide lock for firm connection stability.
Complies with EU ELV and EU RoHS standards for environmental safety. Compact dimensions (W 52.6mm x D 47.1mm x H 27mm) for versatile integration.
This connector is widely applicable in automotive electrical harnesses, heavy-duty vehicle systems, and industrial machinery requiring reliable sealed connections. It facilitates cable-to-cable and cable-to-device interfacing where environmental protection and durability are critical. For professionals sourcing quality automotive electrical connectors, this TE Connectivity HDSCS series model 1-1564412-1 represents a dependable choice.
Explore more connectors and industrial electronic components in the EnvMart catalog to meet your technical requirements precisely.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This automotive connector is rated for a current of 20A, ensuring reliable electrical conductivity.
The connector has compact dimensions of 52.6mm in width, 47.1mm in depth, and 27mm in height.
It operates efficiently within a wide temperature range from -40°C to 140°C, suitable for harsh conditions.
This model features crimp termination for secure connections, accommodating 18 contacts in a tab housing.
The housing is made from fibreglass reinforced polybutylene terephthalate, providing strength and resistance to harsh environments.
It is rated IP67 and IP6K9K, providing superior sealing against dust, water immersion, and high-pressure cleaning.
This connector features a plug-in mount type with a secure slide lock mechanism for connection stability.
Yes, it complies with EU ELV and EU RoHS standards, ensuring it meets environmental safety and hazardous substance restrictions.
This model has 18 contacts arranged in a tab housing, designed for effective electrical connections.
It is widely applicable in automotive electrical harnesses, heavy-duty vehicle systems, and industrial machinery requiring sealed connections.
It is a female plug-in connector designed specifically for automotive and industrial electrical applications.
The contacts of this connector are tin-plated to ensure reliable electrical conductivity and corrosion resistance.
