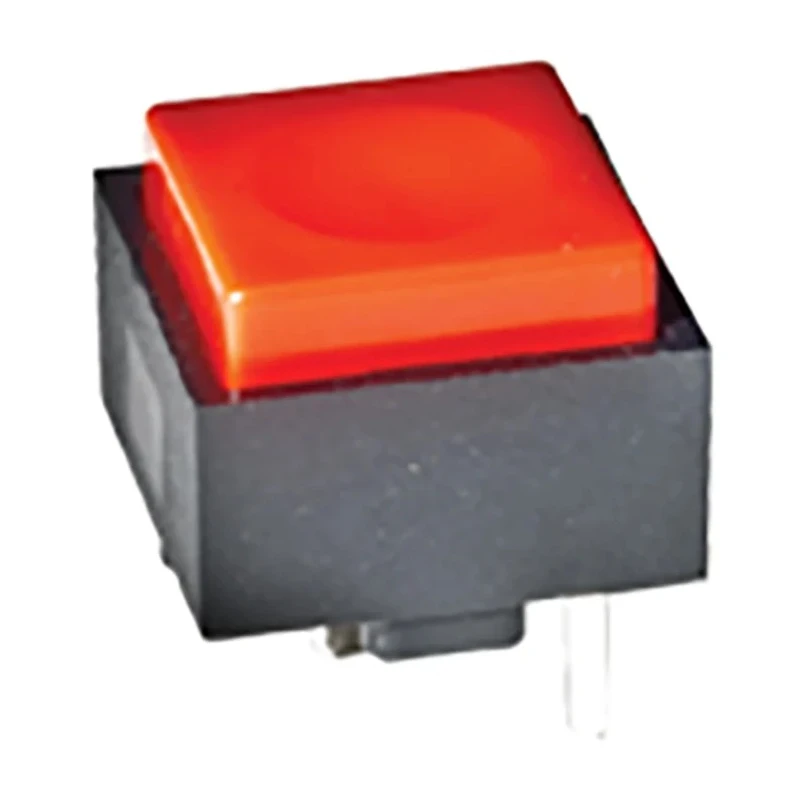

C & K KS Series Push Button Switch, Momentary, Through Hole Mount, Red Actuator, 12.32 mm Cutout, SPST, 50 V dc/ac KS11R23CQD

Name: C & K KS Series Push Button Switch, Momentary, Through Hole Mount, Red Actuator, 12.32 mm Cutout, SPST, 50 V dc/ac KS11R23CQD
Brand: C & K
SKU: 303089
Price: 1746 INR
Availability: InStock



Category Push Button Switches & Components Brand C & K Condition New

Specifications

Country of Origin	China
Brand	C & K
Model	KS11R23CQD
Mount Type	Through Hole
Series	KS
Maximum Operating Temperature	60°C
Contact Configuration	SPST
Minimum Operating Temperature	-30°C
Panel Cutout Size	12.32 mm
Terminal type	Through Hole
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Red
Contact DC Voltage	50V dc
Actuator Style	Square
Switch Contact Current	25mA
Contact AC Voltage	50V ac

Key Features

The actuator color is red for easy identification.
The switch operation is momentary, ensuring temporary circuit connection while pressed.
It has a panel cutout size of 12.32 mm for precise fitting.
Contact configuration is Single Pole Single Throw (SPST) for simple on-off control.
Rated for contact voltage of 50 V dc and 50 V ac with a 25 mA contact current.
Constructed for through hole mounting to provide secure PCB installation.
The actuator style is square, offering a stable tactile feel.
Engineered to operate reliably between -30°C and 60°C ambient temperatures.

Product Description

C & K KS11R23CQD Push Button Switch is a high-quality momentary switch designed for precision control in electrical and electronic equipment. Featuring a robust red square actuator, this switch provides a distinctive tactile feedback suitable for various applications in telecommunications, industrial systems, and instrumentation.

Manufactured to fit a 12.32 mm panel cutout, the switch supports a Single Pole Single Throw (SPST) contact configuration and is rated for up to 50 V dc and 50 V ac operation at a contact current of 25 mA. Its through hole mount design ensures firm and reliable attachment to printed circuit boards, making it ideal for durable installations.

The operating temperature range from -30°C to 60°C accommodates demanding environments, while compliance with RoHS standards guarantees that the switch meets modern environmental and safety requirements. The momentary operation type means the switch only remains activated while pressed, providing secure and accurate control.

This switch is widely used in telecommunications devices, industrial control panels, and instrumentation systems where precise, reliable switching is essential. Available in a range of cap colors and with configurable SPST or SPDT options, it provides versatility and customization for various electrical control needs.

The actuator is color-coded red to simplify identification in complex panels. Momentary switch operation enables temporary circuit activation. Panel cutout size is a precise 12.32 mm for seamless integration. Single Pole Single Throw (SPST) configuration allows simple on/off switching.

Contact ratings support 50 V dc and 50 V ac with a current capacity of 25 mA. Through hole mounting secures the switch firmly onto PCB assemblies. Square actuator shape enhances tactile feedback during use. Operating temperature range from -30°C to 60°C supports harsh conditions.

RoHS compliance certifies environmental safety standards.

Choose the C & K KS11R23CQD Push Button Switch for reliable, tactile momentary switching in demanding electronic and electrical control applications. Browse our extensive catalog of push button switches and components at EnvMart to find complementary products for your project requirements.
