EAO Illuminated Push Button Switch Panel Mount Momentary SPDT Green LED IP65 IP67 22.3 mm Cutout 240V AC 250V AC 82-6551.1136

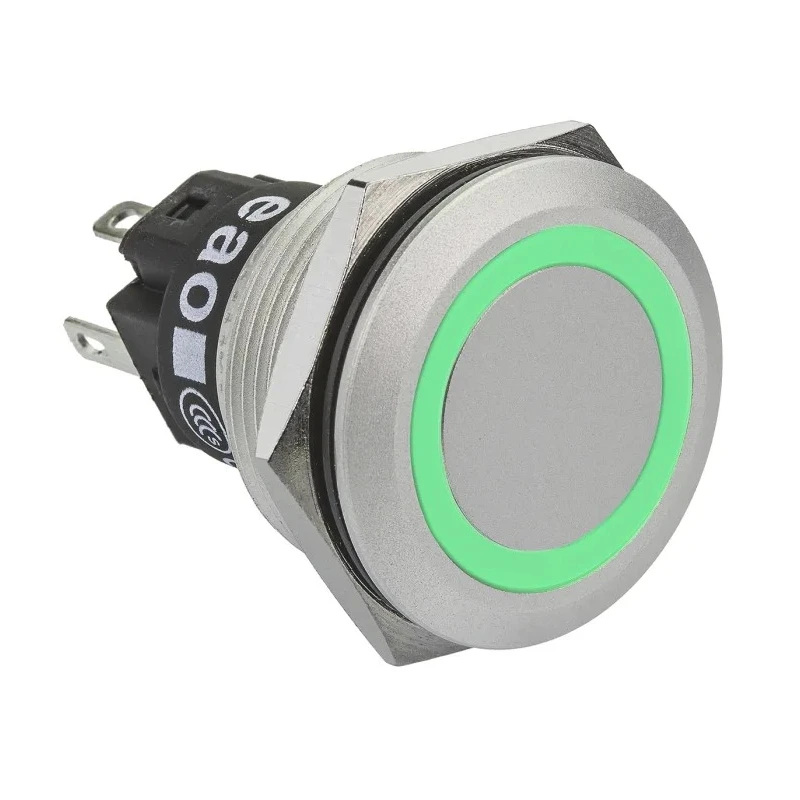

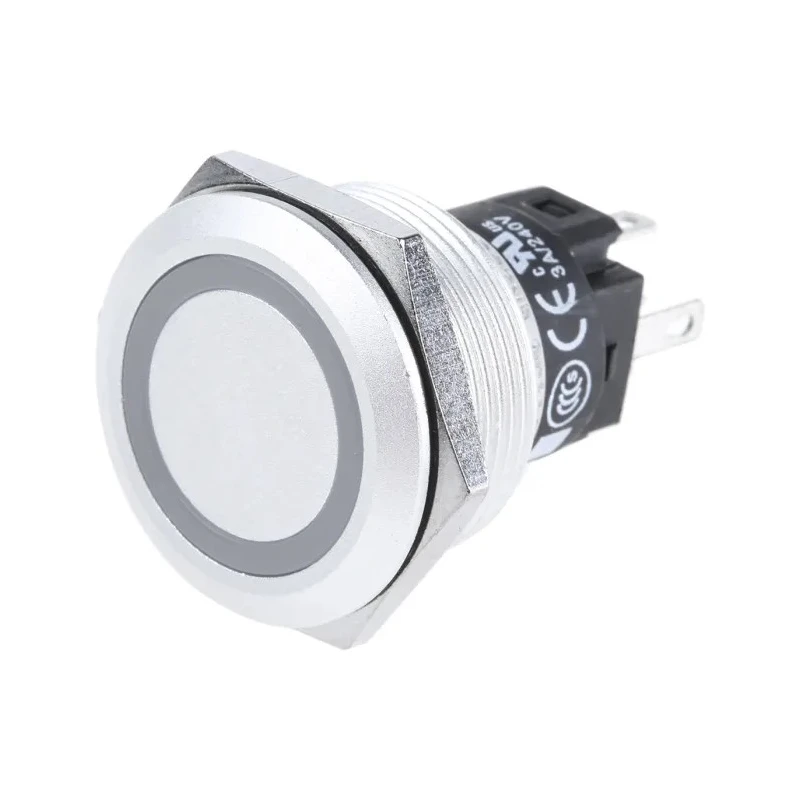

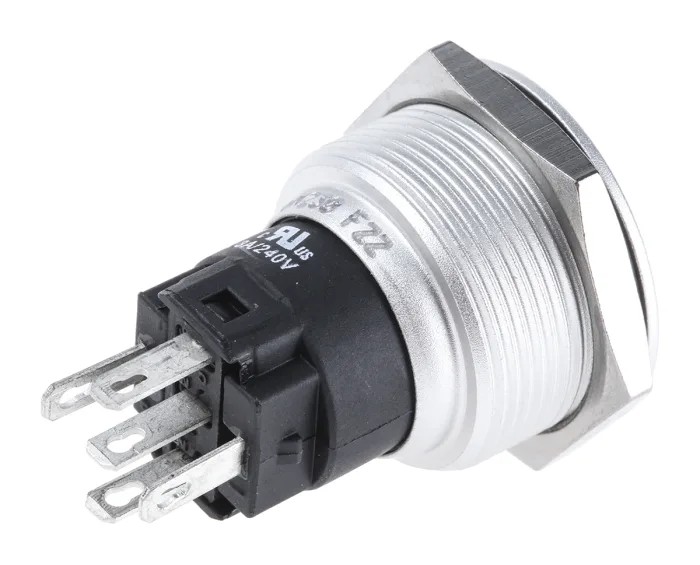

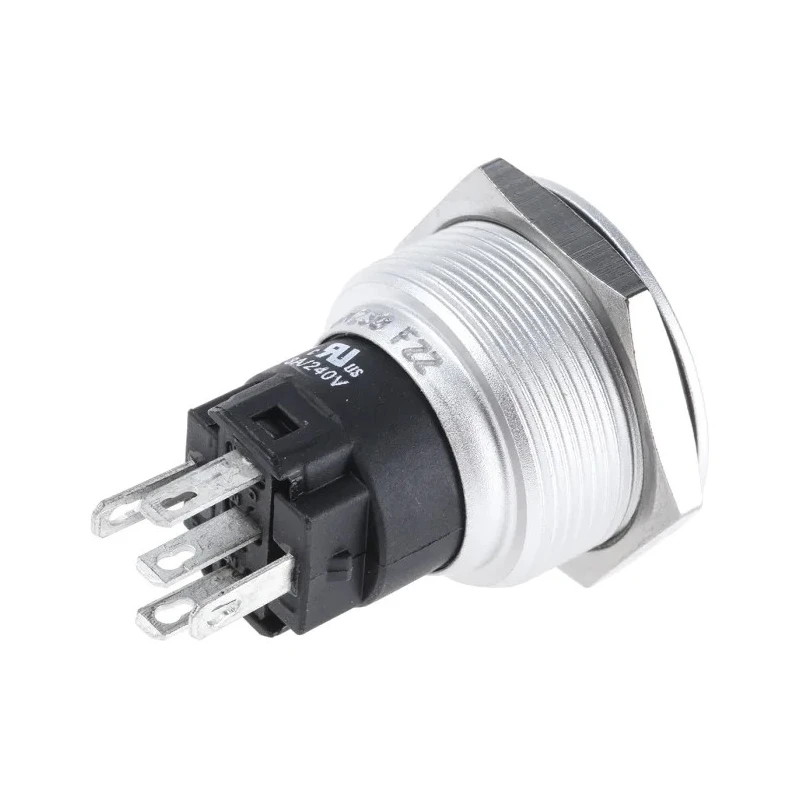

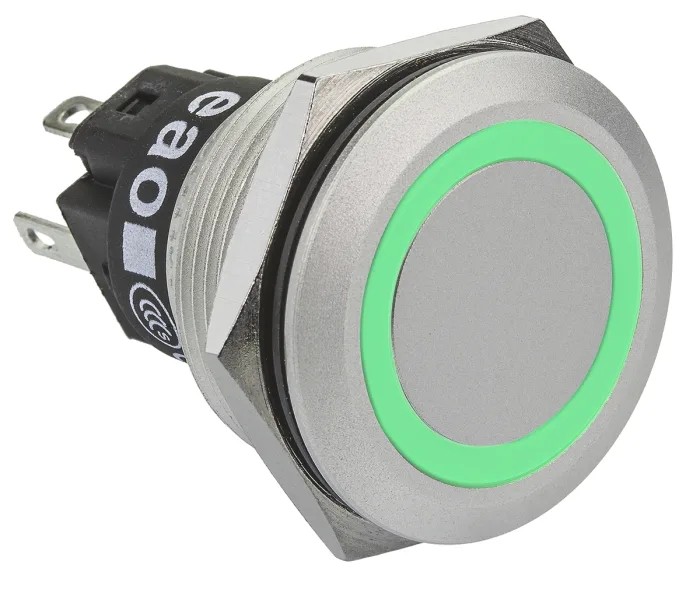

EAO 82-6551.1136 Illuminated Push Button Switch is a high-quality momentary panel-mount switch featuring a single-pole double-throw (SPDT) contact configuration. Designed by EAO, this push button switch prominently incorporates a natural-colored flat actuator with green LED illumination for clear status indication in any light conditions.

The switch fits a 22.3 mm cutout panel size and is engineered with aluminium housing providing excellent durability. Rated with IP65 and IP67 ingress protection, it effectively resists dust, water, and harsh environmental exposure, making it ideal for industrial, HVAC, manufacturing, and electrical control applications.

Operating from -30°C up to 70°C, the switch handles contact currents up to 3A and supports up to 240 V DC or 250 V AC contact voltages. The switch includes normally open (NO) and normally closed (NC) contacts with tactile feedback for precise momentary control use.

Its design incorporates protection against physical attacks with IK10 rating and is approved to international standards including CB, CCC, cUL, and UL. The device’s flat actuator style contributes to ergonomic usage while maintaining reliable illumination, readable in daylight environments.

The actuator is natural colored with a flat style. Panel cutout size is 22.3 mm for flush mounting. Compliance with IP65 and IP67 standards ensures dust-tight and waterproof operation. Contact configuration is SPDT suitable for various control circuit needs.

Green LED illumination is integrated for clear status indication. Operating temperature range from -30 to 70 degrees Celsius. Maximum switch contact current is 3 amperes. AC contact voltage rating up to 250 volts AC and DC rating of 240 volts.

Switch designed for momentary operation with NO and NC contacts. Length dimension measures 34.5 mm.

This EAO series 82 illuminated push button switch is widely used in automation, industrial machinery, electrical panel controls, water treatment systems, and other demanding environments requiring durable, tactile, and illuminated control interfaces. Its robust build quality and compliance with global standards make it a reliable component in professional electrical and automation systems.
