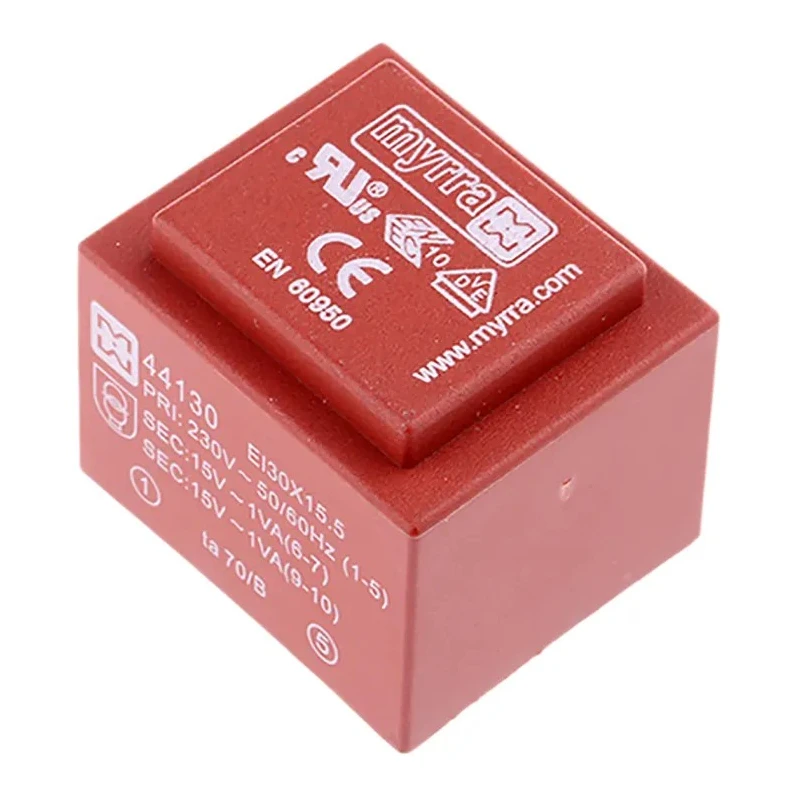

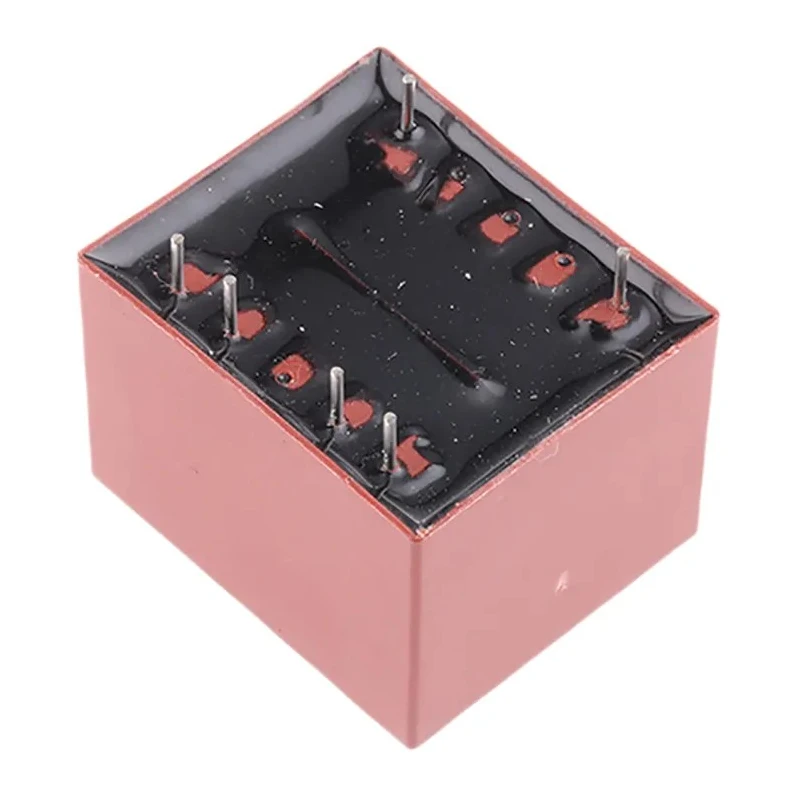

Myrra Professional Safety 15 V ac 2 Output Through Hole PCB Transformer 2 VA 44130

Name: Myrra Professional Safety 15 V ac 2 Output Through Hole PCB Transformer 2 VA 44130
Brand: Myrra
SKU: 302524
Price: 7.3 USD
Availability: InStock



Category PCB Transformer Brand Myrra Condition New

Specifications

Country of Origin	France
Brand	Myrra
Length	32.6mm
Model	44130
Depth	27.3mm
Gross Weight	100g
Width	27.6mm
Mount Type	Through Hole
Minimum Operating Temperature	70°C
Number of outputs	2
Winding Type	Dual Secondary, Single Primary
Primary Voltage	230 V ac
Secondary Voltage	15 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
PCB Transformer Current	67mA
Myrra 15 V ac 2 Output Through Hole PCB Transformer 2.5 VABrand	Myrra

Key Features

Offers a secondary voltage of 15 V ac with dual secondary windings.
Designed with a primary voltage rating of 230 V ac for standard European grids.
Compact dimensions sized 32.6mm length, 27.6mm width, and 27.3mm depth.
Robust construction with through-hole mounting type for secure PCB fixings.
Operates reliably at frequencies between 50Hz and 60Hz.
Supports a maximum PCB transformer current of 67mA under nominal load.
Encapsulated using vacuum-filled resin for enhanced durability and aging resistance.
Features an EI 30 type professional safety transformer with insulation above 4000V.

Product Description

Myrra 44130 is a professional safety PCB transformer rated at 15 V ac secondary voltage with 2 outputs and 2 VA power, designed for through-hole mounting on printed circuit boards. This transformer is part of the EI 30 series, providing reliable electrical isolation with an insulation level above 4000 V, ensuring safety and long-term stability.

Operating at primary voltage 230 V ac and frequency range of 50 to 60 Hz, it supports nominal secondary load currents of up to 67mA. The transformer is vacuum-filled with resin to protect against material aging and is inherently short circuit proof. Its encapsulated design and use of non-flammable, self-extinguishing materials add to its robustness for industrial applications.

With compact physical dimensions of 32.6mm length, 27.6mm width, and 27.3mm depth, and weighing just 100 grams, it is ideal for integration into electronic components, power supply units, and other PCB-based circuits requiring safe voltage transformation.

This transformer complies with IEC 742, UL 94-V0, UL, and VDE standards, ensuring adherence to international quality and safety guidelines. It is manufactured in France under strict automated controls, guaranteeing consistent performance and build quality. Fixing screws are not provided.

Secondary voltage of 15 V ac with dual secondary, single primary winding configuration. Primary voltage 230 V ac suitable for European mains operation. Through-hole mounting for easy PCB integration. Encapsulated transformer with vacuum-filled resin for durability.

Operating frequency range from 50 Hz to 60 Hz. Weight approximately 100 g, compact and light. Conforms to IEC 742, UL 94-V0 standards for electrical safety. Manufactured in France ensuring high quality. Professional safety transformer with insulation above 4000 V.

Designed for industrial, laboratory, and electronic power supply applications. Explore the range of professional PCB Transformers and power supplies available at EnvMart to find reliable components suited for your electronic design and manufacturing needs.
