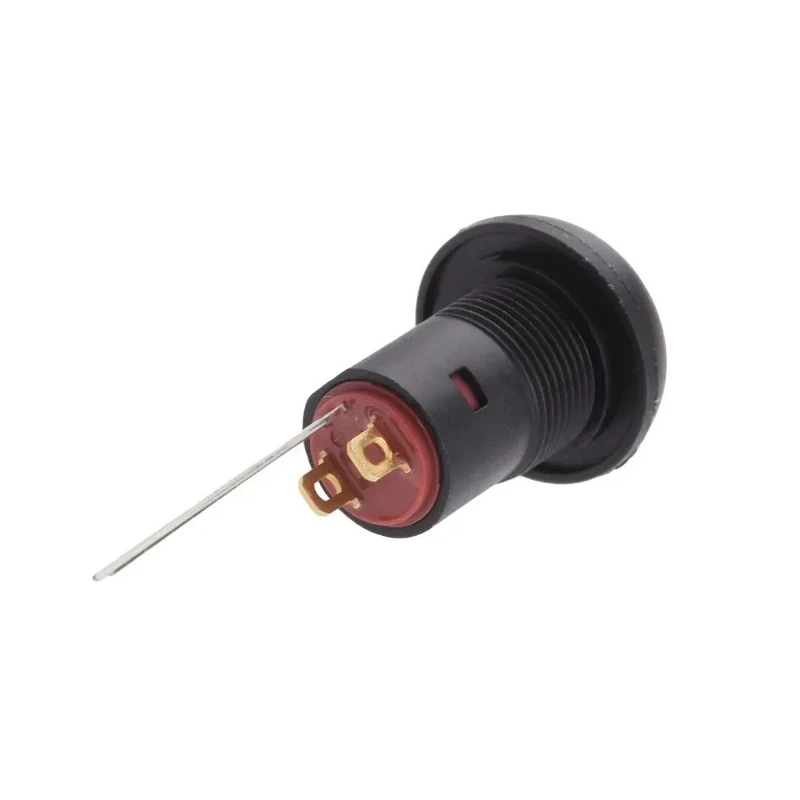

RS PRO Illuminated Miniature Push Button Switch, Latching, PCB Mount, 13.6 mm Cutout, SPST, White LED, IP67, 24 V 820-7555
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 820-7555 |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder Lug |
| LED Colour | White |
| Switch Operation | Latching |
| Actuator Colour | Blue |
| Contact DC Voltage | 24V dc |
| Actuator Style | Cap |
| Switch Contact Current | 100mA |
| Contact AC Voltage | 30V ac |
Key Features
- The switch features a blue actuator colour with a cap style actuator.
- It operates with a Single Pole Single Throw (SPST) configuration for reliable circuit control.
- Illuminated with a white LED to indicate circuit power status clearly.
- Designed for panel cutouts of 13.6 mm diameter for precise installation.
- Rated IP67 for dust-tight and water immersion protection up to 1 metre for 15 minutes.
- Suitable for PCB mounting via solder lug terminals for ease of integration.
- Contact voltage ratings are 24 V dc and 30 V ac with a maximum current of 100 mA.
- Maximum operating temperature reaches 85°C for resilience in industrial environments.
Product Description
RS PRO 820-7555 Illuminated miniature push button switch offers reliable latching operation with a single pole single throw contact configuration. This switch is designed for PCB mounting with a 13.6 mm diameter panel cutout and illuminated by a white LED to signal circuit status clearly during operation.
Its IP67 rating provides excellent protection against dust ingress and water immersion up to 1 meter for approximately 15 minutes, ensuring durability in challenging industrial and manufacturing environments. The blue actuator color with a cap style also provides visual and tactile control benefits.
The switch is rated for contact voltages of 24 V dc and 30 V ac and can handle a maximum switch contact current of 100 mA, making it suitable for low power control circuits. The gold-plated silver contacts boost conductivity and corrosion resistance, enhancing long-term reliability.
Operating temperature of up to 85°C ensures that it functions well within demanding industrial applications such as commercial electronics facilities and machinery control panels. The solder lug terminal type also facilitates secure and reliable mounting on printed circuit boards.
The switch has a blue actuator color with a cap style. It employs a Single Pole Single Throw (SPST) switch operation with latching functionality. Illumination is provided by a white LED indicator. An IP67 rating protects against dust and water ingress.
The panel cutout diameter requirement is 13.6 mm for installation. Contact ratings include 24 V dc and 30 V ac at 100 mA. Gold-plated silver contacts offer high conductivity and corrosion resistance. Designed for PCB mounting with solder lug terminals.
Maximum operating temperature up to 85°C ensures durable function. Widely used in commercial and industrial electronic control situations.
This RS PRO miniature push button switch 820-7555 is ideal for industrial, commercial, and manufacturing applications requiring a robust, illuminated, and weatherproof control switch. Explore more Push Button Switches and electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Single Throw (SPST) contact configuration, providing reliable circuit control.
The maximum operating temperature for this switch is 85°C, making it suitable for various industrial environments.
This switch requires a panel cutout size of 13.6 mm for proper installation.
The switch has an IP67 rating, which means it is dust-tight and can withstand water immersion up to 1 meter for approximately 15 minutes.
It uses solder lug terminals for PCB mounting, facilitating secure and reliable connections.
This model is rated for contact voltages of 24 V dc and 30 V ac.
The maximum switch contact current for this unit is 100 mA.
The actuator color of this switch is blue, and it features a cap style actuator.
Yes, it is illuminated by a white LED, which indicates the circuit power status clearly during operation.
This switch operates with a latching functionality, allowing it to maintain its position until pressed again.
The country of origin for this switch is China.
This switch is widely used in commercial and industrial electronic control situations, particularly in machinery control panels.
