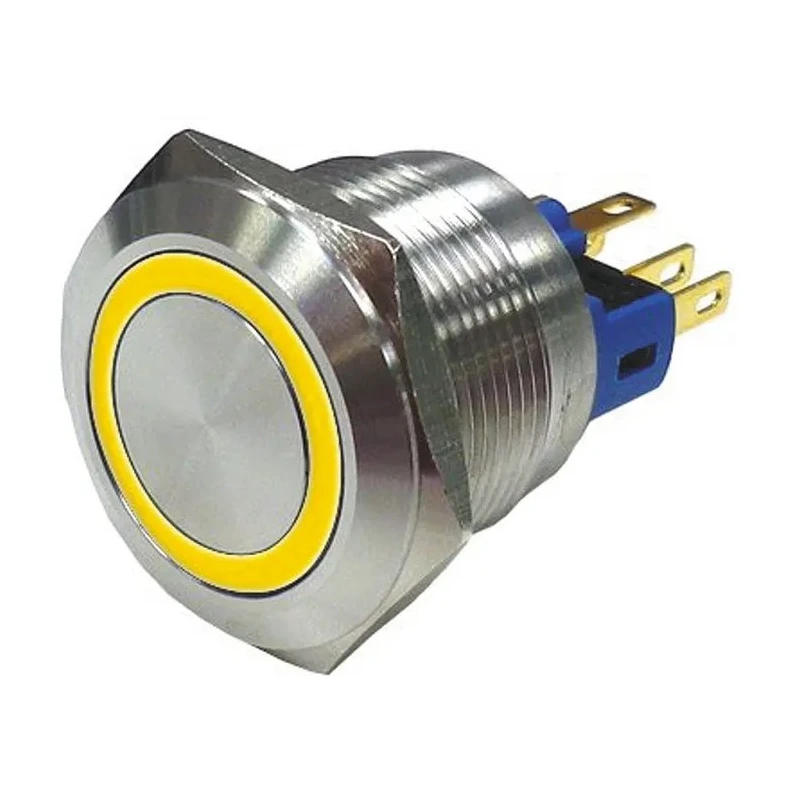

RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 22 mm Cutout, SPDT, Yellow LED, IP65, IP67, 250 V AC 811-8522

Name: RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 22 mm Cutout, SPDT, Yellow LED, IP65, IP67, 250 V AC 811-8522
Brand: RS PRO
SKU: 315713
Price: 30.24 USD
Availability: InStock



Category Push Button Switch Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Model	811-8522
IP Rating	IP65, IP67
Mount Type	Panel
Contact Configuration	SPDT
Switch Configuration	SPDT
Minimum Operating Temperature	-20°C
Panel Cutout Size	22 mm
Terminal type	Quick Connect
Standards/Approvals	RoHS
LED Colour	Yellow
Switch Operation	Latching
Actuator Colour	Silver
Contact DC Voltage	250V
Actuator Style	Flat
Switch Contact Current	5A
Contact AC Voltage	250V ac

Key Features

The switch operates with a latching mechanism for reliable user control.
Features stainless steel actuator with a flat silver color.
Supports panel mounting with a 22 mm cutout for secure installation.
Equipped with a yellow illuminated LED for clear status indication.
Rated for contact voltage of 250 V AC and current up to 5A.
Designed with IP65 and IP67 front panel protection for water and dust resistance.
Constructed with durable materials including copper alloy and silver-plated contacts.
Offers an operating life of 50,000 cycles with a maximum 4N operating force.

Product Description

RS PRO 811-8522 is an illuminated push button switch designed for panel mounting applications requiring a 22 mm cutout. This latching switch has a SPDT contact configuration and comes with a yellow LED for illumination, making it ideal for clear visual indication in control panels. The actuator is flat and silver colored, constructed from robust stainless steel for durability in demanding industrial environments.

With an IP rating of IP65 and IP67, the switch ensures protection against water ingress and dust, suitable for outdoor or exposed settings such as public kiosks and open dashboards. The contacts utilize copper alloy with silver plating to maintain reliable conductivity and longevity under operational stress.

This push button switch supports a contact AC voltage rating of 250 V and a contact current of 5A, ensuring compatibility with a wide range of electrical control circuits. It has an operating life of 50,000 cycles and requires a maximum operating force of 4N, providing a balance of durability and user comfort.

The compact 22 mm panel cutout size allows easy integration in electrical panels and automation systems. Quick connect terminal types facilitate straightforward electrical connections, improving installation efficiency.

This RS PRO switch is RoHS compliant and manufactured in Taiwan, Province Of China, representing high-quality standards trusted in industrial, electrical, and automation applications. Its robust construction and enhanced protection ratings make it highly suitable for manufacturing, construction, HVAC, and other industrial setups requiring reliable push button controls.

The switch operation is latching for steady control. Flat stainless steel actuator ensures anti-vandal resistance. Yellow LED illumination for visible operation status. Panel mount with 22 mm cutout for ease of installation.

Contact rating of 250 V AC at 5 A supports versatile applications. Dual IP65 and IP67 front panel protection for water and dust resistance. Robust build with copper alloy and silver-plated contacts. Operating temperature down to -20°C suitable for varied environments.

RoHS compliant ensuring environmental safety. Explore more in Push Button Switches at EnvMart for quality electrical components.
