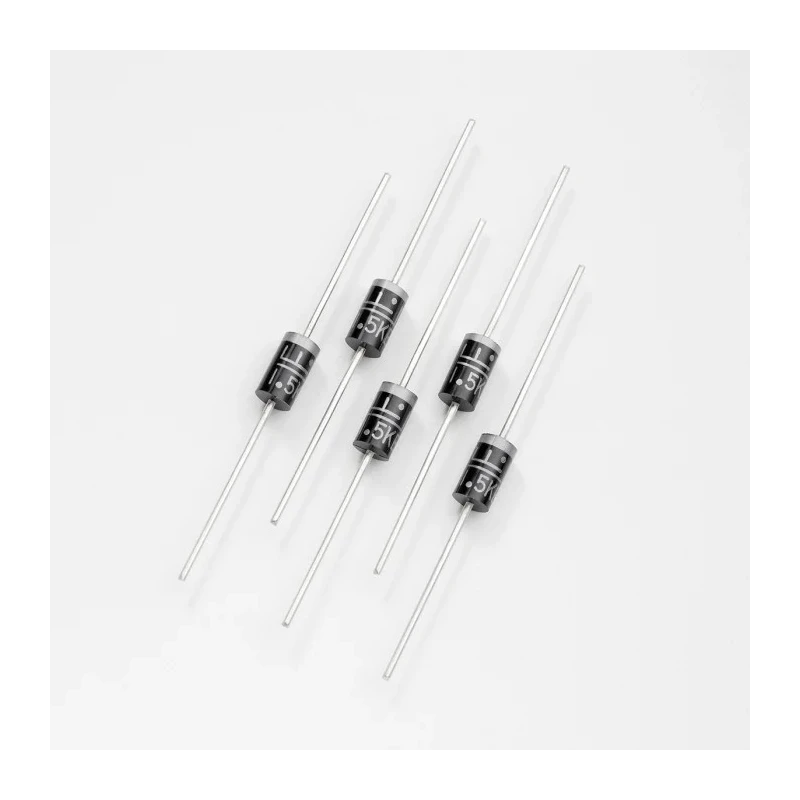

Littelfuse 1-Element Bi-Directional TVS Diode 1.5 kW Peak Pulse Power 2-Pin DO-201 Package 1.5KE36CA

Free Delivery in India | Lowest Global Shipping Charges

Littelfuse 1-Element Bi-Directional TVS Diode 1.5 kW Peak Pulse Power 2-Pin DO-201 Package 1.5KE36CA

Name: Littelfuse 1-Element Bi-Directional TVS Diode 1.5 kW Peak Pulse Power 2-Pin DO-201 Package 1.5KE36CA
Brand: LITTELFUSE
SKU: 302431
Price: 0.6 USD
Availability: InStock



Category TVS Diode Brand LITTELFUSE Condition New

Specifications

Country of Origin	India
Diameter	5.3mm
Brand	Littelfuse
Length	9.5mm
Model	1.5KE36CA
Mount Type	Through Hole
Series	1.5KE
Maximum Operating Temperature	175°C
Package Type	DO-201
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	49.9V
Diode Configuration	Single
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	34.2V
Maximum Reverse Stand-off Voltage Vwm	30.8V
Peak Pulse Power Dissipation Pppm	1.5kW
Test Current It	1mA
Maximum Peak Pulse Current Ippm	30.5A
Maximum Reverse Leakage Current	1μA
Fast response time	typically less than 1.0ps from 0 Volts to BV min
1500W peak pulse capability at 10/1000μs waveform, repetition rate (duty cycles)	0.01%
VBR @ TJ VBR@25°C x (1+αT x (TJ - 25)) (αT	Temperature Coefficient, typical value is 0.1%)

Key Features

Single diode configuration with bi-directional voltage suppression.
Peak pulse power dissipation of 1.5 kW at 10/1000μs waveform.
Through hole mount with DO-201 package type.
Clamping voltage at 49.9 V and a breakdown voltage minimum of 34.2 V.
Operates in temperature range from -55°C to 175°C ensuring reliability under harsh conditions.
Fast response time typically less than 1.0 ps from 0 V to breakdown voltage minimum.
Low leakage current of 1 μA maximum ensuring energy efficiency.
Lead-free, halogen free matte tin plating complying with environmental standards.

Product Description

Littelfuse 1.5KE36CA is a 1-element bi-directional Transient Voltage Suppression (TVS) diode with peak pulse power dissipation of 1.5 kW, designed to protect sensitive electronic equipment from transient voltage events such as lightning or switching surges. Featuring a single diode configuration and a DO-201 through-hole package with 2 pins, this component reliably clamps transient voltages within a maximum clamping voltage of 49.9 V and a minimum breakdown voltage of 34.2 V.

This TVS diode guarantees fast response time typically less than 1.0 ps, ensuring immediate suppression of voltage spikes to safeguard circuits. It operates efficiently across a wide temperature range of -55°C to 175°C, suitable for harsh industrial environments. The device offers low reverse leakage current of 1 μA maximum and withstands a maximum peak pulse current of 30.5 A, making it ideal for high-performance electronic and industrial applications.

The package is lead-free with a matte tin finish, compliant with halogen-free and Pb-free standards, ensuring environmental safety. Packing dimensions allow easy mechanical integration with a compact length of 9.5 mm and diameter of 5.3 mm with a lead length suitable for standard PCB layouts.

Single diode, bi-directional configuration suitable for transient voltage suppression. Peak pulse power rating of 1.5 kW at 10/1000μs waveform with 0.01% duty cycle. Mount type: Through hole with DO-201 package for robust connections.

Operating temperature range from -55°C to 175°C for high reliability. Fast response with under 1.0 picosecond reaction time to voltage spikes. Low incremental surge resistance and minimal leakage current. Lead-free, halogen-free matte tin surface plating.

Dimensions: Length 9.5 mm, Diameter 5.3 mm, and lead length 9.5 mm. ESD protection for enhancing industrial and electronic product durability.

This TVS diode is widely used in applications involving industrial electronics, power supplies, telecommunications, and automotive electronics, providing superior protection against overvoltage transients. Its robust construction and fast response time make it essential in industrial, manufacturing, and laboratory environments where transient voltage suppression is critical.

Explore additional high-quality semiconductor components and TVS Diodes on EnvMart for your electronic protection solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Littelfuse 1.5KE36CA has a peak pulse power dissipation of 1.5 kW at a 10/1000μs waveform.

The minimum breakdown voltage for this TVS diode is 34.2 V.

The maximum clamping voltage of this diode is 49.9 V.

This model operates within a temperature range of -55°C to 175°C.

It features a 2-pin configuration in a DO-201 package, designed for through-hole mounting.

The maximum reverse leakage current is 1 μA.

The response time is typically less than 1.0 ps from 0 V to the minimum breakdown voltage.

The diode has a length of 9.5 mm and a diameter of 5.3 mm.

It can withstand a maximum peak pulse current of 30.5 A.

This model is suitable for protecting sensitive electronic equipment in industrial electronics, power supplies, telecommunications, and automotive electronics.

The diode is packaged in a DO-201 through-hole configuration with lead-free, halogen-free matte tin plating.
