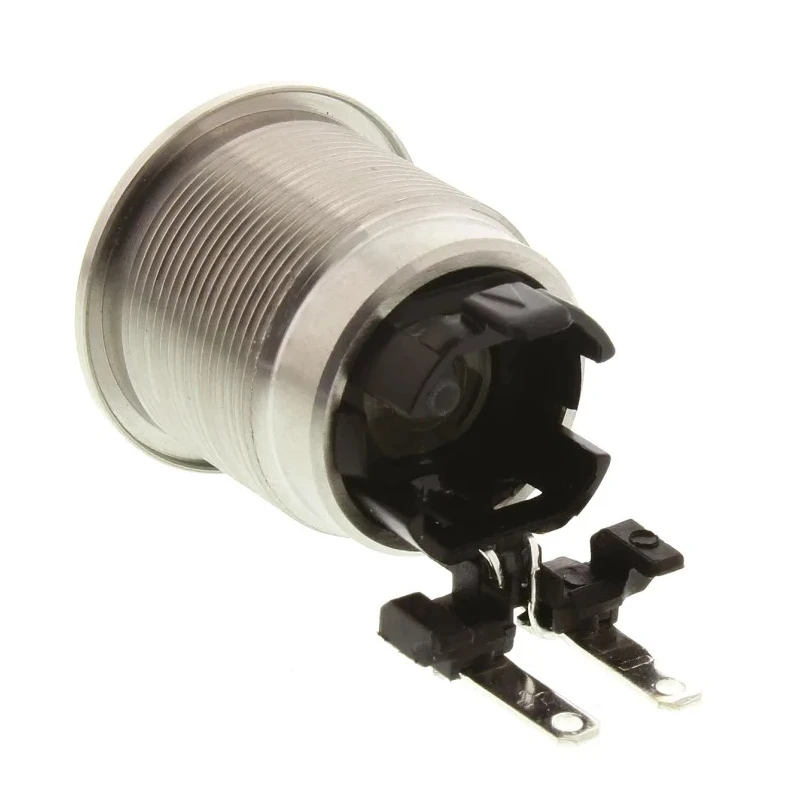

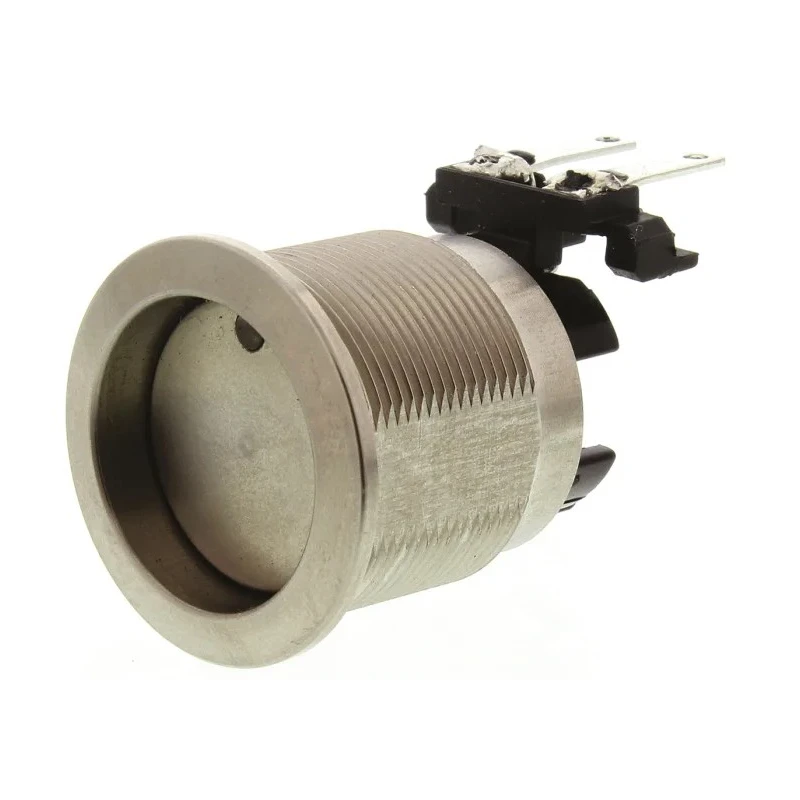

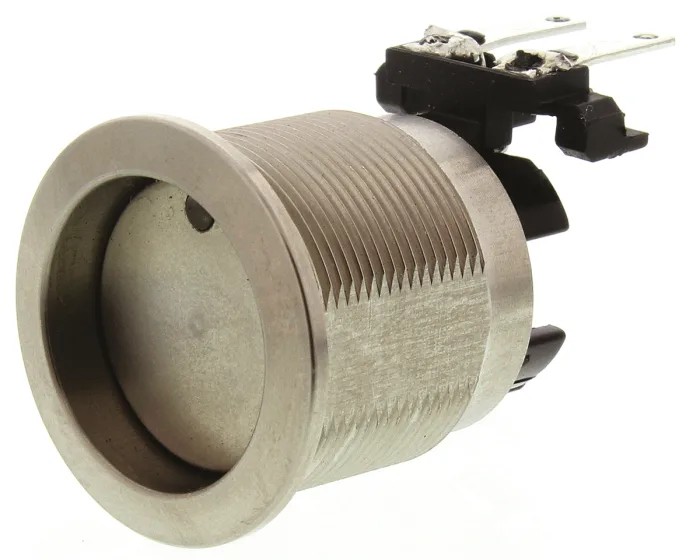

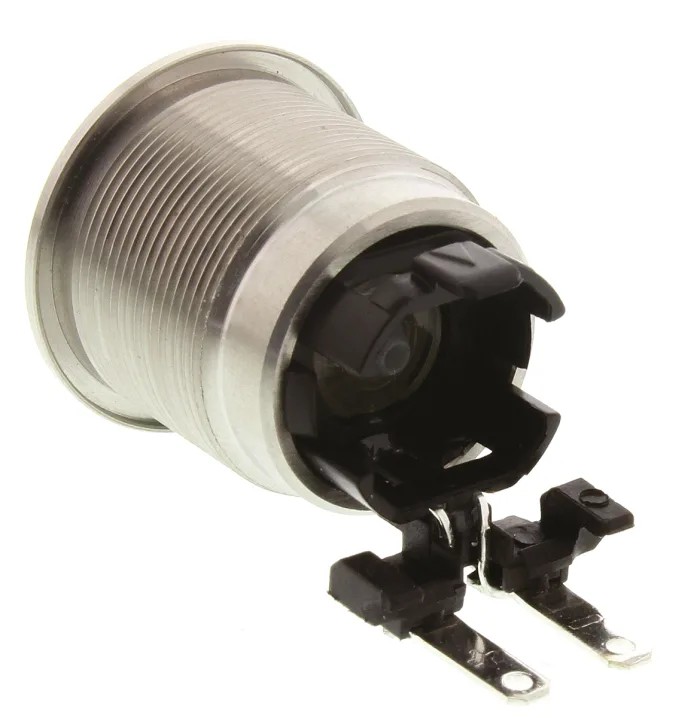

Schurter MSM LA 19 Series Illuminated Push Button Switch, Latching, Panel Mount, 19 mm Cutout, DPDT, Red 1241.6823.1121000

Schurter 1241.6823.1121000 MSM LA 19 Series illuminated push button switch is engineered for panel mounting applications, featuring a robust and durable design for industrial control and automation systems.

This push button switch offers a 19 mm panel cutout, facilitating integration into various electrical panels. Its latching operation enables push-on, push-off functionality with reliable DPDT (double pole double throw) contact configuration, ideal for switching multiple circuits.

The switch is illuminated with a red LED, providing clear visual status indication, making it suitable for control panels requiring immediate operational feedback. It supports a contact DC voltage rating of 30 V and AC voltage rating of 250 V AC, catering to diverse electrical standards.

Built to withstand demanding environments, the MSM LA 19 series offers IK07 shock resistance, IP00 and IP64 protection ratings ensuring resistance to dust ingress and splashing water. The stainless steel housing and natural colored round actuator are designed for durability and ergonomic operation.

Additional features include a 10 N operating force, 4.5 mm travel, and protrusion of 3.7 mm above the panel when off, combined with quick connect terminals for ease of installation.

The switch lifecycle extends to 150,000 mechanical operations ensuring long-term reliability in industrial, manufacturing, electrical, and automation applications. The switch features a 19 mm panel cutout size providing easy integration into control panels.

Designed with DPDT contact configuration ensuring reliable double pole double throw switching. Provides robust performance with IP00 and IP64 ingress protection ratings for dust and splash resistance. Operates at a contact DC voltage of 30 V and AC voltage of 250 V, suitable for varied electrical applications.

The switch actuator style is round with a natural color and a 10 mm height protrusion above the panel. Designed for harsh environments with IK07 shock resistance and an operating temperature range of -25°C to 85°C. The switch offers long mechanical life with up to 150,000 operations and quick connect terminal types.

Red LED illumination improves switch status visibility with a 180° viewing angle for ease of monitoring. Approved to CSA, IEC, RoHS, and UL standards ensuring safety and compliance.

This Schurter illuminated push button switch is widely used in industrial automation, electrical control panels, manufacturing machinery, HVAC systems, and water treatment plants where robust and clear control signals are essential.
