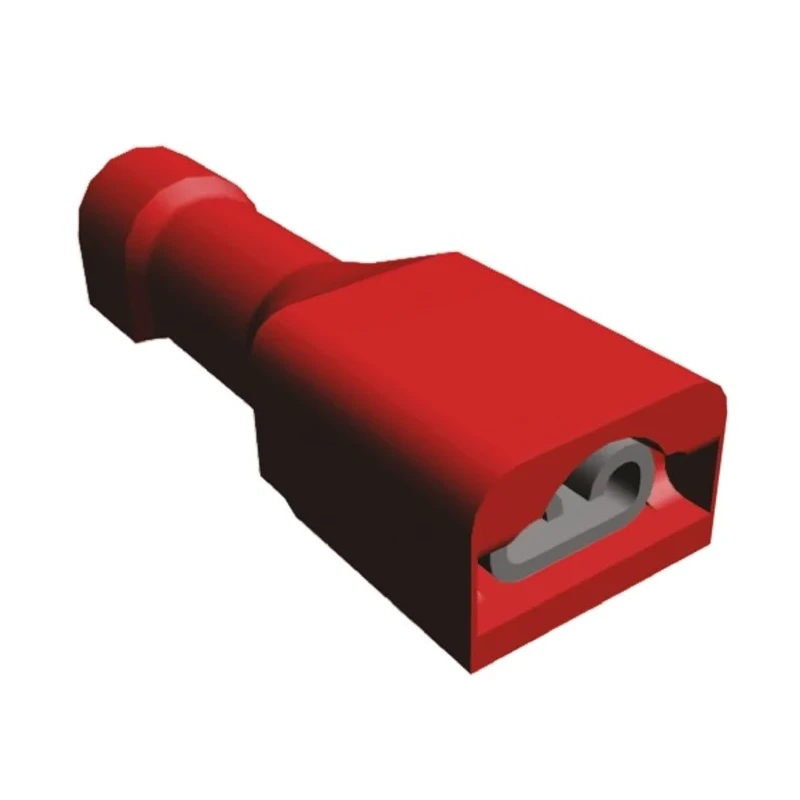

TE Connectivity Ultra-Fast .110 Red Insulated Female Spade Connector, Crimp Termination, 2.79 x 0.8 mm Tab Size 2-520273-2
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Orientation | Straight |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 0.735in |
| Contact Material | Brass |
| Series | Ultra-Fast .110 |
| Termination Type | Crimp |
| Insulation Material | Polyamide 66 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Tab Width | 2.8mm |
| Tab Thickness | 0.81mm |
| Tab Size | 2.79 x 0.8 mm |
Key Features
- Designed for fast and reliable electrical connections.
- Insulated with red polyamide 66 for protection against shocks and shorts.
- Features a straight orientation female spade contact with tin-plated brass material.
- Suitable for wire sizes 0.3 mm² to 0.8 mm².
- Tab dimensions of 2.79 x 0.8 mm with 2.8 mm width and 0.81 mm thickness.
- Overall length of 0.735 inches ensures compact installation.
- Compatible with FASTON 110/125 series ultra-fast terminals.
- Made in the United States ensuring high-quality standards.
Product Description
TE Connectivity 2-520273-2 Ultra-Fast .110 Red Insulated Female Spade Connector is a high-quality crimp terminal designed for reliable and fast electrical connections in industrial, electronic, and power applications. It provides insulated protection to prevent shocks and electrical short circuits.
The connector features a red insulated housing made from UL 94 V-2 type 6/6 nylon (polyamide 66), which fully encloses the tin-plated brass female spade contact. This recessed design accommodates 600V applications safely.
It accepts stranded, solid, and fused wires from 22 AWG to 18 AWG (0.3 mm² to 0.8 mm²) and provides a 2.79 x 0.8 mm tab size with 2.8 mm width and 0.81 mm thickness, compatible with FASTON 110/125 series terminals. The straight orientation and compact overall length of 0.735 inches allow ease of installation in tight spaces.
This component is suitable for use in electrical equipment manufacturing, assembly, maintenance, and repair in industrial, laboratory, and commercial sectors. Its robust construction and quality compliance make it ideal for demanding applications.
Fast and reliable crimp termination for wire sizes 22 AWG to 18 AWG. Red insulated housing provides shock and short circuit protection. Tin-plated brass female spade contact ensures excellent conductivity and corrosion resistance.
Compact size with overall length of 0.735 inches for versatile installation. Compatible with FASTON 110/125 series Ultra-Fast terminals. Made in the United States, meeting high manufacturing standards. Suitable for industrial, laboratory, HVAC, manufacturing, and commercial use.
Explore more connectors and related electrical components at EnvMart for comprehensive solutions to your wiring and assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes ranging from 22 AWG to 18 AWG, which corresponds to a cross-sectional area of 0.3 mm² to 0.8 mm².
The tab dimensions are 2.79 x 0.8 mm, with a width of 2.8 mm and a thickness of 0.81 mm.
The overall length of this spade connector is 0.735 inches.
The contact material is tin-plated brass, which ensures excellent conductivity and corrosion resistance.
It features a crimp termination type, designed for fast and reliable electrical connections.
Yes, it has a red insulated housing made from polyamide 66, providing protection against shocks and short circuits.
This connector is part of the Ultra-Fast .110 series, compatible with FASTON 110/125 series terminals.
The connector has a straight orientation, allowing for ease of installation in various applications.
It is manufactured in the United States, ensuring adherence to high manufacturing standards.
This model is suitable for use in electrical equipment manufacturing, assembly, maintenance, and repair in industrial, laboratory, and commercial sectors.
The insulation material used for this connector is polyamide 66, which is known for its durability and electrical insulation properties.
This connector is a female spade connector, designed to mate with a compatible male spade terminal.
