| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX8850S-C9V1-QYL |
| Mount Type | Surface |
| Series | BZX8850S |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 50μA |
| Maximum Reverse Leakage Current | 100nA |
| Nominal Zener Voltage Vz | 9.1V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 100Ω |
| Typical Voltage Temperature Coefficient | 3.8mV/K |

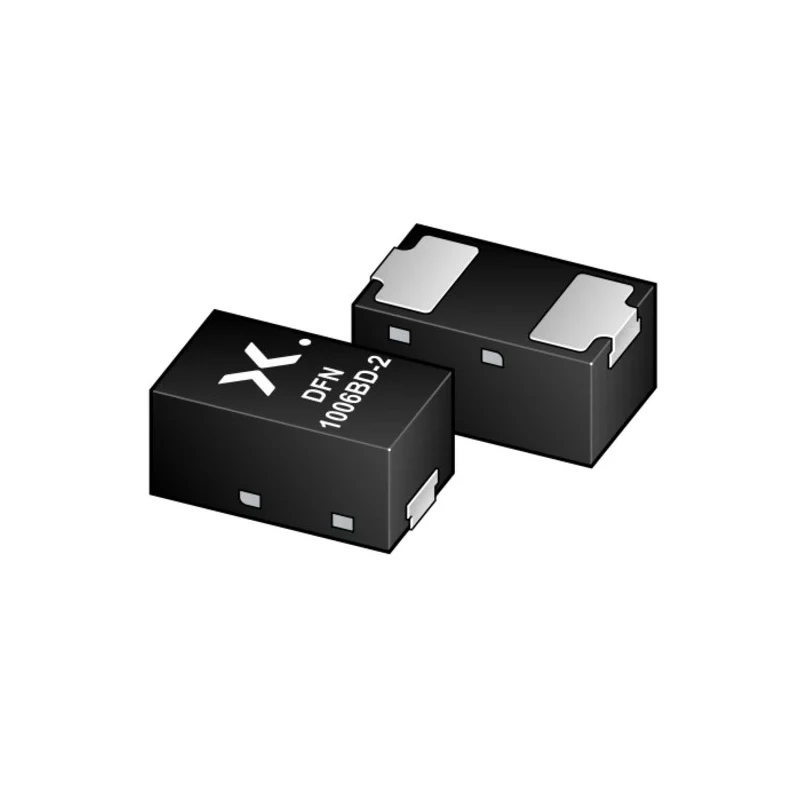

Nexperia BZX8850S-C9V1-QYL is a single Zener diode featuring a nominal voltage of 9.1 V and power dissipation of 365 mW. This surface mount device uses a 2-pin DFN1006BD-2 package designed specifically for compact electronic applications requiring reliable voltage regulation.
The low-current voltage regulator diode operates over a temperature range of -55°C to 150°C and meets automotive-grade AEC-Q101 standards, making it suitable for automotive and industrial applications demanding high reliability and long-term stability.
Measured at a test current of 50 μA, it provides stable voltage regulation with a tight tolerance of ±5%, making it ideal for sensitive electronics and portable battery-powered circuitry.
Its ultra-compact physical dimensions of 1 mm length and 0.47 mm height facilitate integration into high-density PCB layouts. The device has a maximum Zener impedance of 100 Ω and a very low maximum reverse leakage current of 100 nA, which minimizes power loss and heat generation.
This diode is particularly recommended for industrial, automotive, consumer electronics, and power management circuits where precise voltage regulation and rugged operational conditions are essential.
The diode configuration is single-element type with a voltage regulator function. Surface mount device with plastic package featuring side-wettable flanks. Nominal Zener voltage is 9.1 V with 5% voltage tolerance. Maximum power dissipation of 365 milliwatts suitable for low power applications.
Operates efficiently between -55°C and 150°C temperature range. Pin count is 2, formatted in a DFN1006BD-2 package. Test current for rating is 50 μA providing low bias current characteristics. Typical voltage temperature coefficient is 3.8 mV/K ensuring voltage stability under temperature changes.
The package contents comprise a single Zener diode device in DFN1006BD-2 surface mount format. Explore more Nexperia Zener Diodes and semiconductor components in our Electronics & Electricals category for industry-leading quality and performance on EnvMart.
