| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX8850S-C7V5-QYL |
| Mount Type | Surface |
| Series | BZX8850S |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 50μA |
| Maximum Reverse Leakage Current | 100nA |
| Nominal Zener Voltage Vz | 7.5V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 80Ω |
| Typical Voltage Temperature Coefficient | 2.5mV/K |

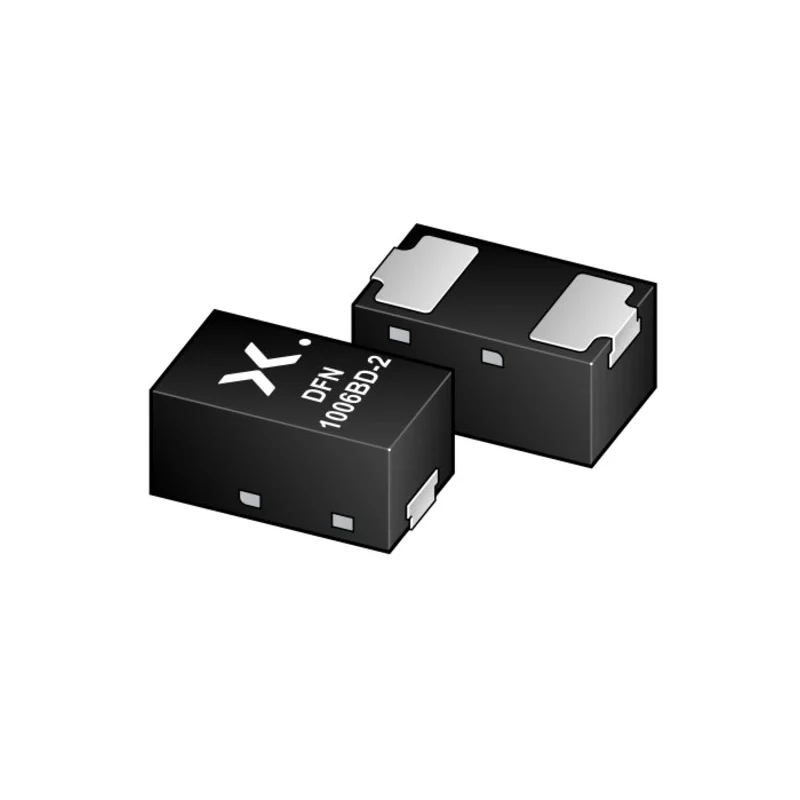

Nexperia BZX8850S-C7V5-QYL is a precision Zener Diode voltage regulator designed for electronic and automotive applications requiring stable voltage feedback and regulation.
This device features a nominal zener voltage of 7.5 V, with a maximum power dissipation of 365 milliwatts. It employs a single diode element housed within an ultra-small DFN1006BD-2 surface mount package, providing space-saving benefits on compact circuit boards.
The diode is specified with a 5% voltage tolerance, ensuring reliable voltage regulation under varying conditions. Its low test current rating of 50 microamperes makes it suitable for low-bias and portable battery-powered devices.
Robust operating temperature range from minus 55 degrees Celsius to 150 degrees Celsius qualifies it for automotive-grade and harsh environment usage following the AEC-Q101 standard. Maximum zener impedance of 80 ohms and low reverse leakage current of 100 nanoamperes contribute to efficient operation and minimal power losses.
With a 2-pin configuration and a tiny 1 mm length and 0.47 mm height package, this diode suits applications with demanding size constraints. Typical use cases include voltage reference, voltage regulation in power supplies, and protection circuits in industrial, automotive, and general electronics sectors.
This Zener diode supports stable voltage regulation in automotive and industrial environments. The small surface-mount package enables use in compact electronic assemblies. Suitable for low current applications and portable device circuitry.
Complies with automotive AEC-Q101 qualification for enhanced reliability. Offers low leakage current and high impedance for efficient operation. The device withstands extreme temperature variations from -55°C to 150°C. Ideal for power regulation and voltage reference in embedded systems.
