| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX8850S-C62-QYL |
| Mount Type | Surface |
| Series | BZX8850S |
| Maximum Operating Temperature | 150°C |
| Working voltage range | nominal 1.8 V to 75 V |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 50μA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 62V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 450Ω |
| Typical Voltage Temperature Coefficient | 58.8mV/K |

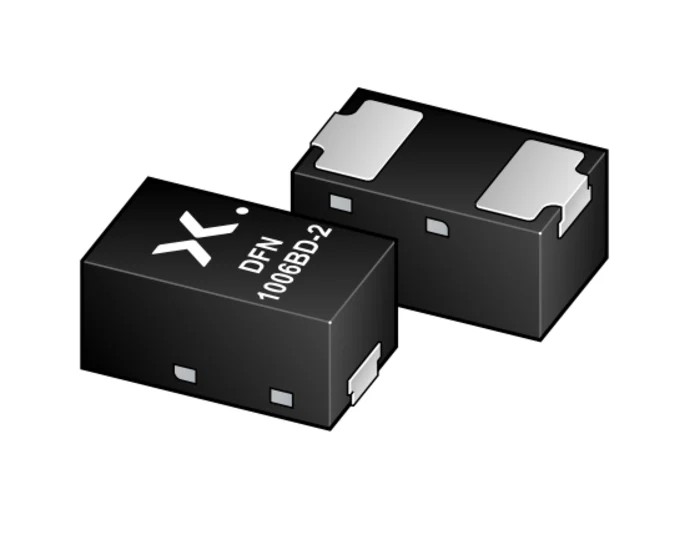

Nexperia BZX8850S-C62-QYL is a single Zener Diode designed as a low-current voltage regulator with a nominal voltage rating of 62 volts and a maximum power dissipation of 365 milliwatts. Encapsulated in a small leadless surface mount plastic DFN1006BD-2 (SOD882BD) package featuring side-wettable flanks, this component is ideal for compact electronic circuits.
The diode operates efficiently within a temperature range from -55°C to 150°C, making it suitable for a wide range of industrial, automotive, and consumer electronics applications. It is compliant with the automotive AEC-Q101 standard, ensuring high reliability under automotive environmental conditions.
Key technical features include a 5% voltage tolerance, 50 microamperes test current, and a maximum Zener impedance of 450 ohms. The device also exhibits a low reverse leakage current of 50 nanoamperes, which is advantageous in low-power and battery-operated equipment.
This Zener Diode serves as a voltage regulator in electronic circuits, stabilizing voltage levels and protecting sensitive components from voltage spikes. Its small form factor and surface mount design enable high-density PCB layouts in industrial, automotive, telecommunications, and consumer electronics manufacturing.
The diode configuration is single with a nominal 62V Zener voltage rating. Maximum power dissipation is 365mW ensuring robust voltage regulation. Surface mount DFN1006BD-2 package with two pins enables compact mounting. Operating temperature range from -55°C to +150°C supports diverse environmental conditions.
Low test current of 50μA suitable for low-bias, portable applications. Voltage tolerance is ±5%, providing stable voltage reference. Automotive compliant to AEC-Q101 for high reliability. Typical voltage temperature coefficient is 58.8mV/K.
Maximum reverse leakage current is only 50nA, minimizing power loss. Useful in industrial, automotive, telecommunications, and consumer electronics circuits. Discover the complete range of Nexperia semiconductor components and accessories at EnvMart for your electronic design and manufacturing needs.
