| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX8850S-C24YL |
| Mount Type | Surface |
| Series | BZX8850S |
| Maximum Operating Temperature | 150°C |
| Working voltage range | nominal 1.8 V to 75 V |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 50μA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 24V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 250Ω |
| Typical Voltage Temperature Coefficient | 18.4mV/K |

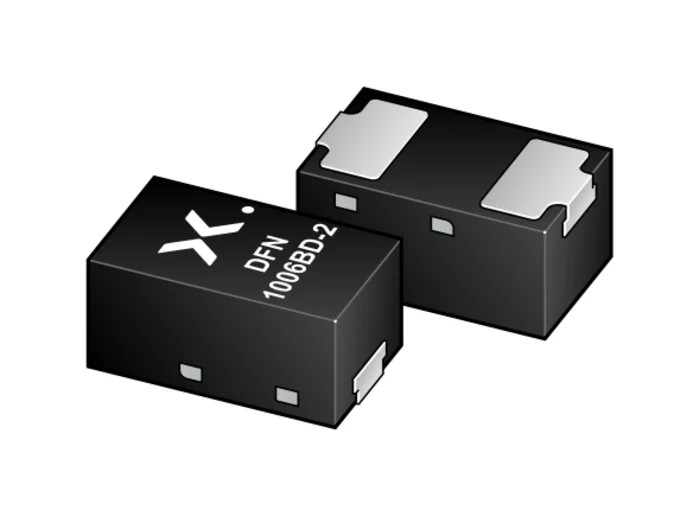

Nexperia BZX8850S-C24YL is a new, high-quality 24 V Zener Diode designed for voltage regulation applications. It features a single diode configuration in a compact DFN1006BD-2 surface mount package suitable for small and lightweight electronic assemblies.
This diode can dissipate up to 365 mW of power and operates effectively within a temperature range of -55°C to 150°C, making it suitable for harsh environments including automotive and industrial applications. It has a nominal Zener voltage of 24 V with ±5% tolerance ensuring precise voltage stability.
The device operates at a test current of 50 μA and features a very low maximum reverse leakage current of 50 nA, contributing to power efficiency in battery-powered and low bias circuits. Its typical voltage temperature coefficient is 18.4 mV/K, which provides predictable voltage behavior across varying temperatures.
The diode is compliant with the automotive standard AEC-Q101, confirming its reliability for automotive system integration. With compact physical dimensions of 0.47 mm height and 1 mm length, it is suitable for integration into miniature electronic devices requiring reliable voltage regulation.
Nominal Zener voltage of 24 V for stable voltage regulation. Surface mount DFN1006BD-2 package supports automated assembly. Maximum power dissipation of 365 mW fits low power applications. Low test current of 50 μA ideal for portable and battery powered designs.
Wide operating temperature range from -55°C to 150°C. Low maximum reverse leakage current reduces loss and heat. Complies with automotive industry reliability standards AEC-Q101. Compact size facilitates use in space-constrained circuits.
This Zener Diode is suited for electronics manufacturing, automotive voltage regulation, power management in low bias circuits, and industrial semiconductor subsystems. Explore our wide range of semiconductor products at EnvMart for reliable components that support efficient electronic designs and manufacturing outcomes.
