| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX8850S-C12-QYL |
| Mount Type | Surface |
| Series | BZX8850S |
| Maximum Operating Temperature | 150°C |
| Working voltage range | nominal 1.8 V to 75 V |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 50μA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 12V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 150Ω |
| Typical Voltage Temperature Coefficient | 6mV/K |

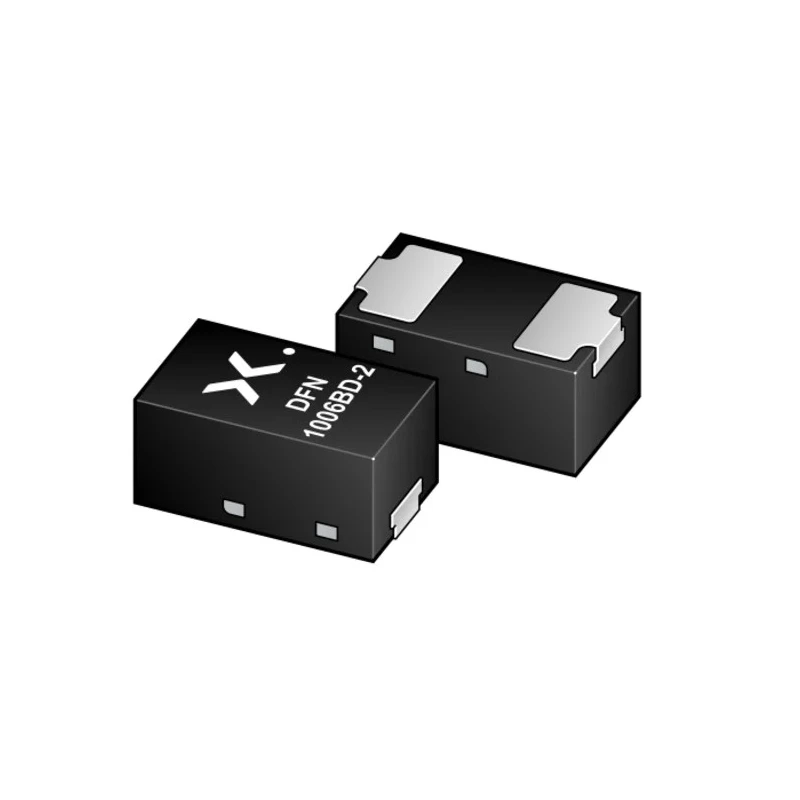

Nexperia BZX8850S-C12-QYL is a high-quality 12 V zener diode built for surface mount technology with a compact 2-pin DFN1006BD-2 package. It offers a maximum power dissipation of 365 milliwatts and a tolerant voltage regulation capability of ±5%, making it suitable for precision electronic circuit applications.
This diode features a single-element chip optimized for low-current operation, tested at 50 microamperes, making it highly appropriate for portable and battery-powered devices requiring stable voltage regulation. It operates reliably in temperatures ranging from -55°C to 150°C, enabling robust performance in harsh environments.
The device complies with the automotive AEC-Q101 standard, underscoring its suitability for automotive electronic systems. With a maximum reverse leakage current of only 50 nanoamperes and low zener impedance of 150 ohms, the diode ensures minimal losses and efficient voltage regulation.
Its ultra-small SOD882BD surface mount package with side-wettable flanks enables easy PCB assembly and excellent solder joint reliability. The typical voltage temperature coefficient of 6 mV/K assists in maintaining stable voltage across temperature fluctuations.
This Nexperia Zener Diode is ideal for industrial, automotive, and consumer electronic applications requiring compact, stable voltage regulation components. The device's ultra-compact form factor and reliability make it well suited to modern electronic circuit designs.
The diode operates at 12 V nominal zener voltage with 365 mW power dissipation. Single chip per device configuration for consistent performance. Surface mount package type DFN1006BD-2 with 2 pins. Wide operating temperature from -55°C to 150°C.
Voltage tolerance ±5% ensures circuit stability. Automotive standard AEC-Q101 compliant. Low leakage current of 50 nA and impedance of 150 Ω. Typical voltage temperature coefficient of 6 mV/K.
