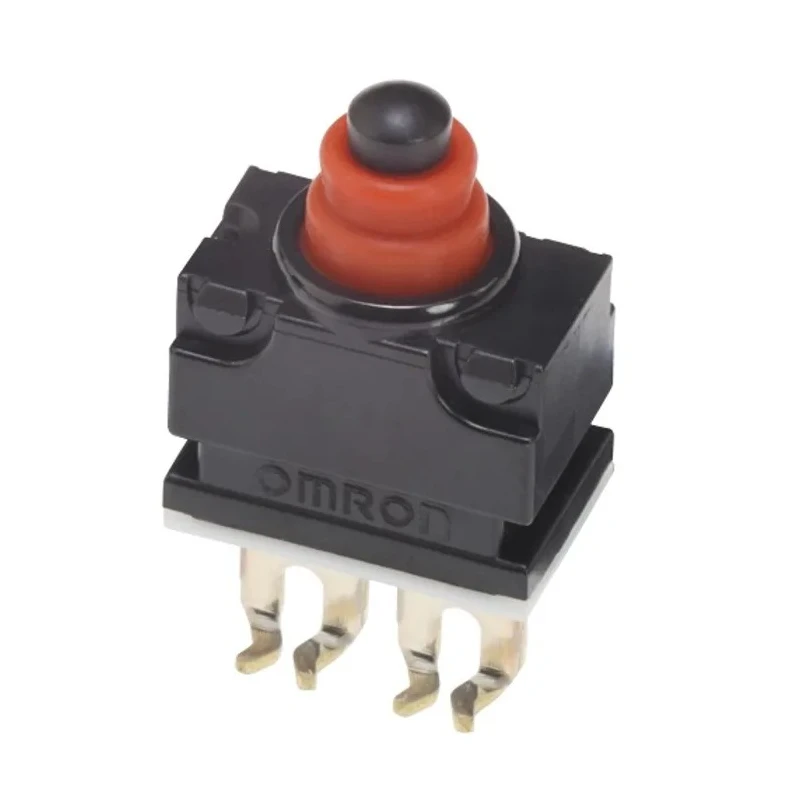

Omron Subminiature Micro Switch Pin Plunger, Quick Connect Terminal, 1mA, 13.5 V dc, SPST-NC, IP67 D2GW-A02D
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Model | D2GW-A02D |
| IP Rating | IP67 |
| Series | D2GW |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST-NC |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 13.5V dc |
| Switch Contact Current | 1mA |
Key Features
- Designed with an ultra subminiature form factor for compact applications.
- SPST-NC contact configuration ensures reliable single-pole single-throw normally closed switching.
- Supports switch contact current rating of 1mA and DC voltage of 13.5V.
- IP67 rated for protection against dust and water ingress in industrial environments.
- Operates reliably from -40°C up to 85°C operating temperature range.
- Features a sliding structure for quiet operation and high contact reliability for micro-loads.
- Bilateral symmetrical shape contributes to simple design integration and actuator versatility.
- Press-fit terminals enable solder-less connections simplifying PCB mounting.
Product Description
Omron D2GW-A02D subminiature micro switch is engineered for precise and reliable switching in industrial, automation, electrical, and instrumentation applications. This model features a pin plunger actuator type combined with quick connect terminals that allow easy assembly and maintenance without soldering.
The switch boasts a single-pole single-throw normally closed (SPST-NC) contact configuration ideal for control circuits requiring low current and voltage operation with rated switch contact current of 1mA and 13.5 V DC voltage. The IP67 enclosure rating offers excellent protection against dust and water ingress, supporting rugged operation in harsh environments.
Operating temperature range from -40°C to 85°C allows use in a wide variety of climates and industrial conditions. The symmetrical and slim design supports integration into compact control assemblies while the sliding actuator mechanism ensures quiet and smooth switching action with high contact reliability, especially for micro-load applications.
Press-fit terminals provide a solder-less connection method facilitating ease of installation on printed circuit boards. As part of the D2GW series, this model is RoHS compliant, evidencing Omron's commitment to environmental safety.
Ultra subminiature sealed switch construction. Pin plunger actuator for responsive actuation. Quick connect terminals for reliable, solder-less PCB connections. SPST-NC contact configuration suited for control circuitry.
IP67 rated for dust and water protection. Operating temperature range from -40°C to 85°C. Sliding structure ensures quiet operation with high contact reliability. Symmetrical slim shape for design simplicity and actuator versatility.
Meets RoHS requirements for hazardous substance control. Manufactured in China.
Typical applications include industrial automation, electrical control panels, instrumentation devices, and other environments requiring compact, reliable microswitches resistant to environmental factors. The Omron D2GW-A02D combines small size with robustness and precision switching, making it suitable for a wide range of industrial and laboratory uses.
Explore more precision switch components and accessories from trusted brands like Omron at EnvMart to enhance your automation and electrical control system setups.
Explore more products in our Micro Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single-pole single-throw normally closed (SPST-NC) contact configuration, suitable for control circuits requiring low current and voltage operation.
The Omron D2GW-A02D operates reliably within a temperature range of -40°C to 85°C, making it suitable for various industrial conditions.
The maximum DC voltage rating for this micro switch is 13.5V, allowing it to be used in low voltage applications.
This model can handle a switch contact current of up to 1mA, making it appropriate for micro-load applications.
It uses a pin plunger actuator type, which provides responsive actuation for reliable switching.
It features quick connect terminals, allowing for easy assembly and maintenance without the need for soldering.
This micro switch is manufactured in China, as indicated by its country of origin.
Yes, it is RoHS compliant, demonstrating adherence to regulations regarding hazardous substances.
Typical applications include industrial automation, electrical control panels, and instrumentation devices, particularly where compact and reliable microswitches are needed.
The switch features a sliding structure that ensures quiet operation while maintaining high contact reliability for micro-loads.
This model is part of the D2GW series, which includes various subminiature micro switches designed for precise switching.
