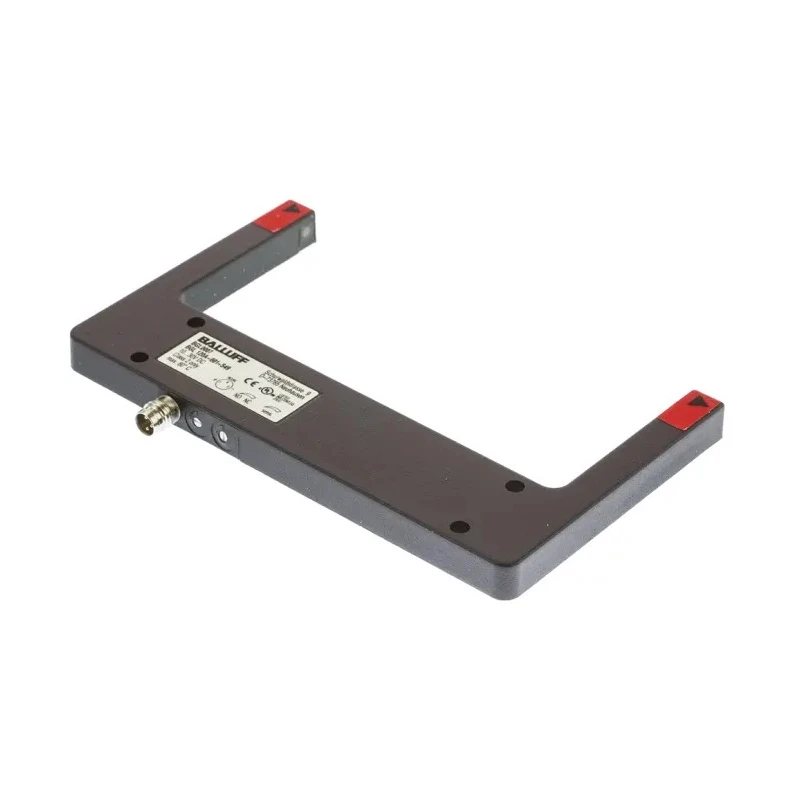

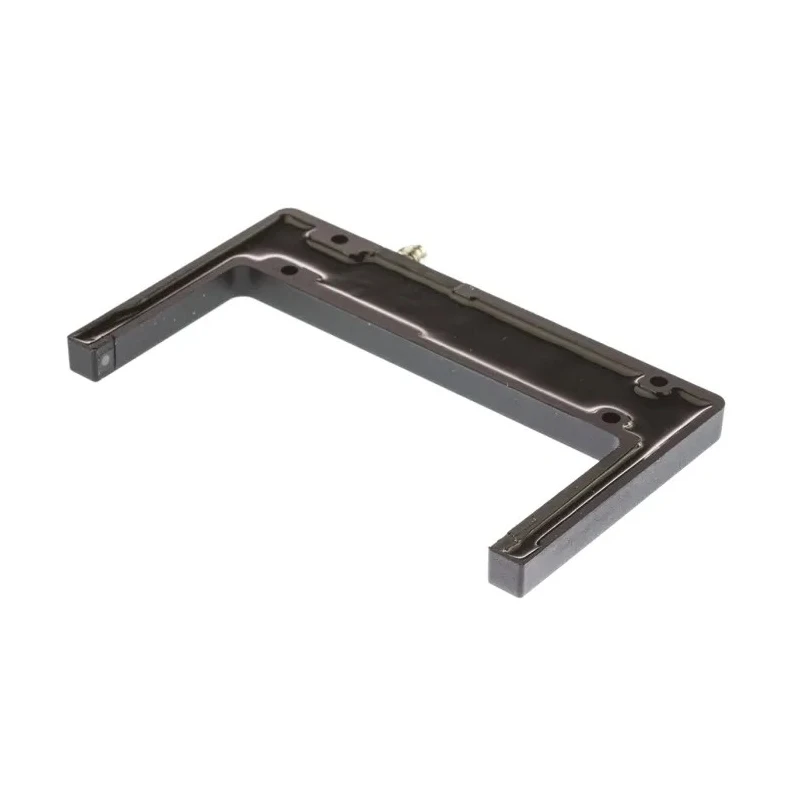

BALLUFF Through Beam Photoelectric Sensor Fork Style 120 mm Detection Range PNP Output IP67 BGL 120A-001-S49
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | BALLUFF |
| Light Source | LED |
| Detection range | 120 mm |
| Model | BGL 120A-001-S49 |
| IP Rating | IP67 |
| Housing Material | Anodised Aluminium |
| Output type | PNP |
| Series | BGL |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Maximum Current | 200mA |
| DetectIon Type | Through Beam |
| Terminal type | Connector |
| Interface Type | IO-Link |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE, IEC 60947-5-2 |
| Materials Detected | Glass |
| Sensor Style | Fork |
| BALLUFF Through Beam Photoelectric Sensor, Fork Sensor, 80 mm, PNP, IP67Brand | BALLUFF |
Key Features
- Fork style sensor with high precision detection suitable for glass material.
- Through beam detection type ensures reliable sensing performance.
- Robust anodised aluminium housing for durability and protection.
- Operates in temperature range from -10°C to 60°C with IP67 protection.
- Equipped with PNP output and IO-Link interface for flexible connectivity.
- Provides LED light source with red emitted light for accurate sensing.
- Maximum DC voltage rating 30 V and current rating 200 mA.
- Complies with CE and IEC 60947-5-2 safety standards.
Product Description
BALLUFF BGL 120A-001-S49 is a through beam photoelectric sensor featuring a fork style design with a 120 mm detection range. This sensor operates on a PNP output configuration and is housed in rugged anodised aluminium offering an IP67 ingress protection rating, making it highly suitable for demanding industrial, automation, and control environments.
The sensor utilizes a red LED light source, optimized for detecting glass materials with great accuracy and speed. It supports an operating temperature range from -10°C to 60°C, providing performance stability under varied conditions. Its IO-Link interface enables seamless integration into modern sensor networks.
The compact slotted switch construction combines high switching frequency with adjustable sensitivity for precise detection requirements. The reversible switching option allows configuration for normally open or normally closed contacts, enhancing flexibility in control circuits.
With a maximum DC voltage rating of 30 V and maximum current capacity of 200 mA, this sensor ensures reliable electrical performance. It adheres to CE and IEC 60947-5-2 standards, prioritizing safety and quality in industrial applications.
This sensor is ideal for automation, manufacturing, laboratory instrumentation, and quality control processes requiring detailed component detection with minimal adjustment effort. The solid metal housing protects internal components from harsh conditions, extending sensor lifespan.
Fork style sensor with high precision detection suitable for glass material. Through beam detection type ensures reliable sensing performance. Robust anodised aluminium housing for durability and protection. Operates in temperature range from -10°C to 60°C with IP67 protection.
Equipped with PNP output and IO-Link interface for flexible connectivity. Provides LED light source with red emitted light for accurate sensing. Maximum DC voltage rating 30 V and current rating 200 mA. Complies with CE and IEC 60947-5-2 safety standards.
Compact slotted switch design with adjustable sensitivity control. Reversible switching function enables NO or NC operation. Explore our full range of Photoelectric Sensors at EnvMart for industrial automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor is 120 mm.
It features a PNP output configuration.
The sensor has an IP67 ingress protection rating, making it suitable for harsh environments.
The maximum operating temperature is 60°C.
This model is optimized for detecting glass materials.
It supports an IO-Link interface for flexible connectivity.
The maximum DC voltage rating is 30 V.
The housing is made of anodised aluminium, providing durability and protection.
The minimum operating temperature is -10°C.
It complies with CE and IEC 60947-5-2 safety standards.
The maximum current rating is 200 mA.
This model features a fork style design.
