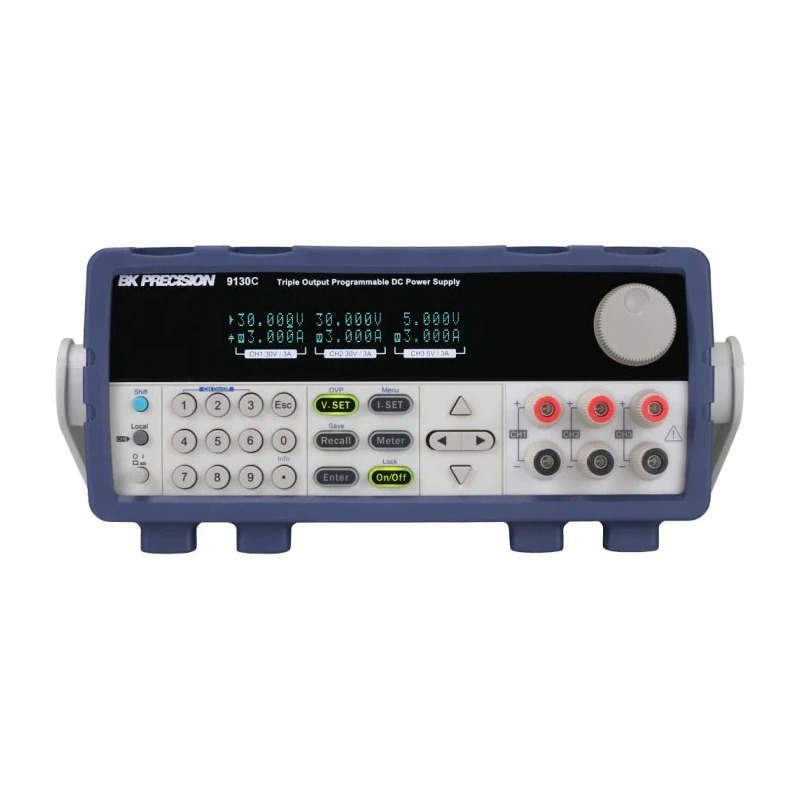

BK Precision Analogue Bench Power Supply, 3-Output 0 V to 5 V, 195 W, 3 A Max BK9130C

BK Precision BK9130C Analogue Bench Power Supply is a versatile and precise linear programmable DC power supply designed for industrial, laboratory, and educational applications. It provides three electrically isolated outputs that can be independently adjusted or combined to deliver higher voltage or current outputs. With an output voltage range from 0 V to 5 V, a maximum output current of 3 A, and total power output of 195 W, this bench power supply supports a wide range of testing and measurement needs.

The BK9130C supports tracking mode which enables programming of the outputs to maintain a specific ratio, ideal for complex power requirements. The front panel features keys and a rotary knob with intuitive cursors for quick and precise setting adjustments. The outputs show voltage and current simultaneously on the display, facilitating easy monitoring during operation.

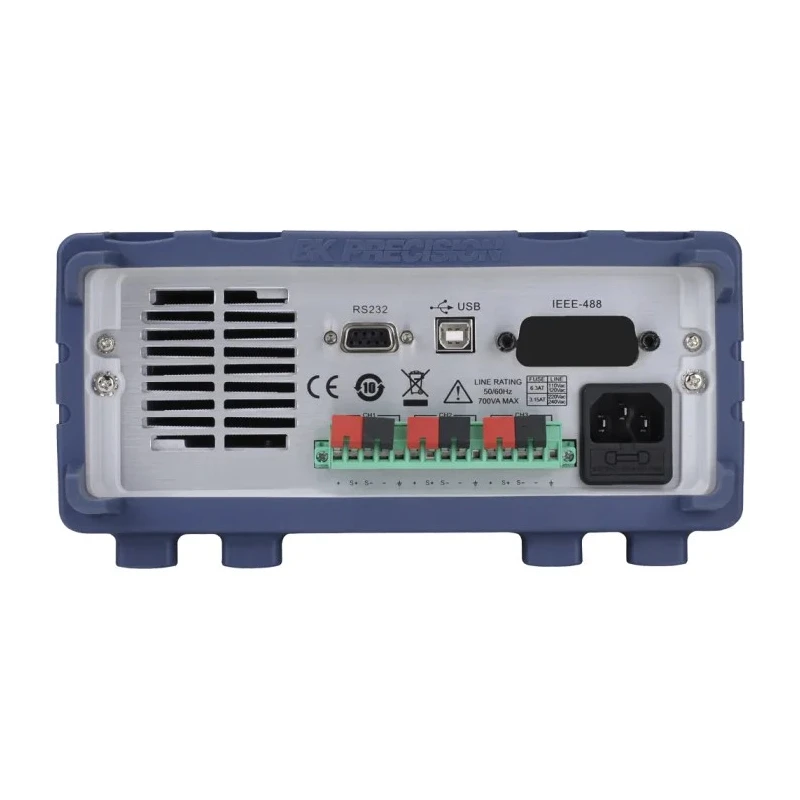

Remote control capability is provided through standard USB (USBTMC compliant) and RS232 interfaces supporting SCPI commands, making it suitable for automated testing environments. Additionally, the bench power supply features timer-controlled output adjustable from 0.1 to 99999.9 seconds and includes output On/Off control for convenience.

Safety and reliability are ensured with built-in overvoltage protection (OVP), overtemperature protection (OTP), and a keylock feature to prevent accidental changes. Its compact 19-inch half-rack form factor allows easy bench placement or side-by-side mounting in racks, saving valuable workspace.

The BK9130C is backed by NI certified LabVIEW driver and softpanel software that enable advanced remote control, test sequence generation, and datalogging functionality to enhance automated testing workflows.

Three isolated outputs adjustable independently or in combination. Tracking mode with configurable output ratios. Front panel control with rotary knob and keys. USB and RS232 remote control with SCPI support. Low noise linear regulation with high resolution (1 mV / 1 mA).

Timer-controlled output and output On/Off control. Overvoltage and overtemperature protection with keylock. Compact 19-inch half-rack size. NI certified LabVIEW driver and softpanel included.

This Bench Power Supply is ideal for precise voltage and current supply in industrial testing, laboratory research, manufacturing quality control, and educational labs, delivering reliable and configurable power outputs suited to complex applications. Explore similar and complementary products in the Bench Power Supplies category on EnvMart to find the optimal solution for your power supply needs.
