BK Precision Analogue Bench Power Supply, 3-Output 0 V to 5 V, 375 W, 3 A Max BK9131C

BK Precision BK9131C is an analogue bench power supply designed for precision laboratory, industrial, and test applications. It features three electrically isolated outputs capable of independent adjustment or combination in series or parallel to deliver higher voltages or currents. This unit outputs up to 375 W of power, with a maximum current of 3 A and an output voltage range from 0 V to 5 V.

The linear regulation design ensures low noise and stable output, ideal for sensitive instrument powering and testing. Versatile operation modes include series, parallel, and configurable tracking modes with programmable ratios between channels, enhancing flexibility for diverse use cases.

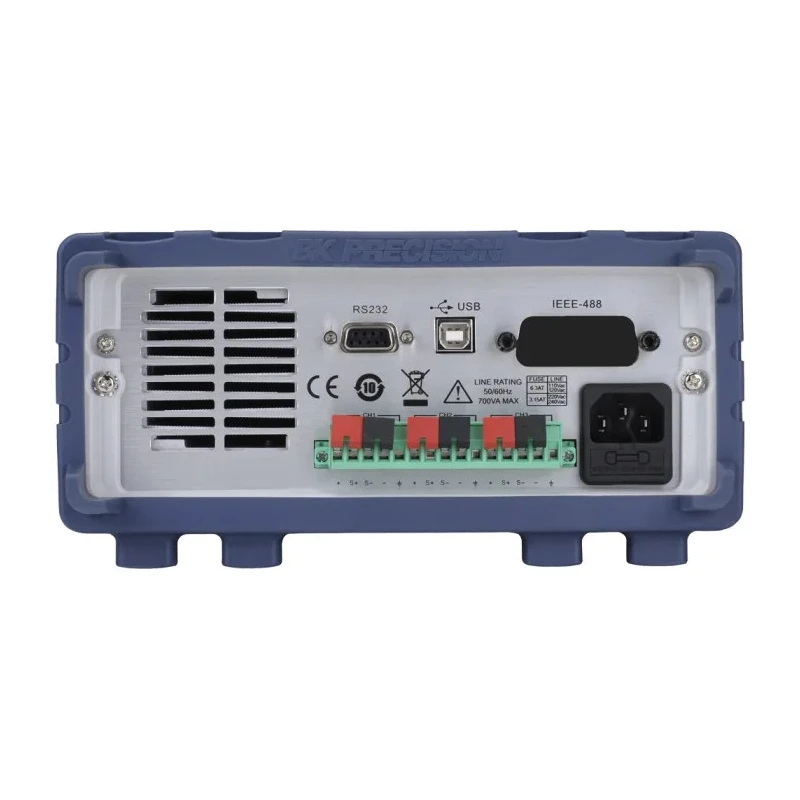

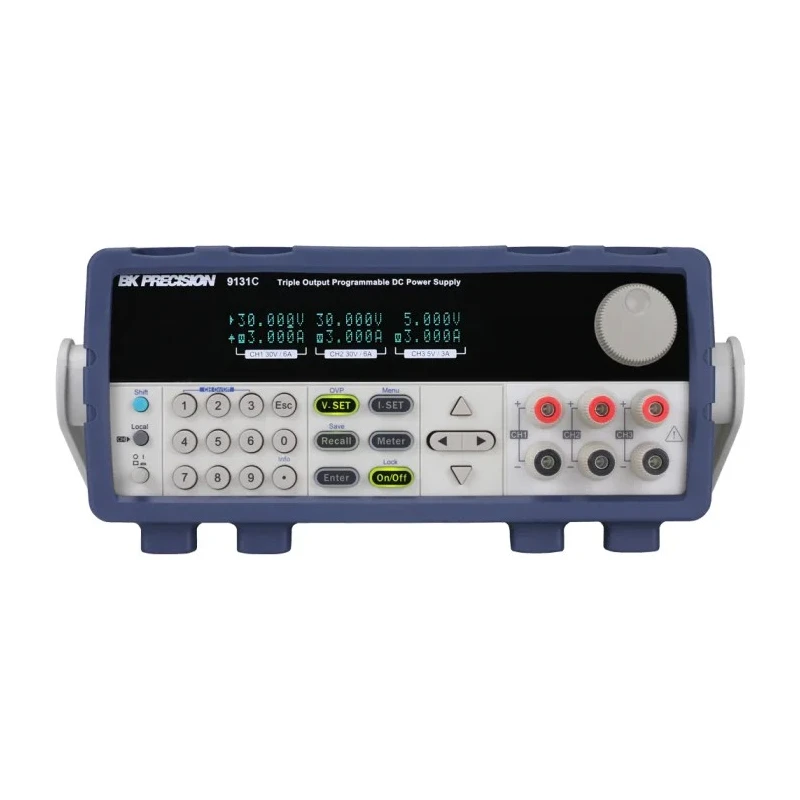

Control is user-friendly via front panel keys and a rotary knob, offering rapid setting of voltage and current parameters. Digital displays provide real-time voltage and current readings for all three outputs simultaneously. Remote control is supported through USB (USBTMC-compliant) and RS232 interfaces, both accepting SCPI command protocols. An NI certified LabVIEW driver and softpanel software are available for remote control, automated test sequence generation, and data logging.

Safety features incorporate overvoltage protection (OVP), overtemperature protection (OTP), and a keylock to prevent unauthorized changes. The device is calibrated with UKAS calibration certificates, ensuring traceability to national standards for critical test and measurement accuracy.

Its compact 19" half-rack size facilitates side-by-side mounting of two units in a standard equipment rack. Suitable for industrial, laboratory, and quality control environments, the BK9131C Bench Power Supply supports a broad spectrum of electrical testing and development needs.

Three independent isolated outputs with adjustable parameters. Low noise linear regulation for precise voltage output. Multiple output modes including series, parallel, and tracking. Intuitive front panel controls with digital display.

Remote operation via USB and RS232 with SCPI support. UKAS calibration for industry-standard accuracy. Comprehensive protection features for safe operation. Compact form factor compatible with standard racks. Timer-controlled output function adjustable up to 99999.9 seconds.

Ideal for industrial, laboratory, and testing environments. Explore more bench power supplies and test and measurement instruments for your precise application needs at EnvMart.
