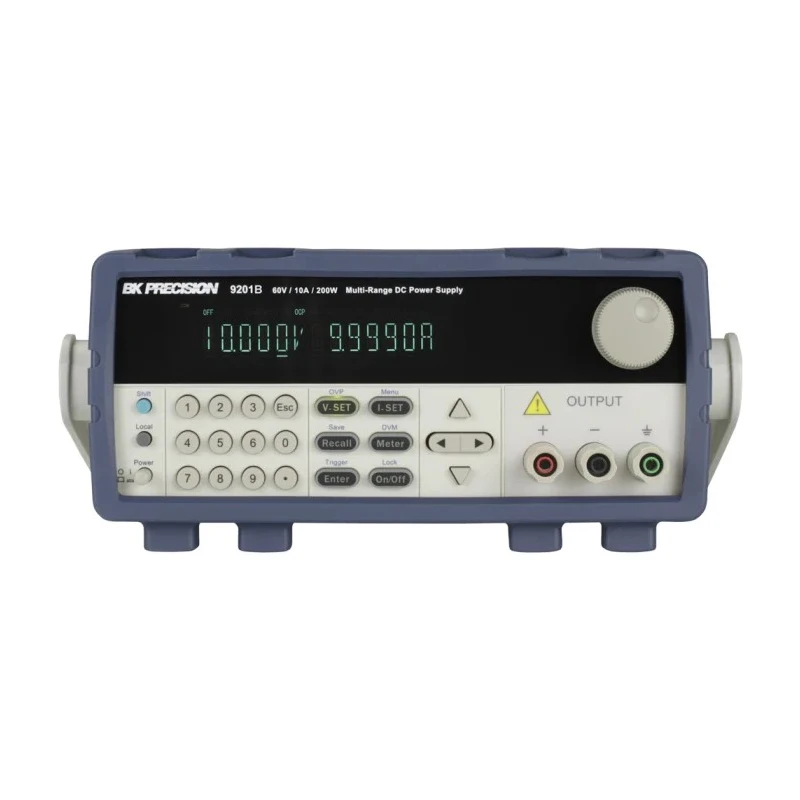

BK Precision Analogue Bench Power Supply 1-Output 0 V to 60 V 200 W 10 A Max BK9201B

BK Precision BK9201B Analogue Bench Power Supply offers a single output channel with a variable voltage range from 0 V to 60 V and a maximum power output of 200 W. The device supports a maximum current of 10 A, making it suitable for precise and flexible power delivery in industrial, laboratory, and electronic testing applications.

This power supply differs from conventional fixed-ratings devices by automatically recalculating voltage and current limits for each setting to ensure maximum power output within rated capabilities. It operates with multi-ranging functionality, allowing users to combine voltage and current settings efficiently.

Programming and measurement resolutions are high at 1 millivolt and 0.1 milliamp, respectively, providing fine control over output parameters. Users can store and recall up to 72 instrument configurations for improved workflow and repeatability. An output timer function adds operational flexibility for timed power delivery.

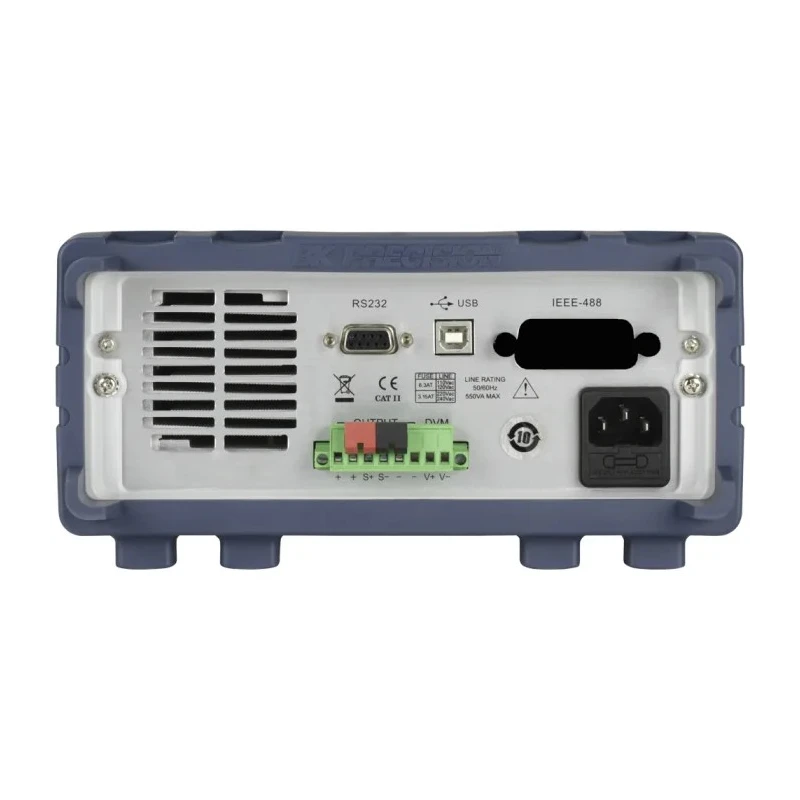

Equipped with standard USB (USBTMC-compliant) and RS232 interfaces, the unit supports SCPI commands for seamless integration with automated test systems. Its analogue output type offers smooth control without digital stepping.

Physically compact with dimensions of 214.5 mm width, 354.6 mm depth, and 88.2 mm height, the BK9201B fits comfortably on test benches and in racks. The power supply conforms to ISO 16750 standards, ensuring durability and compliance with industry quality requirements.

The operating temperature range spans 0°C to 40°C, suitable for many industrial and laboratory environments. With its precise output controls and multiple interface options, this analogue Bench Power Supply serves industrial machines, laboratory instrumentation, test and measurement setups, and calibration environments effectively.

The power supply provides variable voltage output from 0 to 60 volts. Maximum output current rating is 10 amperes for versatile laboratory applications. It features high programming and read back resolution at 1 mV and 0.1 mA respectively.

Multi-ranging operation enables delivery of maximum power in any Volt/Amp combination within rated limits. Standard USB (USBTMC-compliant) and RS232 interfaces support SCPI command communication protocols. The unit includes an output timer function and allows storing and recalling up to 72 instrument settings.

Compact dimensions of 214.5 mm width, 354.6 mm depth, and 88.2 mm height save valuable bench space. Operating temperature range of 0°C to 40°C suits typical industrial and laboratory environments. Built to ISO 16750 standards, assuring reliability and quality performance.

Designed for analogue output type satisfying precision bench powering needs in labs, industrial, and test instrument setups. Explore a wide selection of measuring and testing instruments, including bench power supplies, at EnvMart for your industrial and laboratory power needs.
