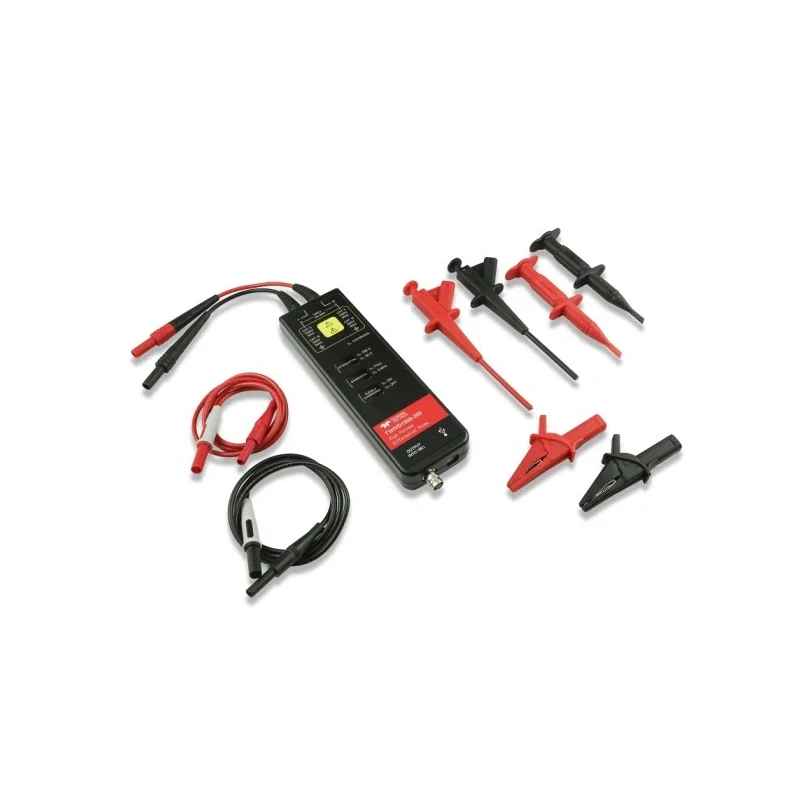

Teledyne LeCroy High Voltage Differential Oscilloscope Probe, 70 MHz Bandwidth, 50:500 Attenuation, BNC T3HVD1500-70
Specifications
| Country of Origin | China |
|---|---|
| Brand | Teledyne LeCroy |
| Model | T3HVD1500-70 |
| Connector Type | BNC |
| Bandwidth | 70MHz |
| Probe type | Differential |
| Rise Time | 1.75ns |
| Attenuation | 50:500 |
| Safety Category Level | CAT III |
| Maximum Common Mode Input Voltage | 1.5kV |
| Attenuation 50 | 500 |
| RS PRO RSDPB5150 Oscilloscope Probe, Differential Type, 70 MHz, 1 | 50, 1:500, BNC ConnectorRS Stock No.: 123-6479Brand: RS PRO |
| Teledyne LeCroy AP031 Oscilloscope Probe, Differential Type, 25MHz, 1 | 10, 1:100, BNC ConnectorBrand: Teledyne LeCroy |
| Teledyne LeCroy T3HVD1500-70 Oscilloscope Probe, Differential Type, 70 MHz, 50 | 500, BNC Connector |
Key Features
- Wide bandwidth of 70 MHz supports precise signal measurement.
- Differential probe with ±1500 V maximum differential input (DC + Peak AC) rating.
- Combination of single-ended and differential measurement capability for flexible use.
- Compatible with oscilloscopes having 1 MΩ input impedance and BNC connector.
- Equipped with over-voltage alarm featuring dual indicators for safety.
- Fast rise time of 1.75 ns ensures accurate waveform capture.
- Designed to reduce test circuit loading for more reliable measurements.
- Safety-rated at CAT III level, suitable for industrial environments.
Product Description
Teledyne LeCroy T3HVD1500-70 is a high voltage differential Oscilloscope Probe designed for precise and accurate waveform capture with a bandwidth of 70 MHz and an attenuation ratio of 50:500. This differential probe supports measurements up to ±1500 V differential input (DC + Peak AC), making it suitable for robust industrial and laboratory use.
The probe features fast rise time of 1.75 ns and combines both single-ended and differential measurement capabilities. It can be used with any oscilloscope featuring a 1 MΩ input impedance and a BNC connector, ensuring broad compatibility.
Safety is enhanced with an over-voltage alarm accompanied by dual indicator lights, and the device holds a CAT III safety category rating, emphasizing suitability for demanding environments including power electronics and industrial testing.
Applications include power electronics testing, multi-phase motor drive monitoring especially in electric vehicles, inverter and power conversion diagnostics, photovoltaic system design, and general vehicle electronics. It is also well suited for power supply design, domestic appliance testing, and floating voltage measurements in research and education.
The Teledyne LeCroy T3HVD1500-70 probe minimizes test circuit loading and delivers a measurement accuracy of approximately ±2%. It is a reliable and accurate tool for engineers and technicians working across commercial, industrial, and academic sectors.
Wide bandwidth of 70 MHz supports precise signal measurement. Differential probe with ±1500 V maximum differential input (DC + Peak AC) rating. Combination of single-ended and differential measurement capability for flexible use.
Compatible with oscilloscopes having 1 MΩ input impedance and BNC connector. Equipped with over-voltage alarm featuring dual indicators for safety. Fast rise time of 1.75 ns ensures accurate waveform capture. Designed to reduce test circuit loading for more reliable measurements.
Safety-rated at CAT III level, suitable for industrial environments. Ideal for power electronics, multi-phase motor drives, and inverter testing. Supports floating voltage measurements in research, development, and education sectors.
Explore more measuring and testing instruments at EnvMart for reliable industrial and laboratory solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Teledyne LeCroy T3HVD1500-70 has a maximum differential input rating of ±1500 V (DC + Peak AC).
This model features a bandwidth of 70 MHz, allowing for precise signal measurement.
It is equipped with a BNC connector, ensuring compatibility with various oscilloscopes.
The rise time of this probe is 1.75 ns, which supports accurate waveform capture.
The probe is safety-rated at CAT III level, making it suitable for industrial environments.
The attenuation ratio of the T3HVD1500-70 is 50:500, providing flexibility in measurement capabilities.
This model supports both single-ended and differential measurement capabilities, enhancing its versatility.
The maximum common mode input voltage for the T3HVD1500-70 is 1.5 kV.
It is compatible with oscilloscopes that have a 1 MΩ input impedance and a BNC connector.
This probe is suitable for power electronics testing, multi-phase motor drive monitoring, and inverter diagnostics, among other applications.
Yes, it is equipped with an over-voltage alarm featuring dual indicators for enhanced safety during use.
The T3HVD1500-70 delivers a measurement accuracy of approximately ±2%.
