| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-B56-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, AEC-Q101 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 56V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 425Ω |
| Typical Voltage Temperature Coefficient | 52.2mV/K |

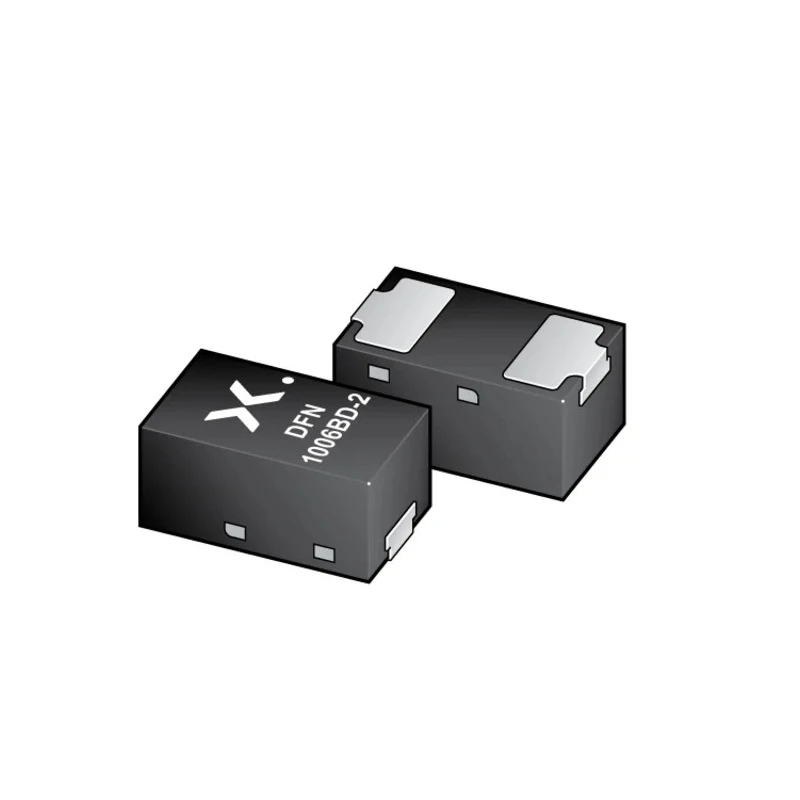

Nexperia BZX884S-B56-QYL general purpose Zener diode is designed for precise voltage regulation in electronic circuits, featuring a nominal voltage of 56 V and maximum power dissipation of 365 mW. Housed in a compact, leadless surface-mounted DFN1006BD-2 package, it offers efficient thermal and electrical performance for electronic and semiconductor applications.
This diode supports a single diode configuration with a low reverse leakage current of only 50 nA, ensuring minimal power loss and efficient signal clamping. It operates reliably over a wide temperature range from -55°C to 150°C, suitable for harsh industrial and automotive environments. The device features a voltage tolerance of ±2% and a typical voltage temperature coefficient of 52.2 mV/K, which promotes stable voltage regulation across temperature variations.
Qualified under the automotive standard AEC-Q101, the BZX884S-B56-QYL is recommended for automotive, industrial control, power management, and other stringent applications requiring high reliability. The small 2-pin DFN1006BD-2 package with dimensions of 1 mm length and 0.47 mm height allows for high-density PCB designs in compact electronic devices.
The diode’s maximum Zener impedance of 425 Ω and test current of 5 mA further ensure consistent performance. The RoHS compliance guarantees an environmentally friendly product compliant with global electronic standards.
Low maximum reverse leakage current of 50 nA for efficient operation. Wide operating temperature range from -55°C to 150°C for reliability. Voltage tolerance of ±2% and stable voltage temperature coefficient of 52.2 mV/K.
Compact DFN1006BD-2 surface mount package measuring 1 mm by 0.47 mm. Qualified to automotive standard AEC-Q101 for industrial use cases.
This Zener Diode is ideal for use in industrial machines, automotive electronics, and power management circuits requiring precise voltage regulation and stable performance under variable conditions. For more high-quality semiconductor devices, explore EnvMart’s extensive catalog.
