| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-B12-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101, RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 100nA |
| Nominal Zener Voltage Vz | 12V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 150Ω |
| Typical Voltage Temperature Coefficient | 6mV/K |

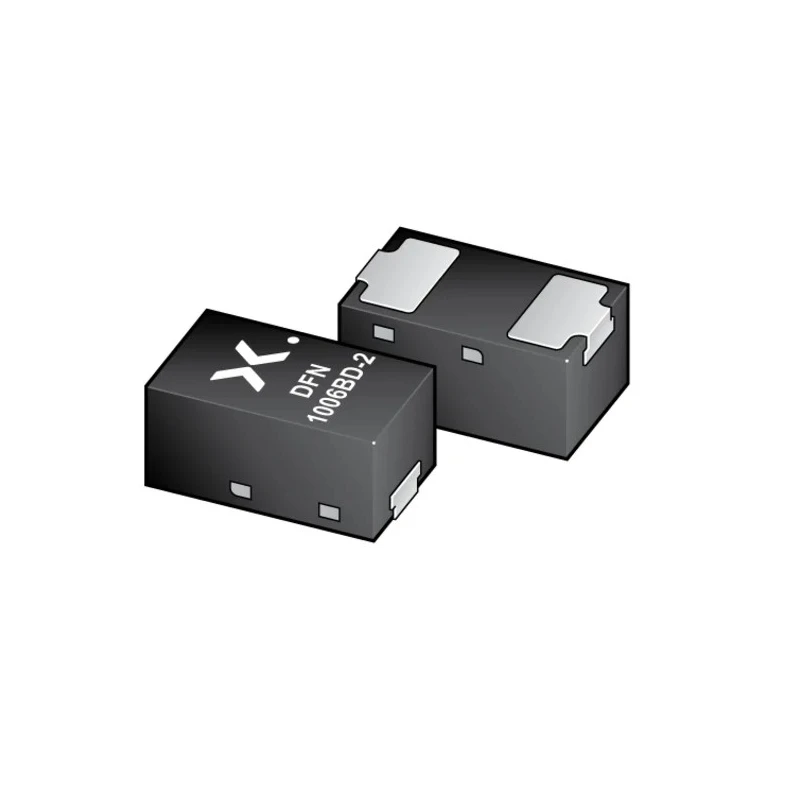

Nexperia BZX884S-B12-QYL is a general purpose 12 V Zener diode with 365 mW maximum power dissipation, packaged in a compact DFN1006BD-2 2-pin surface mount device. It is intended for use in industrial, automotive, and electronic applications where precise voltage regulation and protection are required.
This device features a nominal zener voltage of 12 V with a tolerance of ±2%, ensuring reliable performance within tight parameters. It is mounted on surface mount technology footprints and benefits from automotive AEC-Q101 qualification for durability in demanding environments.
Thanks to its small dimensions (1 mm length, 0.47 mm height), the diode fits well in space-constrained PCB layouts. This model exhibits low maximum reverse leakage current of 100 nA and a test current rating of 5 mA, optimizing power efficiency and stability. The zener impedance is limited to 150 Ω to support voltage regulation functions.
Thermal performance covers a wide range from -55°C to 150°C ambient temperatures, making it suitable for use in automotive systems as well as industrial electronic circuits. Nominal zener voltage of 12 V with ±2% tolerance.
Maximum power dissipation of 365 mW in compact DFN1006BD-2 package. Compliance with AEC-Q101 automotive quality standards. Low reverse leakage current of 100 nA at room temperature. Operating temperature range from -55°C up to 150°C.
Small form factor supporting dense PCB designs. Zener impedance limited to 150 Ω for precise regulation. Test current defined at 5 mA for consistent behavior.
This Zener diode fulfills the needs of engineers designing automotive electronics, power supplies, and any circuit requiring effective voltage clamping or reference voltage sources. Its reliability and certified robustness make it an ideal choice for demanding production environments.
