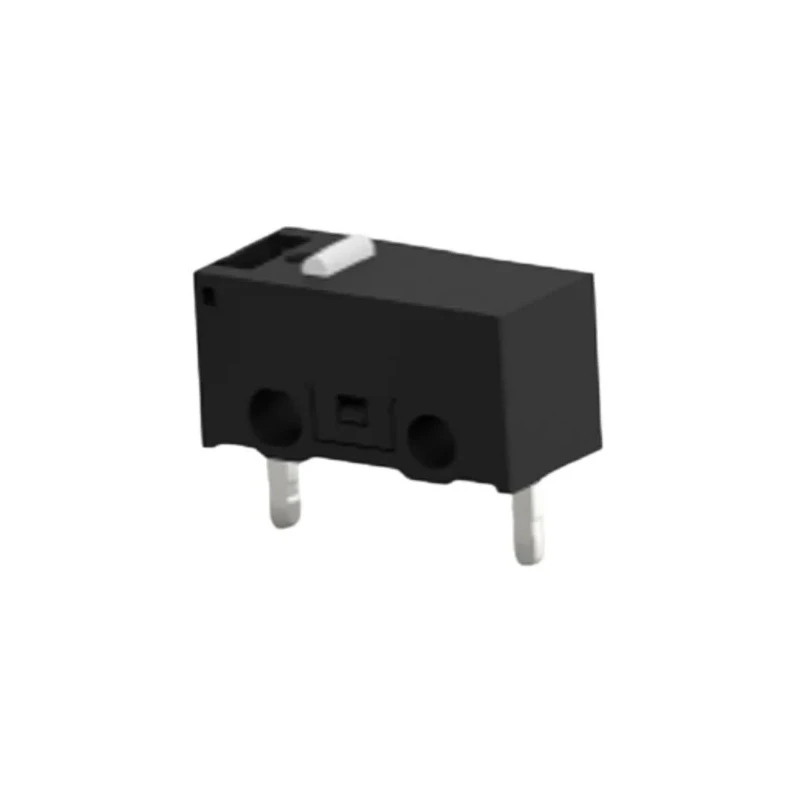

TE Connectivity Lever Snap Action Micro Switch, PCB Terminal, 0.1A, SPST SAJ101XPP0N74SNCPTQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ101XPP0N74SNCPTQ |
| Series | SAJ1 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPST |
| Actuator Type | Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 0.1A |
| Operating Force | 0.75N |
| Mechanical Life | 1000000Cycles |
| Microswitch Type | Miniature |
Key Features
- Equipped with a lever actuator for precise operation.
- Miniature size suitable for compact electronic assemblies.
- PCB terminal type ensures secure and durable mounting.
- Operating force of 0.75 Newton provides tactile feedback.
- Operates reliably between -25°C to 75°C temperature range.
- Designed for long mechanical life with up to 1,000,000 cycles.
- RoHS compliant, ensuring environmental safety.
- Ideal for home appliances, consumer electronics, and industrial automation.
Product Description
TE Connectivity SAJ101XPP0N74SNCPTQ is a lever-type snap action micro switch featuring a PCB terminal for secure electrical connections. This miniature switch operates with a low contact current of 0.1A and SPST (Single Pole Single Throw) contact configuration, making it suitable for various precision electronics and automation systems.
The switch is engineered for high durability and reliability, boasting a mechanical life of 1,000,000 cycles. Its low operating force of 0.75N ensures smooth actuation, suitable for sensitive control applications. The device withstands a wide ambient temperature range from -25°C to 75°C, allowing usage in diverse environments.
Compliance with RoHS standards guarantees the product's safety in environmentally sensitive applications. This micro switch is dimensionally compatible with popular industry models, facilitating easy replacement or integration into existing designs.
Its typical applications include household appliances, consumer electronics, factory automation, and other industrial control systems. The PCB terminal interface provides reliable mounting and electrical contact performance necessary for durable operation.
Equipped with a lever actuator for precise operation. Miniature micro switch suitable for compact designs. Robust PCB terminal mounting. Operating force of 0.75 Newton provides smooth actuation. Wide operating temperature range from -25°C to 75°C.
Designed for a mechanical life of up to one million cycles. RoHS compliant for environmental safety. Versatile use in home appliances, consumer electronics, and industrial automation.
This product is ideal for professionals seeking a reliable Micro Switch solution with precise control and long service life. Explore more high-quality electronic components like this in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an SPST (Single Pole Single Throw) contact configuration, suitable for various electronic applications.
It operates reliably within a temperature range of -25°C to 75°C, making it versatile for different environments.
It is designed for a mechanical life of up to 1,000,000 cycles, ensuring long-term reliability in applications.
The operating force for this switch is 0.75 Newtons, providing tactile feedback during operation.
This micro switch utilizes a PCB terminal type, ensuring secure and durable mounting for electrical connections.
It is commonly used in household appliances, consumer electronics, and industrial automation systems.
This model is equipped with a lever actuator, allowing for precise operation and control.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards for sensitive applications.
The maximum operating temperature for this model is 75°C, suitable for various operational conditions.
The switch contact current rating is 0.1A, making it suitable for low-power applications.
This product is manufactured in China, as indicated by its specifications.
This model is part of the SAJ1 series, which includes various lever-type micro switches.
