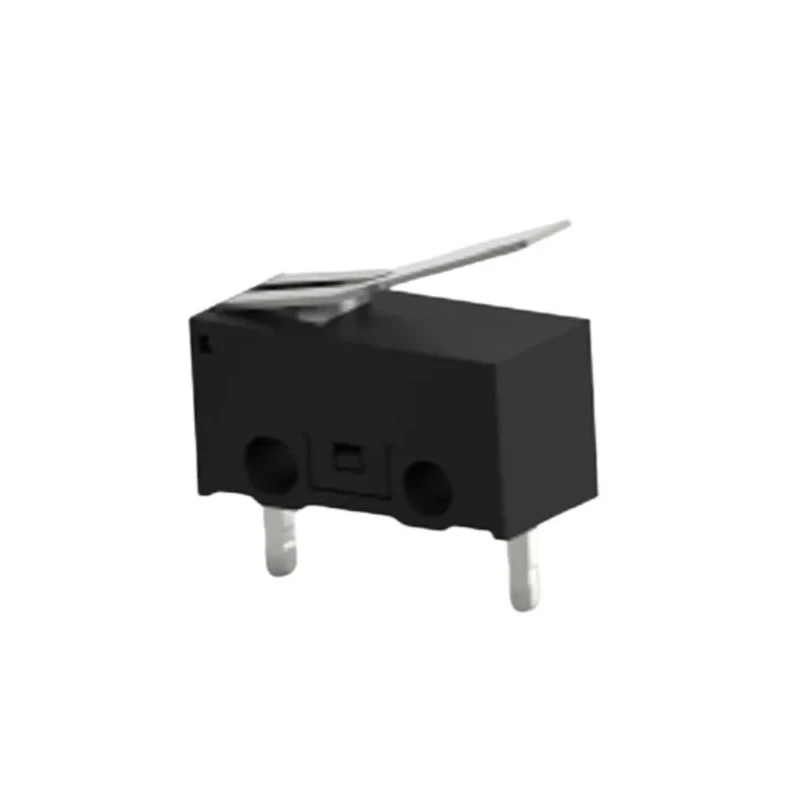

TE Connectivity Lever Snap Action Micro Switch, PCB Terminal, 0.1A, SPST SAJ101XBL0N74SNCPTQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ101XBL0N74SNCPTQ |
| Series | SAJ1 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPST |
| Actuator Type | Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 0.1A |
| Operating Force | 0.75N |
| Mechanical Life | 1000000Cycles |
| Microswitch Type | Miniature |
Key Features
- The micro switch features a miniature snap action mechanism with a lever actuator for precise operation.
- It supports a contact configuration of SPST and a switch contact current of 0.1A.
- Operating force required is 0.75N ensuring responsive actuation.
- Designed for reliable operation in temperature ranges from -25°C to 75°C.
- Mechanical life expectancy is rated at 1,000,000 cycles for durability.
- It conforms to RoHS standards, making it compliant with environmental regulations.
- PCB terminals are resistant to flux, enhancing circuit board reliability.
- Ideal for applications in home appliances, consumer electronics, and factory automation.
Product Description
TE Connectivity SAJ101XBL0N74SNCPTQ lever snap action micro switch provides precise and reliable electrical switching by converting mechanical action into electrical signals. Featuring a lever actuator and PCB terminal connections, this miniature snap action switch is designed to handle a switch contact current of 0.1A with SPST contact configuration.
This micro switch requires an operating force of 0.75N, enabling sensitive and accurate triggering in various applications. It performs effectively within the operating temperature range of -25°C to 75°C, and its construction offers a mechanical life of up to 1,000,000 cycles, promising long-term durability.
The device complies with RoHS standards, making it environmentally friendly and suitable for modern electronic equipment. The PCB terminal design enhances resistance to flux, improving reliability in circuit board assemblies. Dimensionally compatible with popular brands, it fits easily into existing designs without requiring modifications.
This micro switch finds applications across a wide range of environments including home appliances, consumer electronics, factory automation, and other industrial uses requiring dependable snap action switching.
The micro switch includes a lever actuator type for precise mechanical control. PCB terminal type ensures secure and reliable electrical connections. Capable of handling 0.1A switch contact current. Contact configuration is SPST, supporting single-pole single-throw switching.
Operating force is 0.75N for responsive actuation. Operates efficiently between -25°C and 75°C temperatures. Rated for 1,000,000 mechanical cycles for extended use. Meets RoHS standards for environmental compliance. Manufactured in China with high-quality standards.
This TE Connectivity SAJ1 series micro switch is a durable and adaptable component for industrial, domestic, and commercial automation systems, offering precision and longevity in switching tasks.
Explore similar Micro Switches and switch components in the Electronics & Electricals category on EnvMart to find compatible devices for your requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This micro switch is rated for a switch contact current of 0.1A.
It operates efficiently within a temperature range of -25°C to 75°C.
The switch features a single-pole single-throw (SPST) contact configuration.
The required operating force for actuation is 0.75N.
This micro switch has a mechanical life expectancy rated at 1,000,000 cycles.
It uses a lever actuator type for precise mechanical control.
The micro switch features PCB terminal connections.
Yes, it conforms to RoHS standards, making it compliant with environmental regulations.
This micro switch is manufactured in China.
It is suitable for applications in home appliances, consumer electronics, and factory automation.
This model belongs to the SAJ1 series of micro switches.
This model is classified as a miniature micro switch.
