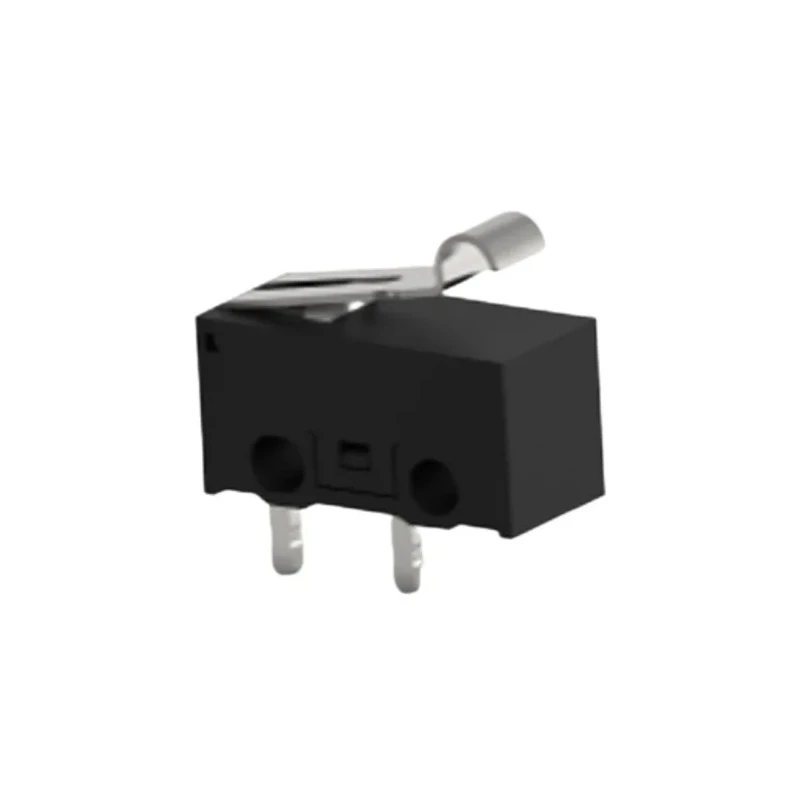

TE Connectivity Lever Snap Action Micro Switch, PCB Terminal, 0.1A, SPST SAJ101XRHLN74SNOPTQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ101XRHLN74SNOPTQ |
| Series | SAJ1 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPST |
| Actuator Type | Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 0.1A |
| Operating Force | 0.75N |
| Mechanical Life | 1000000Cycles |
| Microswitch Type | Miniature |
Key Features
- Features a lever actuator for easy mechanical operation.
- Designed with PCB terminals for robust and secure mounting.
- Supports a maximum switch contact current of 0.1A for low power circuits.
- SPST (Single Pole Single Throw) contact configuration enables simple on/off switching.
- Requires an operating force of 0.75N ensuring reliable actuation.
- Operates between temperatures of -25°C to 75°C for varied environmental conditions.
- Mechanical life expectancy of 1,000,000 cycles guarantees long-term durability.
- Miniature micro switch complying with RoHS standards ensures environmental compliance.
Product Description
TE Connectivity SAJ101XRHLN74SNOPTQ lever snap action micro switch is a miniature device designed to convert mechanical actions into electrical signals with high reliability. It is equipped with a lever actuator and PCB terminal type connections, making it ideal for precise switching tasks in electronic circuits.
The switch supports a maximum contact current of 0.1A and features a Single Pole Single Throw (SPST) contact configuration. Its operating force is 0.75N, providing dependable actuation across a functional temperature range of -25°C to 75°C. With a mechanical life rated for 1,000,000 cycles, this Micro Switch ensures long-term performance in demanding applications.
Manufactured to RoHS standards, this miniature switch is resistant to flux, enabling it to maintain performance integrity on printed circuit boards. The compact form factor and compatibility with common designs make it ideal for use in home appliances, consumer electronics, factory automation, and various domestic and industrial purposes.
Lever actuator for precise mechanical control. PCB terminal type for secure and reliable electrical connections. Maximum contact current rating of 0.1A suitable for low power applications. SPST contact configuration for simple open or close switching.
Operating force of 0.75 Newtons ensures consistent activation. Mechanical life span of 1,000,000 cycles guarantees durability. Conforms to RoHS standards for environmental safety. Wide operating temperature range from -25°C to 75°C.
Ideal for industrial, manufacturing, home appliance, and automation uses. TE Connectivity delivers high-quality electrical components trusted in multiple industries. Explore other switches and components available on EnvMart for complementary solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switch contact current for this model is 0.1A, making it suitable for low power circuits.
This micro switch operates within a temperature range of -25°C to 75°C, allowing it to function in varied environmental conditions.
It features a lever actuator, which allows for easy mechanical operation and precise control.
The switch has a Single Pole Single Throw (SPST) contact configuration, enabling simple on/off switching.
The required operating force for actuation is 0.75N, ensuring reliable performance during operation.
This model has a mechanical life expectancy of 1,000,000 cycles, ensuring long-term functionality.
It is designed with PCB terminals, providing robust and secure mounting for electrical connections.
Yes, this switch conforms to RoHS standards, ensuring it meets environmental safety requirements.
This micro switch is suitable for use in home appliances, consumer electronics, factory automation, and various domestic and industrial applications.
This model is classified as a miniature micro switch, making it compact and suitable for various designs.
This micro switch belongs to the SAJ1 series, which includes various models designed for similar applications.
The country of origin for this micro switch is China, indicating where it is produced.
