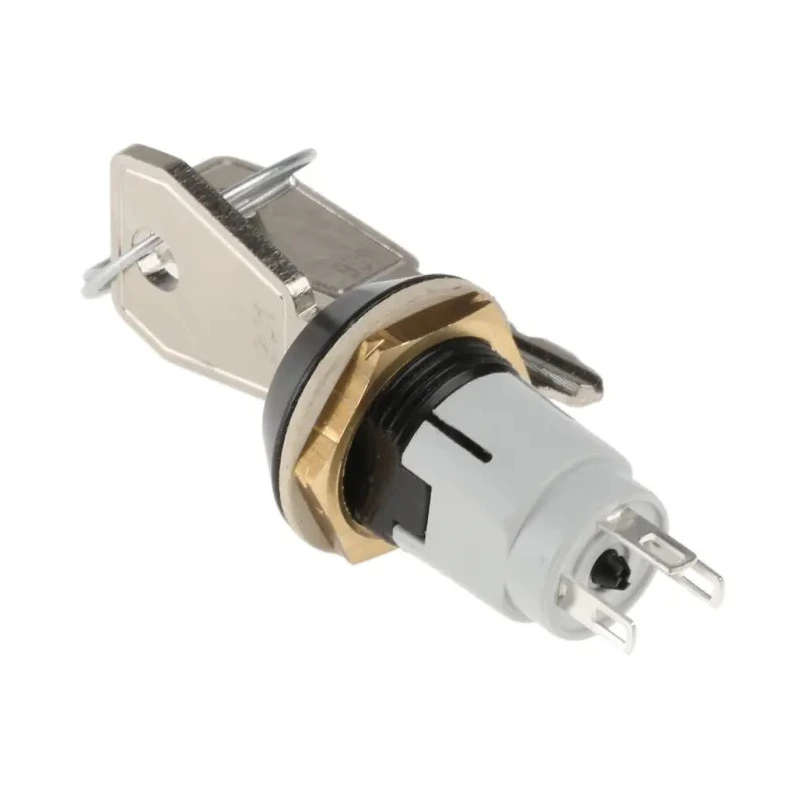

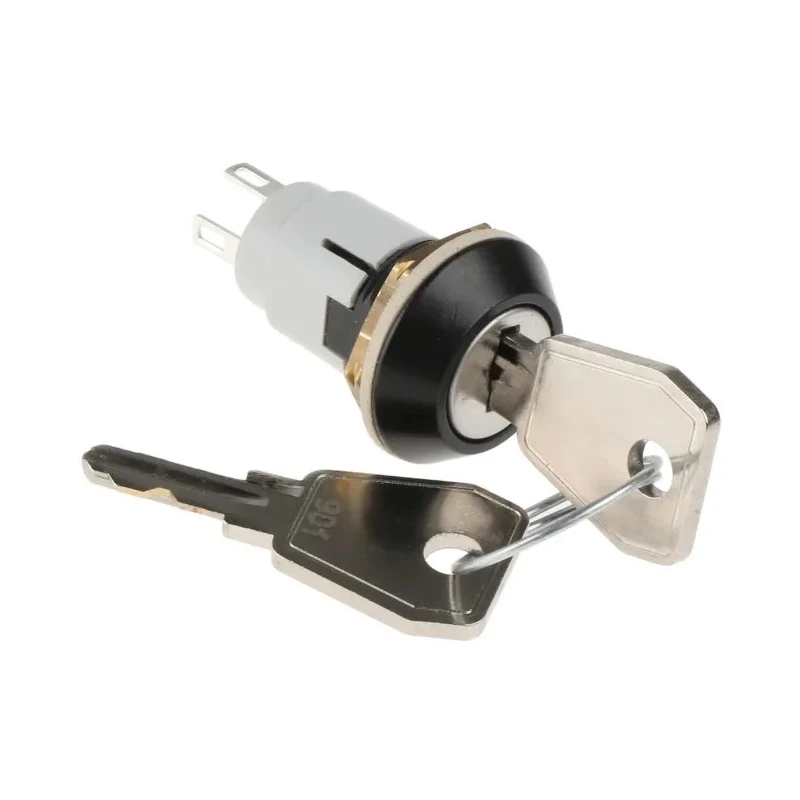

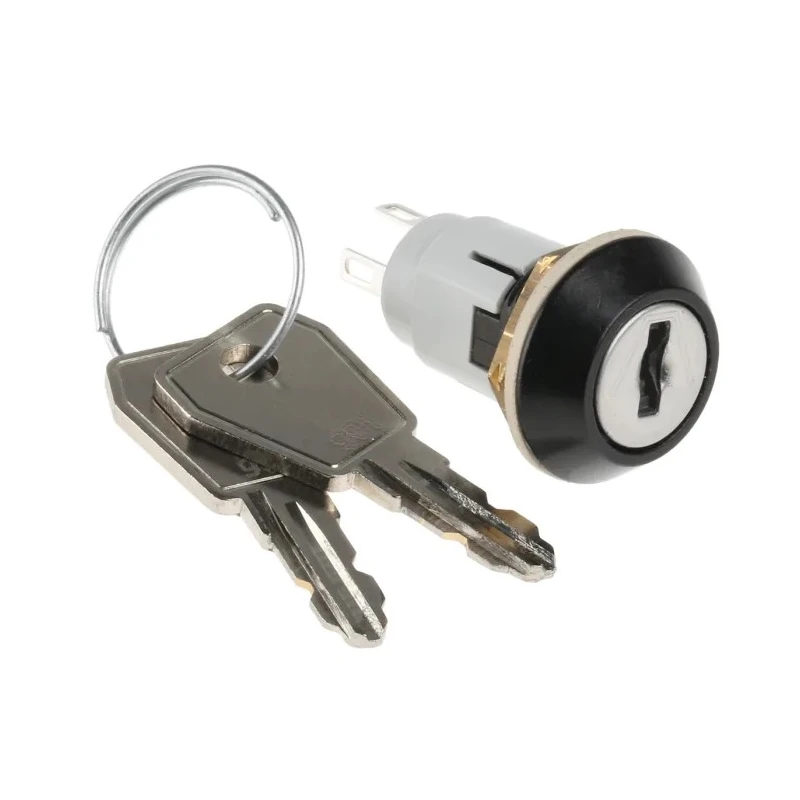

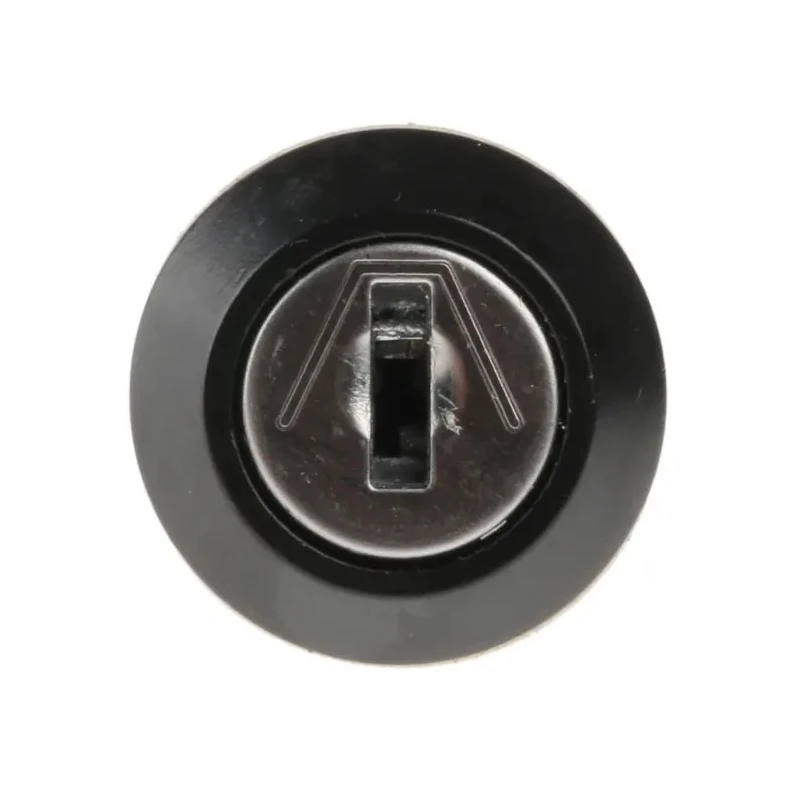

Lorlin IP67 Key Switch, SPDT, 5A 2-Way Common-Key
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Lorlin |
| Model | IP67 |
| IP Rating | IP67 |
| Housing Material | Nylon |
| Contact Material | Silver Plated Brass |
| Series | WRL |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SPDT |
| Number of Positions | 2 |
| Minimum Operating Temperature | -20°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Switch Contact Current | 5A |
| Mechanical Life | 10000Operations |
| Contact AC Voltage | 115V ac |
| Key Type | Common |
| Bezel Shape | Tapered |
| Key Index Angle | 90° |
| Lorlin IP66, IP67 Key Switch, SPDT, 1A 2-Way Common-KeyBrand | Lorlin |
Key Features
- The switch features a double entry key and supports up to 200 key combinations.
- It is made of nylon housing with a tapered bezel and silver-plated brass contacts.

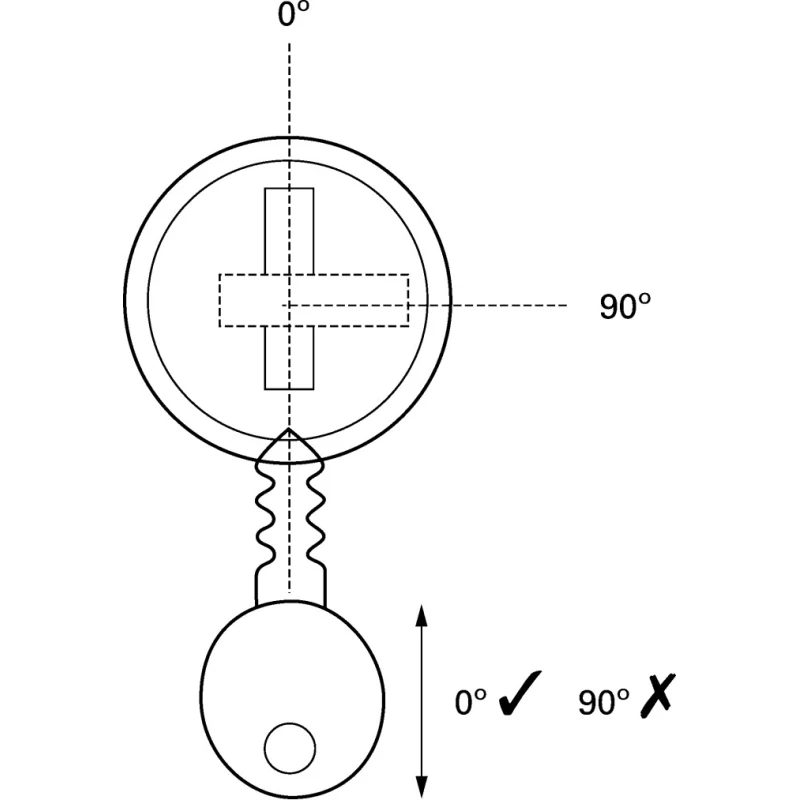

- The key switch offers a mechanical life of 10,000 operations and lock movement at a 90° angle.
- Operating temperature ranges from -20°C to 65°C for versatile applications.
- The solder terminal type and compact rear projection facilitate easy panel integration.
- Designed for marine, control panels, and lighting control uses requiring durable and secure key operation.
- Complies with RoHS and ANSI/ESD S20.20 and BS EN 61340-5-1 standards.
Product Description
The Lorlin WRL-5-E-S-2-B is a high-quality IP67 rated key switch featuring a single pole double throw (SPDT) contact configuration. Its compact, miniature key-operated lock mechanism provides reliable security for industrial and commercial electrical applications.
This key switch is engineered with a nylon 66 housing and a tapered bezel design, making it suitable for continued exterior use when regularly maintained. It supports up to 200 key combinations and includes a common key option, with double entry keys allowing insertion in either orientation.
The switch contact current is rated at 5A for 115VAC and 3A at 50VDC, with silver-plated brass contacts ensuring durability and low resistance. Its mechanical durability is assured with a lifespan of 10,000 operations and a 90-degree key index angle.
Operating temperature range is from -20 degrees Celsius to 65 degrees Celsius, suitable for various environments including marine systems, control panels, and lighting controls. The rear projection from the panel is less than 30mm, enhancing compact equipment design integration.
The switch offers robust security and functionality for industrial automation and control. Solder terminals ease installation onto PCBs or panels. Designed to meet environmental and electrical standards such as RoHS and ANSI/ESD S20.20.
IP67 rating provides protection against dust and water ingress. Common key and key trapping features add convenience and security. This Lorlin key switch is ideal for demanding industrial and marine controller applications where reliable and secure manual switching is necessary.
Explore the range of Lorlin Key Switches on EnvMart to find solutions for your electrical control requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Lorlin key switch has an IP67 rating, providing protection against dust and water ingress.
This key switch features a single pole double throw (SPDT) contact configuration.
The maximum operating temperature for this switch is 65°C.
It uses solder terminals for easy installation onto PCBs or panels.
This model supports up to 200 key combinations, allowing for versatile security options.
The mechanical life of this key switch is rated for 10,000 operations.
The housing is made of nylon, and the contacts are silver-plated brass.
The switch contact current is rated at 5A for 115VAC and 3A at 50VDC.
This key switch uses a common key type, allowing for double entry key insertion.
The minimum operating temperature for this switch is -20°C.
It complies with RoHS, ANSI/ESD S20.20, and BS EN 61340-5-1 standards.
The key index angle for this key switch is 90°.
