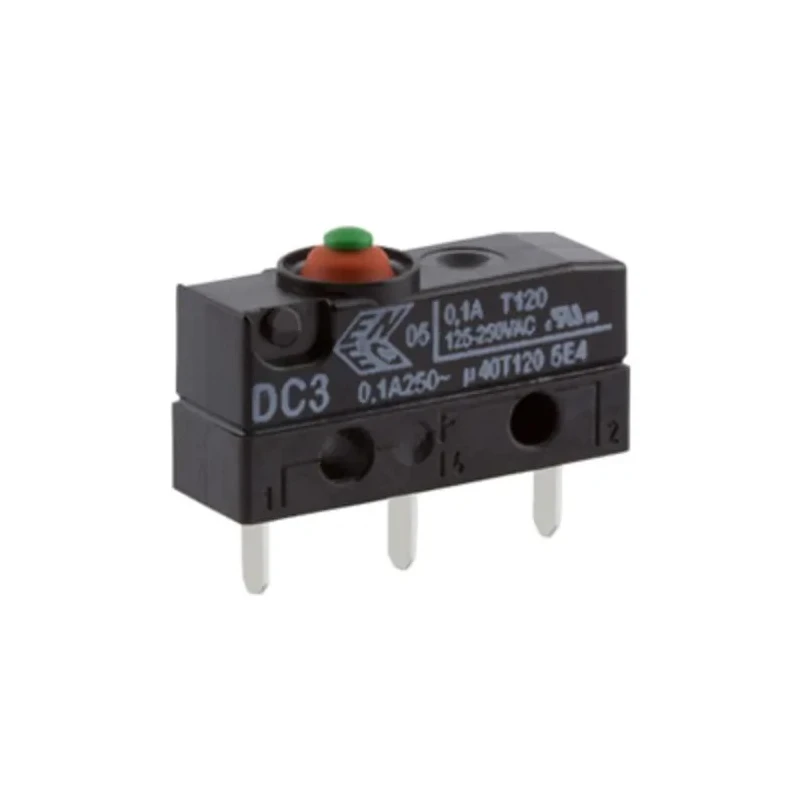

ZF Button Micro Switch, Solder Terminal, 100mA, 250V AC, SPDT, IP6K7 DC3C-H1AA

ZF DC3C-H1AA Button Micro Switch is a high-performance sealed micro switch designed for demanding industrial, automation, and electrical applications requiring precision and durability. This button actuator type switch features a solder terminal type for secure and reliable electrical connections in control circuits.

The device supports a contact current of 100mA and an AC contact voltage of 250V, making it suitable for low current switching tasks. The housing is constructed from flame-retardant PET and PBT materials compliant with UL 94V-0 standards, providing mechanical strength and operational safety.

Its IP6K7 rating ensures excellent protection against dust ingress and water jets, allowing it to perform well in harsh environments. With a wide operating temperature range from -40°C up to 120°C, the switch maintains consistent performance across challenging industrial temperature conditions.

Featuring silver-nickel contacts for reliable electrical conduction and resistance to corrosion, the micro switch also boasts an impressive mechanical life of one million operations, ensuring long-term endurance.

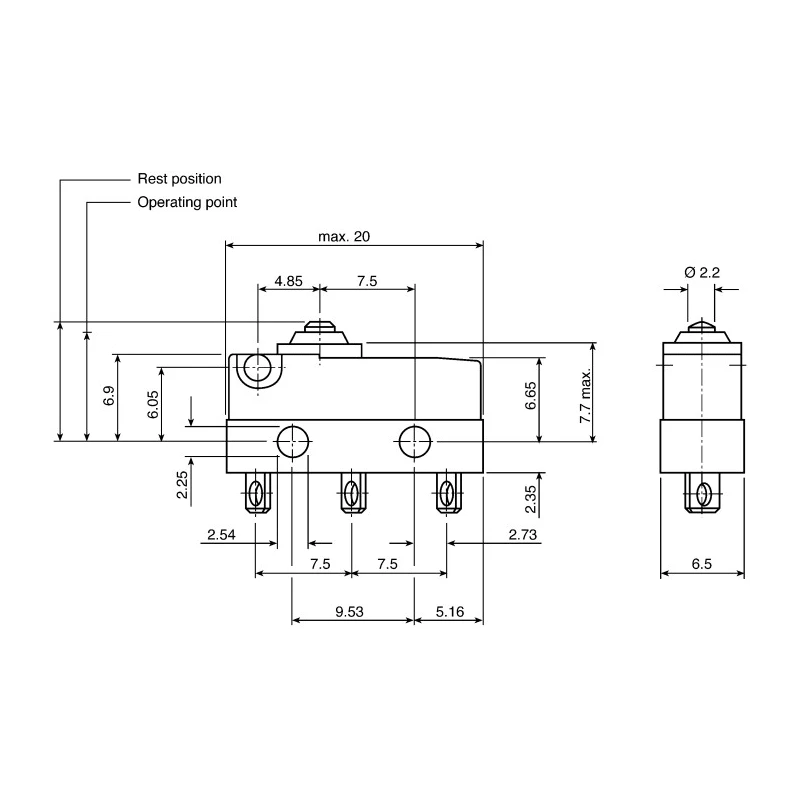

Compact and subminiature in size, with dimensions of 11.65mm in height, 20mm in width, and 6.5mm in depth, the switch integrates conveniently into space-constrained assemblies. Button actuator for easy user interface. Solder terminals enable secure soldered connections.

100mA contact current capacity suitable for signal-level switching. Housing made from fire-retardant PET/PBT materials. Operates reliably between -40°C and 120°C temperature range. IP6K7 sealed to resist dust and water ingress.

Over one million mechanical switching cycles for long life. Silver-nickel contacts provide corrosion resistance and conductivity. Compact micro switch ideal for industrial control panels. RoHS compliant with ENEC and UL safety approvals.

This micro switch is widely used in industrial automation systems, electrical control panels, manufacturing equipment, and HVAC control devices. Its reliable contacting mechanism and robust construction enable consistent on/off switching signals under challenging environmental conditions.
