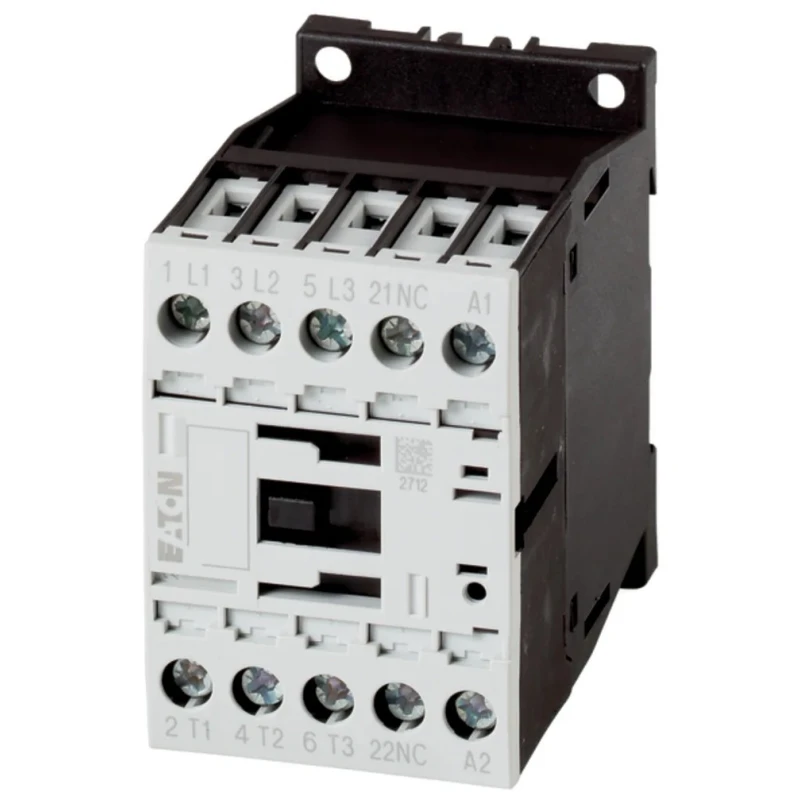

Eaton Contactor 400V Coil, 3-Pole, 15.5 A, 7.5 kW Motor Control with 1 NC Auxiliary 290093 DILM15-01(230V50HZ,240V60HZ)
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Function | Motor Control, Reversing |
| Length | 68mm |
| Model | 290093 DILM15-01(230V50HZ,240V60HZ) |
| Depth | 117mm |
| Width | 45mm |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | VDE 0660, UL, IEC/EN 60947, CSA |
| Contact Voltage | 400V |
| Coil Voltage | 400V |
| Normal State Configuration | 1 NC |
| Contact Current | 15.5A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NC |
| Contactor Application | Contactor for Motors |
| Pole and Throw Configuration | 3P |
Key Features
- Designed for motor control applications with a reversing function.
- Equipped with a 3-pole configuration for efficient circuit switching.
- Power rating of 7.5 kW ensures suitability for robust motor loads.
- Single normally closed (1 NC) auxiliary contact included for control signaling.
- Terminal connections use screw type for secure wiring.
- Wide operating temperature range from -25°C to 60°C for varied environments.
- Meets international standards including VDE 0660, UL, IEC/EN 60947, and CSA certifications.
Product Description
Eaton 290093 DILM15-01(230V50HZ,240V60HZ) contactor is engineered for demanding electrical automation and motor control applications, delivering reliable switching at a coil voltage of 400V and a contact current rating of 15.5 A. This 3-pole device is designed to handle motor power loads of up to 7.5 kW, making it suitable for industrial environments where control and safety are critical.
The contactor includes a single normally closed (1 NC) auxiliary contact, facilitating integrated control and signaling capabilities within motor circuits and automation systems. Screw-type terminals provide secure and robust electrical connections to ensure consistent performance under varying operational conditions.
Operating temperature tolerances from -25°C to 60°C make this contactor adaptable to a broad range of environments, including industrial, manufacturing, HVAC, and process control sectors. The compact form factor with dimensions of 117 mm depth, 68 mm length, and 45 mm width supports versatile installation options in control panels and switchgear assemblies.
Certified to rigorous international safety and quality standards including VDE 0660, UL, IEC/EN 60947, and CSA, the Eaton 290093 DILM15-01(230V50HZ,240V60HZ) contactor aligns with industry compliance requirements for electrical and automation equipment.
Designed for motor control with reversing capabilities. 3-pole configuration suited for efficient switching tasks. Rated at 15.5 A contact current and 7.5 kW power handling. Includes 1 normally closed auxiliary contact for control purposes.
Features screw terminal connectors for secure wiring. Wide operating temperature range (-25°C to 60°C) for various conditions. Compact size allows for flexible installation. Meets multiple international electrical standards for safety and performance.
This Eaton Contactor is ideal for applications in industrial automation, electrical control systems, motor reversing, and manufacturing process controls. Explore the Eaton product category for complementary automation solutions and control gear at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton Contactor has a power rating of 7.5 kW, making it suitable for robust motor loads.
This model has a maximum contact current rating of 15.5 A.
It includes one normally closed (1 NC) auxiliary contact for control signaling.
The coil voltage for this contactor is 400V.
The dimensions are 117 mm in depth, 68 mm in length, and 45 mm in width.
The operating temperature range is from -25°C to 60°C.
It meets several international standards including VDE 0660, UL, IEC/EN 60947, and CSA.
This model uses screw-type terminals for secure wiring connections.
It is designed for motor control applications, including reversing functions in industrial automation and electrical control systems.
The Eaton Contactor features a 3-pole configuration.
The primary function of this contactor is motor control, specifically for reversing motor operations.
Yes, it is suitable for industrial environments due to its robust specifications and wide operating temperature range.
