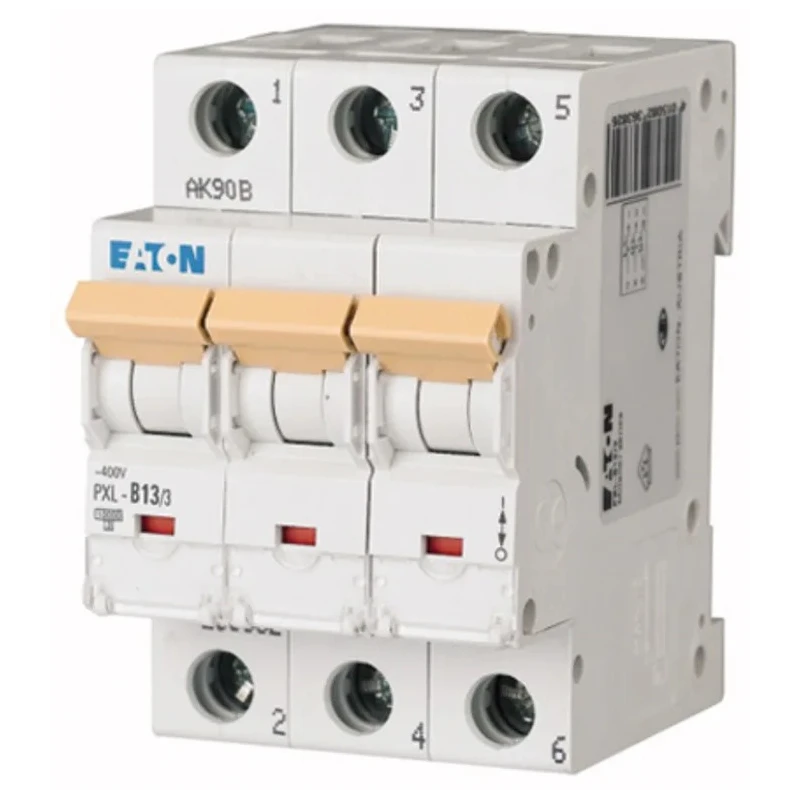

Eaton xPole PXL Miniature Circuit Breaker 3-Pole 13A Type B 400V AC 48V DC 10 kA Breaking Capacity 236382 PXL-B13/3
Specifications
| Country of Origin | Austria |
|---|---|
| Range | xPole |
| Brand | Eaton |
| Height | 52.5mm |
| Model | 236382 PXL-B13/3 |
| Depth | 60mm |
| IP Rating | IP20 |
| Width | 80mm |
| Mount Type | DIN Rail |
| Current Rating | 13A |
| Series | PXL |
| Breaking Capacity | 10kA |
| Number of Poles | 3 |
| Standards/Approvals | EN 60898, IEC |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 48V dc |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Electromagnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
Key Features
- Supports AC voltage up to 400V and DC voltage up to 48V.
- Features type B tripping characteristics for precise protection.
- Breaking capacity rated at 10 kA ensures safety during fault conditions.
- Equipped with toggle switch reset actuator and instantaneous break time.
- Compact dimensions with height 52.5mm, width 80mm, and depth 60mm.
- Designed for DIN rail mounting with finger-proof and back-of-hand protection.
- Compliant with EN 60898 and IEC standards for circuit breakers.
- Produced in Austria with high quality and reliability.
Product Description
Eaton 236382 PXL-B13/3 Miniature Circuit Breaker is a high-quality, industrial-grade 3-pole circuit breaker with a current rating of 13 amperes. It supports an AC voltage rating of 400V and DC voltage rating of 48V, making it suitable for versatile electrical applications requiring multi-voltage protection.
This breaker features type B tripping characteristics, providing protection against overload and short circuit conditions with fast instantaneous response. The electromagnetic tripping mechanism ensures reliable circuit interruption in fault scenarios with a breaking capacity of 10 kA, safeguarding electrical installations and connected equipment.
Designed for DIN rail mounting, the device fits standard IEC/EN 60715 top-hat rails and offers flexible installation on either top or bottom rails. It integrates double terminal connections with lift and jaw options for secure wiring and includes protective features such as back-of-hand and finger-proof barriers for user safety.
The compact dimensions (52.5mm height, 80mm width, 60mm depth) make this circuit breaker suitable for various commercial, industrial, HVAC, manufacturing, and electrical distribution panel applications requiring reliable overload protection and electrical isolation.
3 poles with 13A current rating for multi-phase systems. Type B tripping for sensitive and reliable circuit protection. Instantaneous break mechanism with toggle switch for ease of operation. Compliant with IEC and EN 60898 standards ensuring international quality and safety.
IP20 rated for protection against finger contact and ingress. Manufactured in Austria ensuring superior build quality and durability. Compatible with Eaton’s xPole PXL series and busbar systems for flexible assembly. Suitable for electrical, industrial automation, HVAC, and commercial electrical applications.
Explore the complete range of high-quality Eaton circuit breakers and accessories available for diverse industrial and commercial power distribution applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This miniature circuit breaker has a current rating of 13A.
It supports an AC voltage rating of 400V and a DC voltage rating of 48V.
The breaking capacity is rated at 10 kA, ensuring safety during fault conditions.
It features type B tripping characteristics, providing protection against overload and short circuit conditions.
It is designed for DIN rail mounting, fitting standard IEC/EN 60715 top-hat rails.
The dimensions are 52.5mm in height, 80mm in width, and 60mm in depth.
It includes protective features such as back-of-hand and finger-proof barriers for user safety.
It is compliant with EN 60898 and IEC standards for circuit breakers.
It is equipped with a toggle switch reset actuator for ease of operation.
The tripping mechanism is electromagnetic, ensuring reliable circuit interruption in fault scenarios.
This circuit breaker is manufactured in Austria.
It is suitable for various commercial, industrial, HVAC, manufacturing, and electrical distribution panel applications.
