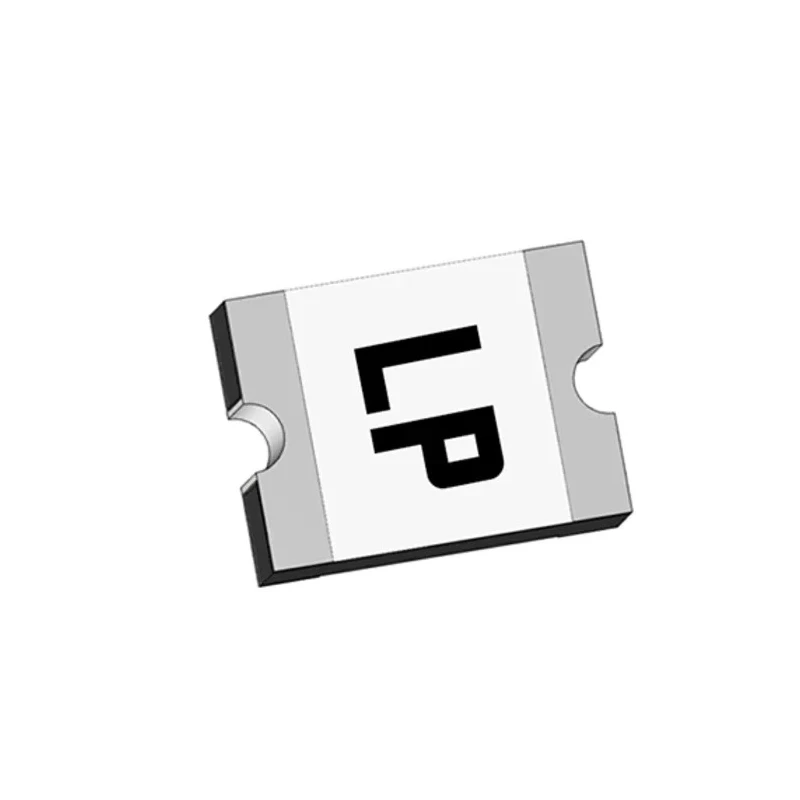

Eaton 5 A Resettable Fuse 6V Low Resistance SMD PTC Fuse with 3.43mm Length PTSLR12106V500

The Eaton PTSLR12106V500 is a 5 A Resettable Fuse operating at 6 V, designed to provide reliable circuit protection in sensitive electronic applications.

This fuse utilizes a low resistance SMD PTC technology with a standard 1210 footprint, making it suitable for modern electronic assemblies requiring compact form factors and high performance.

Key technical features include a hold current of 5 A and a trip current of 10 A with a rapid trip time of approximately 2 seconds, ensuring quick response to overcurrent conditions and preventing damage.

The device measures 3.43 mm in length, 2.8 mm in width, and 1.2 mm in height, suitable for data ports, micromotors, fan circuits, USB device protection, battery charging, and related electronics.

Constructed to operate reliably in ambient temperatures ranging from -40°C to 85°C, the fuse withstands harsh environmental conditions. Power dissipation is rated at 0.8 W, supporting thermal efficiency in compact designs.

It is compliant with UL, cURus, and RoHS standards, reflecting adherence to international safety, quality, and environmental regulations. The product comes packaged as a reel, facilitating streamlined SMT assembly processes in manufacturing.

This resettable fuse belongs to the Bussmann series from Eaton, a trusted brand in electrical protection components. Manufactured in China, it offers consistent performance with minimum resistance of 2 mΩ and maximum resistance of 0.01 Ω, supporting efficient circuit operation.

Holds a steady current of 5 A with a trip current of 10 A. Compact 1210 footprint for space-saving designs. Fast time-to-trip of 2 seconds for quick overcurrent protection. Wide operating temperature from -40°C to 85°C for versatile applications.

Complies with UL, cURus, and RoHS standards. Packaged as a reel for manufacturing efficiency. Power dissipation of 0.8 W to ensure thermal stability. Suitable for data ports, micromotors, fans, USB and battery charging protection.

Part of Eaton's Bussmann series of resettable fuses. Explore more products in the Resettable Fuses category on EnvMart for diverse electrical protection solutions.
