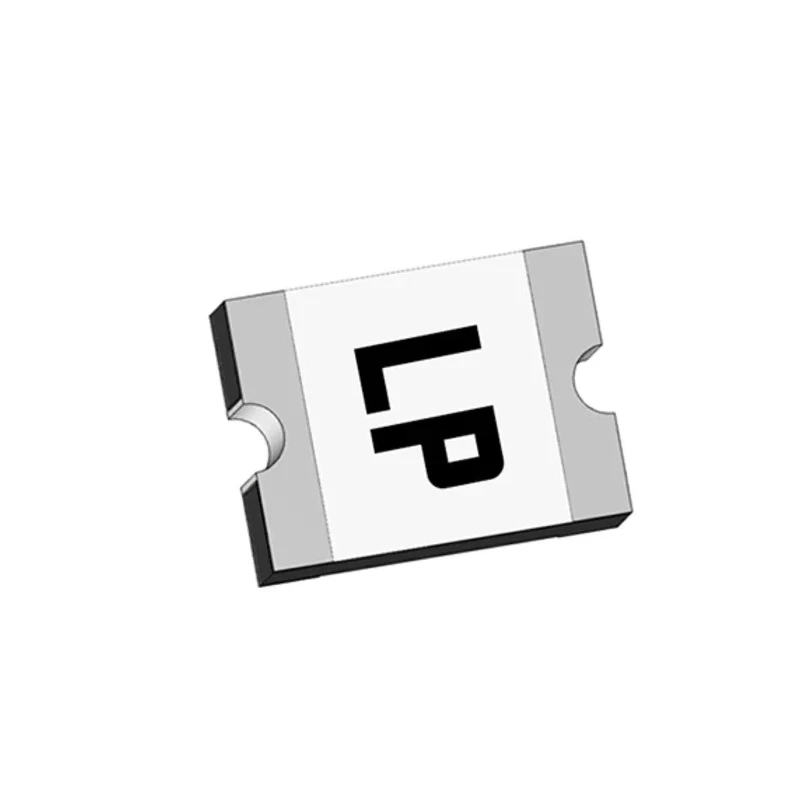

Eaton 3.5 A 6V Resettable Fuse Compact 1210 Footprint Fast Time-to-Trip PTSLR12106V350

The Eaton PTSLR12106V350 is a 3.5 A resettable fuse engineered to provide reliable overcurrent protection in sensitive electronics and low voltage handheld equipment. With a compact 1210 footprint and fast response time, it effectively safeguards data ports, micromotors, fans, USB devices, as well as battery charging and connection circuits.

This surface-mounted device features a hold current of 3.5 A with a trip current of 7 A, allowing for precise current limiting and protection against short circuits or overloads. It exhibits a minimal resistance value of 3 mΩ up to a maximum of 0.02 Ω, ensuring low power loss and efficient circuit operation. The fuse dissipates up to 0.8 watts maintaining stability under operational conditions.

The product supports currents up to 50 A and is rated for use within an operating temperature range from -40°C to 85°C, making it suitable for varied environmental conditions and industrial requirements. It is mounted on a reel package type facilitating automated PCB assembly processes.

Certified to UL, cURus, and RoHS standards, the Eaton PTSLR12106V350 series fuse embodies stringent quality and environmental compliance. Its small size allows integration into PC-based medical equipment and other compact electronic devices where space efficiency is critical.

Originating from China, this resettable fuse is part of the Bussmann series by Eaton, leveraging their renowned electrical protection expertise. Provides overcurrent protection with a hold current of 3.5 A. Designed for data ports, micromotors, fans, USB and battery charging protection.

Compact 1210 SMD design optimizes PCB space utilization. Features low resistance for efficient circuit performance. Time to trip is approximately 2 seconds at trip current. Supports maximum continuous current rating of 50 A.

Power dissipation rating of 0.8 W ensures stable operation. Operates reliably between -40°C to 85°C temperature range. Complies with UL, cURus, and RoHS standards for quality and safety. Explore more Eaton Resettable Fuses and protective components at EnvMart for industrial and commercial applications.
