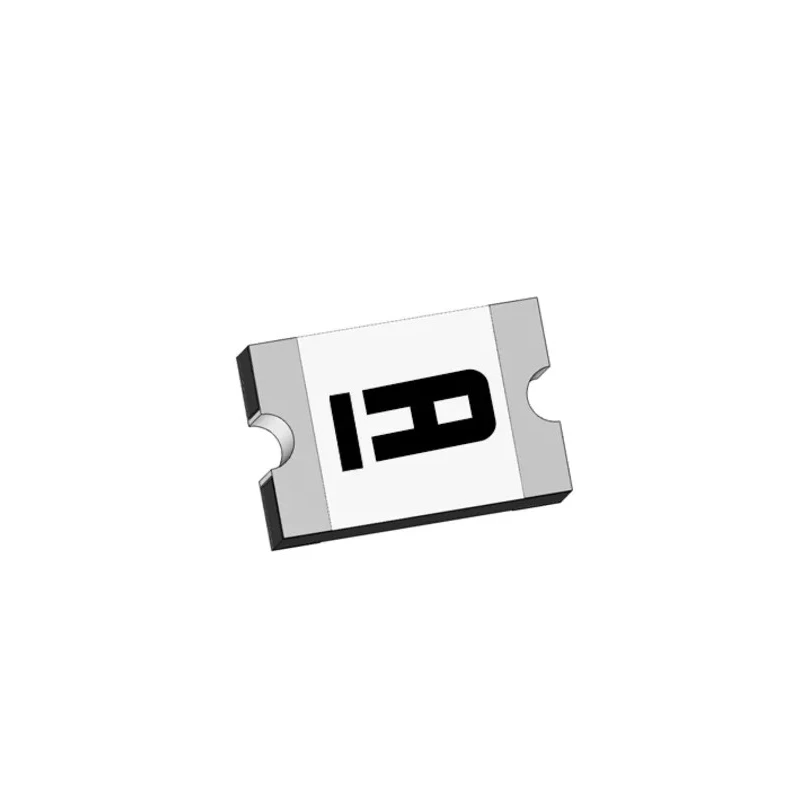

Eaton Resettable Fuse, 1.75 A Hold Current, 6V Voltage, Low Resistance SMD PTC Fuse PTSLR08056V175

Eaton PTSLR08056V175 Resettable Fuse is a high-performance, low resistance SMD PTC fuse rated for 6V operation and 1.75 A hold current. This fuse is designed to provide reliable circuit protection in compact electronic assemblies where space and speed of response are critical.

The small 0805 footprint with dimensions of 2.22 mm length, 1.5 mm width, and 0.7 mm height makes it ideal for integration into data ports, micromotors, fans, USB protection circuits, and battery charging applications. Its fast trip time of 0.6 seconds ensures rapid interruption upon current overload, safeguarding sensitive low voltage handheld and PC-based medical equipment.

Characterized by a minimum resistance of 0.015 Ω and maximum resistance of 0.06 Ω, this fuse maintains circuit integrity with low voltage drop and power dissipation of just 0.6 W. Its operating temperature range from -40°C to +85°C allows it to perform reliably across demanding industrial and commercial temperature environments.

The PTSLR08056V175 belongs to Eaton's Bussmann series and meets UL, cURus, and RoHS certifications, reflecting compliance with rigorous safety and environmental standards. It is supplied in a reel package to facilitate automated assembly procedures.

This resettable fuse is widely used in industrial, laboratory, manufacturing, and electronics applications requiring fast, reliable resettable overcurrent protection to extend equipment lifetime and ensure safety.

Hold current rated at 1.75 A for secure circuit protection. Operates efficiently at 6 volts with a trip current of 3.5 A. Compact 2.22 mm x 1.5 mm x 0.7 mm dimensions suitable for space-constrained designs. Fast time-to-trip of 0.6 seconds to protect low voltage handheld equipment.

Low resistance range from 0.015 Ω minimum to 0.06 Ω maximum. Wide operating temperature from -40°C to 85°C supports varied environments. Power dissipation of 0.6 W ensures minimal energy loss during normal operation. UL, cURus and RoHS approved for international safety and environmental standards.

Available in convenient reel packaging from the Bussmann series. Explore more Resettable Fuses and Eaton products at EnvMart for your electronics protection needs.
