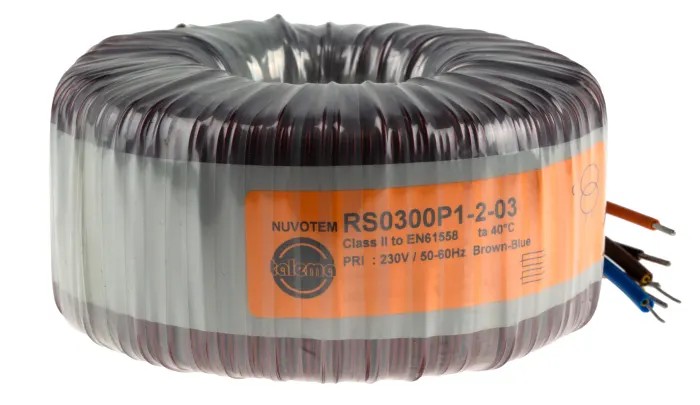

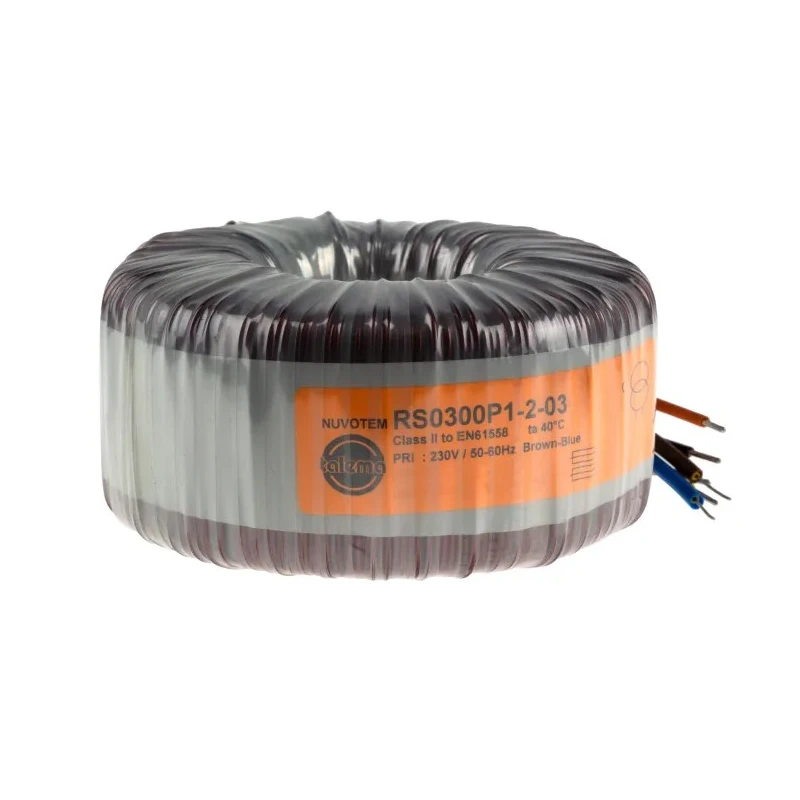

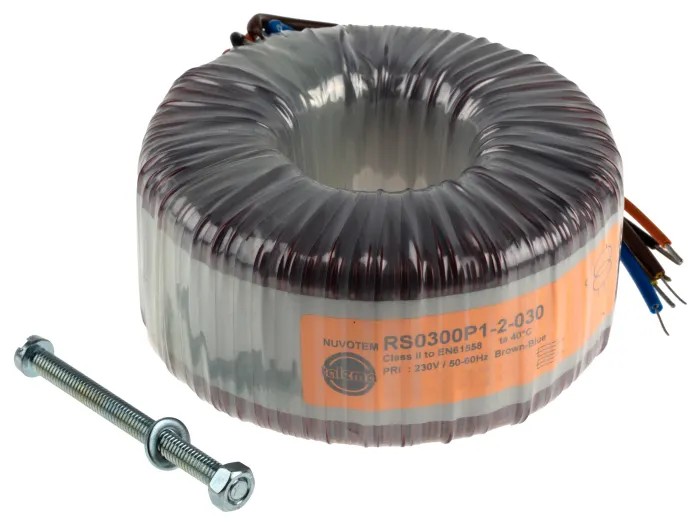

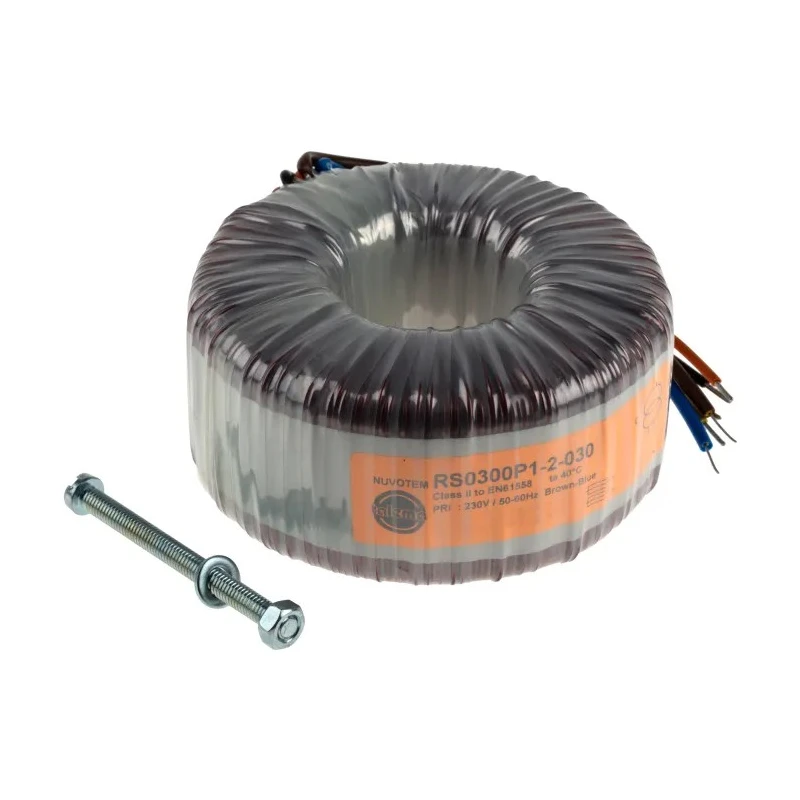

Nuvotem Talema 230 V ac 2 x 25 V ac Toroidal Transformer 2 Output 300 VA 50-60Hz 180°C Maximum Temp 0300P1-2-025K

Nuvotem Talema 0300P1-2-025K is a high-quality toroidal transformer with a primary voltage of 230 V ac and dual secondary outputs of 2 x 25 V ac, capable of delivering 300 VA power.

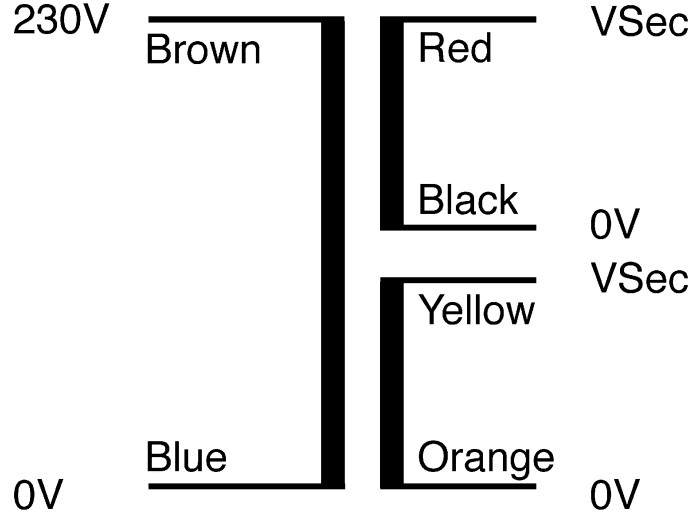

This encapsulated toroidal transformer features twin secondary windings that may be connected in series or parallel or used independently, offering flexible power configurations for various industrial and electronic applications.

Its encapsulation meets UL94-V0 flame retardant standards using Nylon 6.6 case material, enhancing safety and longevity. The transformer operates efficiently with minimal radiated magnetic fields and reduced induced noise (hum), suitable in noise-sensitive environments.

The unit supports an operating frequency range of 50 to 60 Hz and can withstand maximum temperatures up to 180°C, making it ideal for demanding conditions found in industrial power supplies, electronic components, HVAC controls, and manufacturing equipment.

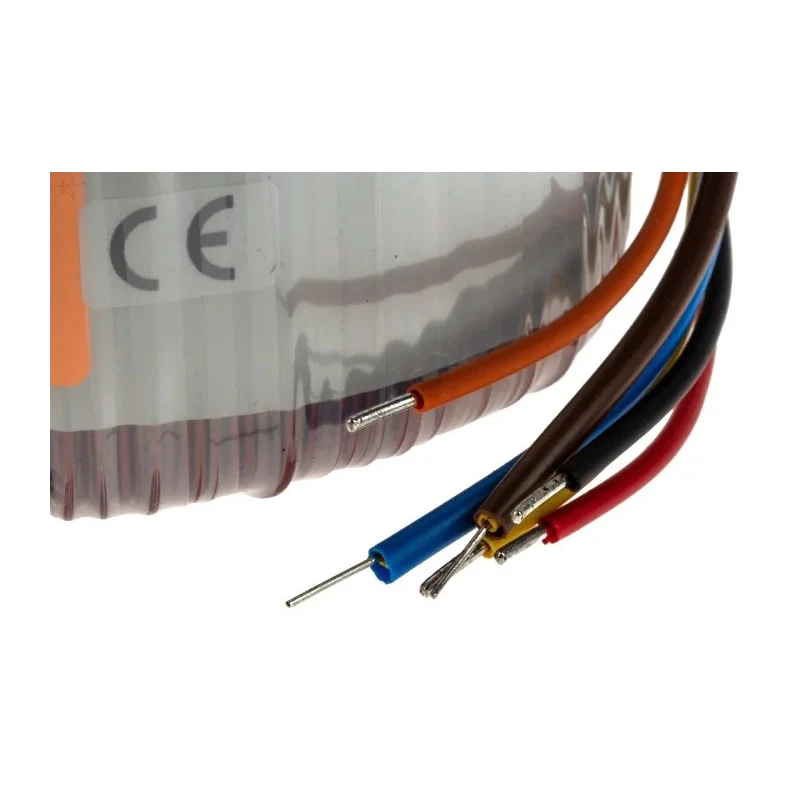

The compact physical dimensions - 125 mm diameter and 58 mm height - with a lightweight design of 2.65 kg facilitate ease of mounting and integration into diverse systems. It features lead terminations for connection simplicity.

Encapsulated toroidal design with low noise and magnetic interference. Dual secondary winding outputs configurable for flexible power setup. High operating temperature tolerance of up to 180°C. Certified to global standards: EN60065, UL506, EN61558, VDE0550, BS415, and UL5.

Compact dimensions and light weight for easy equipment integration. Double insulated primary leads improve safety during operation. Low iron loss and minimal hum contribute to energy efficiency. Suitable for industrial, laboratory, electronics manufacturing, power supply, and HVAC sectors.

Set includes one encapsulated 230 Vac primary Toroidal Transformer designed for reliable performance in commercial and industrial electrical systems. Explore more transformers in the Electronics & Electricals category to find components suited for your specific application requirements.
