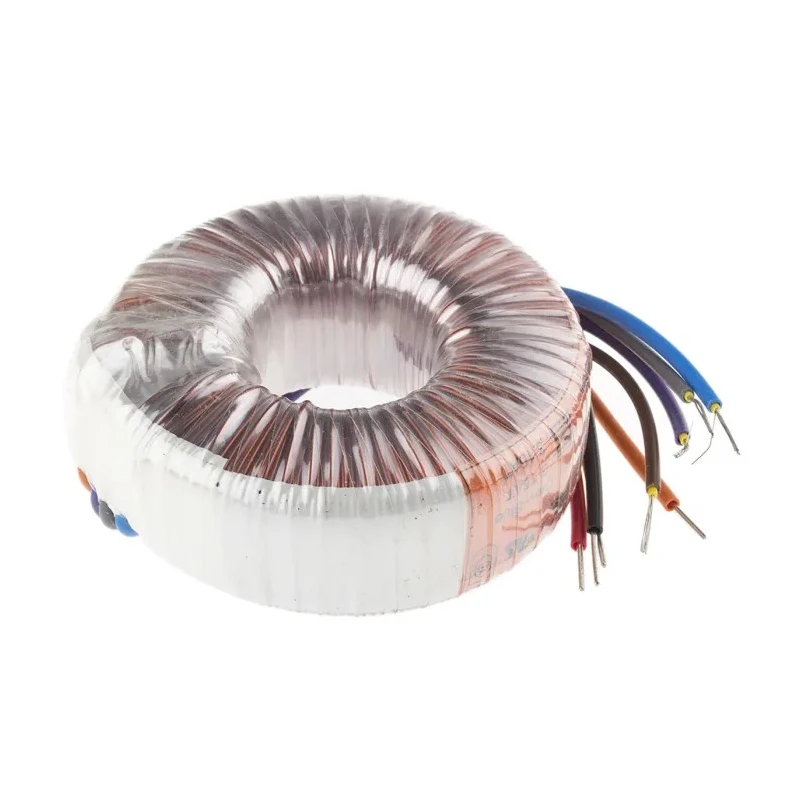

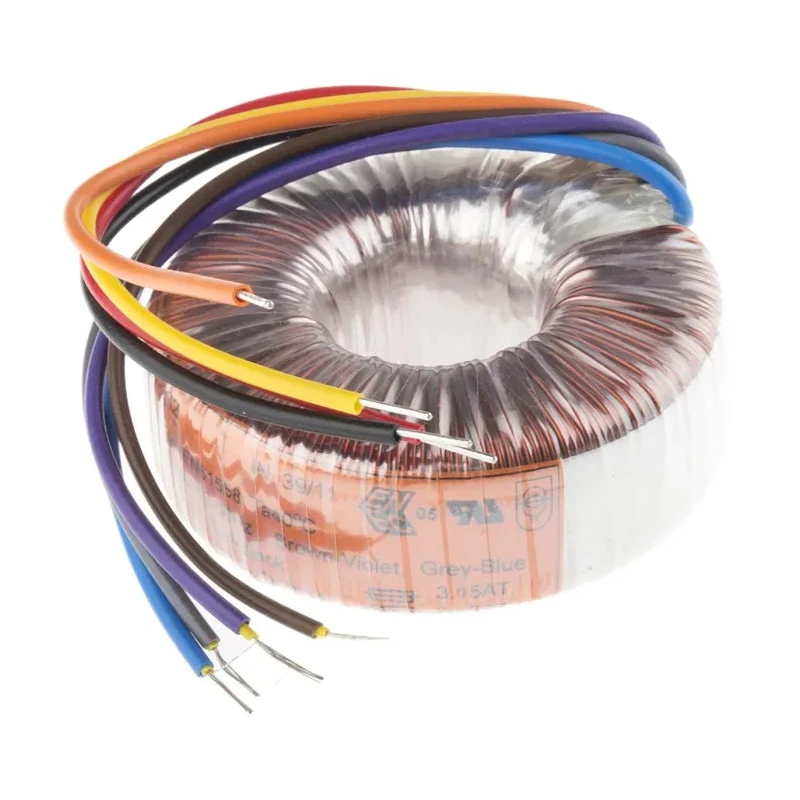

Nuvotem Talema Toroidal Transformer 230 V ac Primary 2 x 9 V ac Secondary 2 Output 50 VA Model 91947-P2S2

Nuvotem Talema 91947-P2S2 is a high-quality toroidal transformer designed for industrial and electronic power applications. It features a 230 V ac primary voltage with dual 9 V ac secondary outputs rated at 50 VA. This model supports a maximum secondary current of 2.778 A and operates efficiently within a frequency range of 50 Hz to 60 Hz.

The transformer has a compact circular design with an 80 mm diameter and 33 mm height, making it suitable for space-constrained installations. Its single primary winding and open toroid center provide very low radiated magnetic fields and minimal noise, contributing to reliable electronic circuit performance.

Constructed to withstand up to 40°C maximum operating temperature, this transformer integrates lead termination type connections and comes supplied with a full mounting kit that facilitates easy and safe installation. It complies with RoHS standards and meets safety approvals such as UL506 and relevant EN standards, ensuring safe and environmentally responsible use.

This Toroidal Transformer is ideal for industrial, laboratory, electronic manufacturing, and power supply applications requiring quiet operation and high efficiency. Its durable construction and certified safety standards make it a trusted choice for professional use.

Features two independent outputs each providing 9 V ac voltage. Maximum secondary current output of 2.778 A for diverse applications. Compact design with 80 mm diameter and 33 mm height for easy mounting. Operates efficiently within 50 Hz to 60 Hz frequency range.

Supports maximum operating temperature up to 40°C ensuring durability. Single primary winding with open toroid center design for low magnetic interference. Equipped with lead termination type for reliable electrical connection.

Supplied with a full mounting kit for convenient installation. RoHS compliant ensuring adherence to environmental standards. Certified to standards EN61558, EN60950, EN60065, and safety approvals including UL506 and EN61558.
