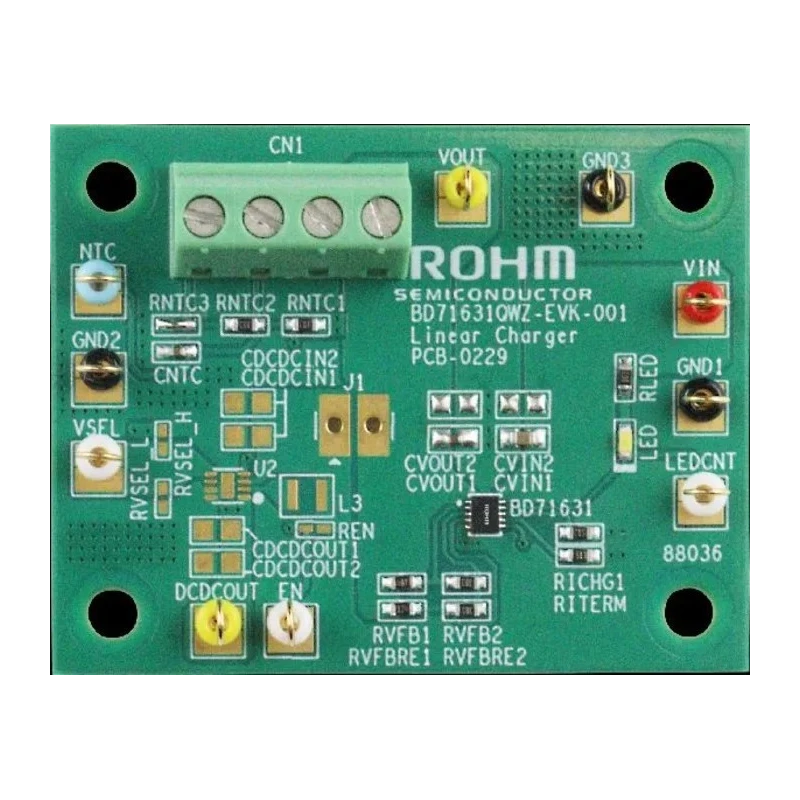

ROHM Evaluation Board for BD71631QWZ Battery Charger Linear Charging IC
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | BD71631QWZ |
| For Use With | BD71631QWZ |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Kit Name | Evaluation Board for BD71631QWZ |
Key Features
- Charges 4.2V from 5V input voltage efficiently.
- Accepts power supply input range from 2.9V to 5.5V.
- Generates charging voltage range 2.0V to 4.7V using external resistors.
- Includes built-in fixed 10-hour safety timer for secure operation.
- Features under voltage lockout and thermal shutdown detection.
- Provides battery over voltage protection for safe charging.
- Designed as an evaluation board for BD71631QWZ linear charging IC.
- Suitable for power management and battery charger development.
Product Description
ROHM BD71631QWZ-EVK-001 evaluation board is designed for evaluating the BD71631QWZ linear charging IC, which offers reliable battery charging solutions. This evaluation board charges batteries at 4.2V from a 5V input voltage source, making it suitable for development and testing of battery management systems requiring precise voltage regulation.
The BD71631QWZ IC supports a wide power supply input voltage range of 2.9V to 5.5V, accommodating different battery types and applications. By using external resistors, the charging voltage can be set from 2.0V up to 4.7V, allowing customization based on battery requirements.
Important safety features integrated on this evaluation board include a fixed 10-hour safety timer that prevents overcharging, under voltage lockout to protect the battery and circuit, thermal shutdown detection to avoid damage from overheating, and battery over voltage protection to maintain battery health and longevity.
This board is RoHS compliant, reflecting adherence to environmental standards for electronic components. It serves as a critical development tool in power management, robotics, and embedded system projects where efficient and safe battery charging is essential.
Applications include electronic development, power supply design, battery charging research, and prototyping for consumer electronics and industrial instruments. Charges 4.2V from a 5V input voltage efficiently. Wide input power supply range from 2.9V to 5.5V provides flexibility.
Customizable charging voltage from 2.0V to 4.7V via external resistors. Built-in fixed 10-hour safety timer ensures safe operation. Under voltage lockout protects system during low voltage events. Thermal shutdown detection prevents damage from overheating.
Battery over voltage protection for battery safety and durability. RoHS compliant for environmental responsibility. Suitable for power, motor, and robotics development tools. Explore more ROHM evaluation boards and power management solutions available at EnvMart for your electronic development needs.
Explore more products in our Battery Chargers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The evaluation board accepts a power supply input range from 2.9V to 5.5V.
It includes a built-in fixed 10-hour safety timer to ensure safe operation during charging.
This board features under voltage lockout, thermal shutdown detection, and battery over voltage protection for enhanced safety.
It is designed to accommodate different battery types due to its wide input voltage range and customizable charging voltage.
The country of origin for this evaluation board is India.
Yes, this evaluation board is RoHS compliant, reflecting adherence to environmental standards for electronic components.
It is suitable for electronic development, power supply design, battery charging research, and prototyping for consumer electronics and industrial instruments.
This evaluation board is specifically designed for the BD71631QWZ linear charging IC.
The primary function is to evaluate the BD71631QWZ linear charging IC for reliable battery charging solutions.
This product is classified as an evaluation board kit.
