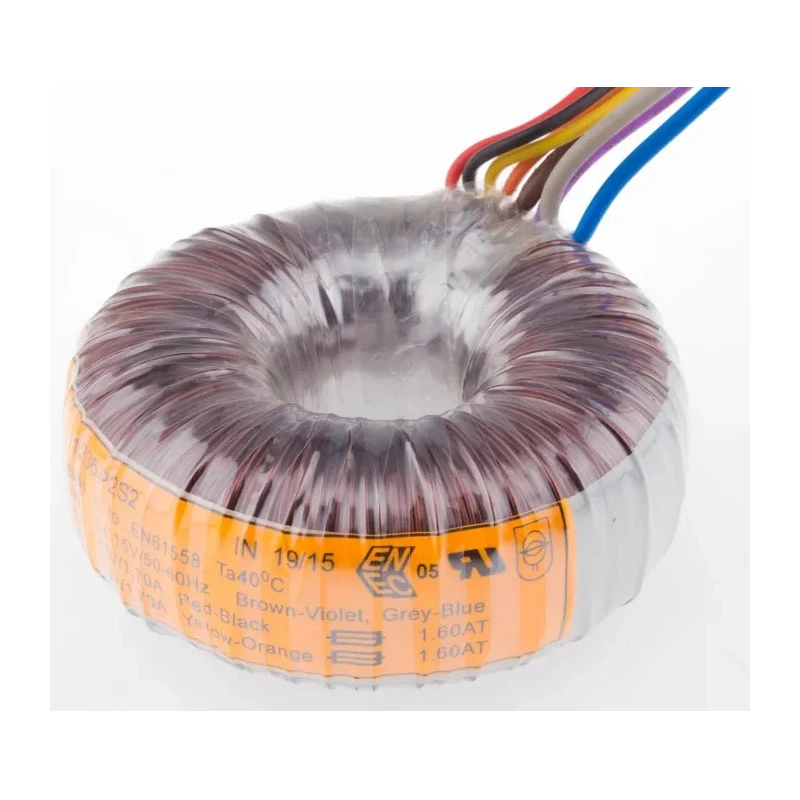

Nuvotem Talema Toroidal Transformer 230 V ac Primary, 2 x 15 V ac Secondary, 2 Output, 50 VA, RoHS 91236-P2S2

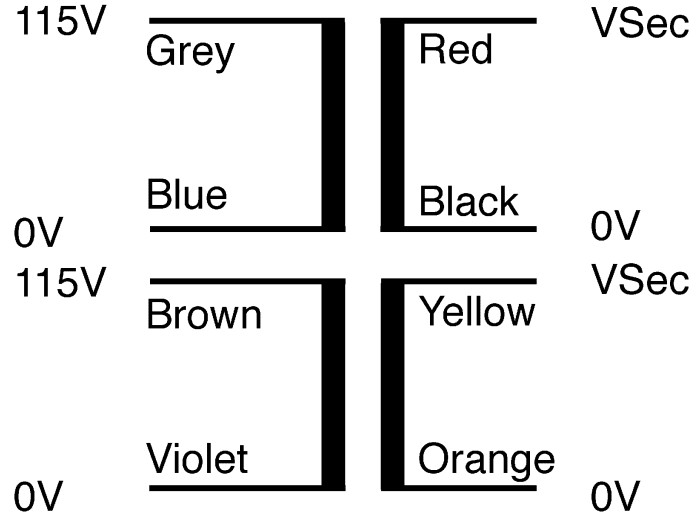

Nuvotem Talema 91236-P2S2 Toroidal Transformer is a high-quality electrical component designed for reliable voltage transformation with minimal noise and magnetic interference. It features a 230 V ac primary winding with twin 115 Vac 50/60 Hz primary windings configurable for 230 V operation. The secondary section provides dual 15 V ac outputs, each capable of delivering 1.667 A current, accommodating diverse electrical supply requirements.

The transformer has a compact form factor with an 80 mm diameter and 33 mm height, making it suitable for confined spaces in electronic assemblies. Its open toroid center and single primary winding design contribute to efficient magnetic flux distribution, reducing losses and hum significantly. The device operates effectively between 50 Hz and 60 Hz frequencies and is rated for a power output of 50 VA, balancing performance and size.

Constructed to meet RoHS environmental standards, this transformer features lead terminations for straightforward electrical connections and comes with a full mounting kit to facilitate secure fixing in chassis or enclosures. The unit also complies with EN61558, EN60950, EN60065, BS415 standards and holds UL506 and EN61558 approvals, demonstrating adherence to international safety and quality benchmarks.

This Toroidal Transformer is ideal for applications in industrial, commercial, and laboratory power supply systems requiring low noise and efficient voltage transformation. It is particularly suited for embedded power supplies, audio equipment, instrumentation, and other sensitive electronic devices needing flexible secondary outputs.

Primary voltage: 230 V ac, twin primary windings configurable for 115/230 V operation. Secondary voltage: 2 x 15 V ac outputs with 1.667 A current capacity. Power rating of 50 VA for compact power applications. Dimensions: 80 mm diameter, 33 mm height for space-efficient installation.

Maximum operating temperature of 40°C ensuring thermal reliability. Open toroid core design with single primary winding for low noise. Lead termination for ease of installation. Compliant with RoHS and multiple international safety standards.

Supplied with full mounting kit for easy chassis integration. Explore more transformers and related electronic components available in the EnvMart catalog to fulfill your industrial and commercial power transformation needs.
