Nexperia 20 V 500 mA Schottky Diode Common Cathode Surface Mount SOT-23 3-Pin PMEG2005CT,215

Free Delivery in India | Lowest Global Shipping Charges

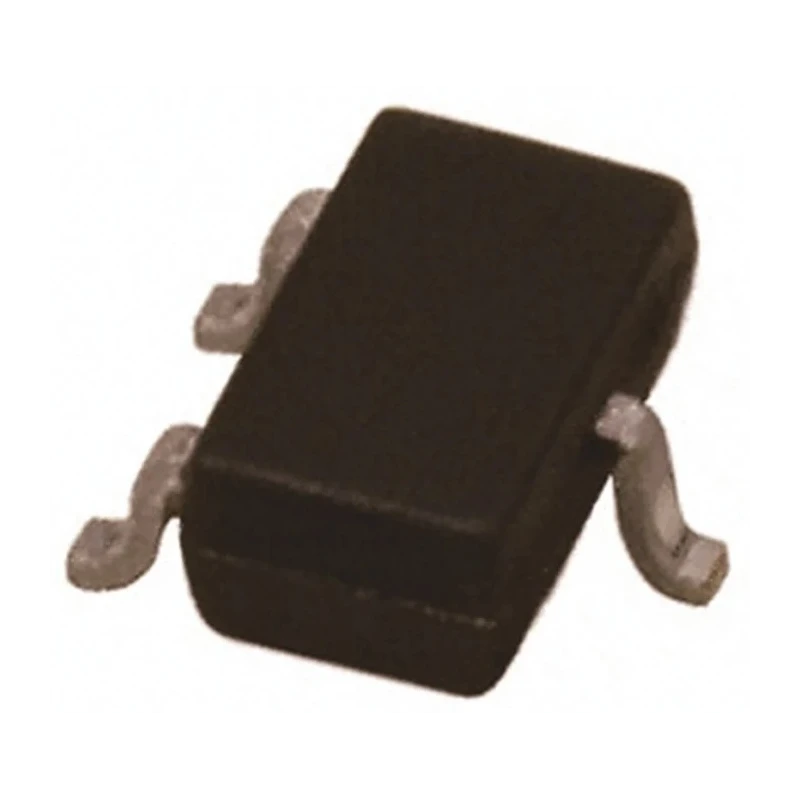

Nexperia 20 V 500 mA Schottky Diode Common Cathode Surface Mount SOT-23 3-Pin PMEG2005CT,215

Name: Nexperia 20 V 500 mA Schottky Diode Common Cathode Surface Mount SOT-23 3-Pin PMEG2005CT,215
Brand: Nexperia
SKU: 292415
Price: 0.15 USD
Availability: InStock



Category Schottky Diode Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1.1mm
Length	3mm
Model	PMEG2005CT,215
Width	1.4mm
Mount Type	Surface
Series	PMEG2005CT
Maximum Operating Temperature	150°C
Package Type	SOT-23
Minimum Operating Temperature	-55°C
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	500mA
Peak Reverse Repetitive Voltage Vrrm	20V
Diode Configuration	Common Cathode
Rectifier Type	Schottky
Peak Reverse Current Ir	200μA
Peak Non-Repetitive Forward Surge Current Ifsm	10A
Maximum Forward Voltage Vf	390mV
Peak Reverse Recovery Time trr	22ns

Key Features

This diode features a common cathode configuration suitable for efficient rectification.
Supports a maximum continuous forward current of 500 mA ensuring reliable performance.
The device offers a low forward voltage drop of 390 mV minimizing power loss.
Peak reverse repetitive voltage rating is 20 V, protecting circuits from voltage spikes.
Extremely low peak reverse current of 200 μA reduces leakage losses.
Wide operating temperature range from -55°C to 150°C makes it suitable for harsh environments.
The diode’s ultra-small, low-profile SOT-23 package allows for compact PCB design.
It meets AEC-Q101 automotive standards confirming high reliability in automotive applications.

Product Description

Nexperia PMEG2005CT,215 is a surface mount Schottky diode designed for low forward voltage and high efficiency in electronic circuits. This diode comes in an ultra-compact 3-pin SOT-23 package with a common cathode configuration optimized for low capacitance and negligible power switching losses.

Rated for a maximum continuous forward current of 500 mA and a maximum forward voltage of 390 mV, it ensures minimal conduction losses. The device withstands peak reverse repetitive voltages upto 20 V with a peak reverse current as low as 200 μA, making it highly suitable for power rectification and switching applications.

Operating reliably from -55°C to 150°C, it can endure harsh industrial, automotive, and commercial environments. The diode also supports a high peak non-repetitive forward surge current of 10 A and features a fast peak reverse recovery time of 22 ns for efficient switching performance.

This component is compliant with the automotive industry standard AEC-Q101, underscoring its suitability for automotive electronics.

Typical applications include DC-DC converters, power management in industrial automation, automotive electronics, and other semiconductor discrete device circuits requiring efficient low-voltage rectification.

Common cathode Schottky diode in a compact SOT-23 3-pin package. Low forward voltage drop of 390 mV reduces power dissipation. High continuous forward current rating of 500 mA for robust operation. Wide operational temperature (-55°C to 150°C) supports diverse environments.

AEC-Q101 automotive qualified for reliability in vehicle electronics. Fast switching with 22 ns peak reverse recovery time minimizes switching losses. Ultra-low leakage current and capacitance suit high frequency applications.

Set contains 1 Pc Nexperia PMEG2005CT,215 Schottky Diode. Explore more semiconductor and discrete diode products in our Electronics & Electricals category at EnvMart.
