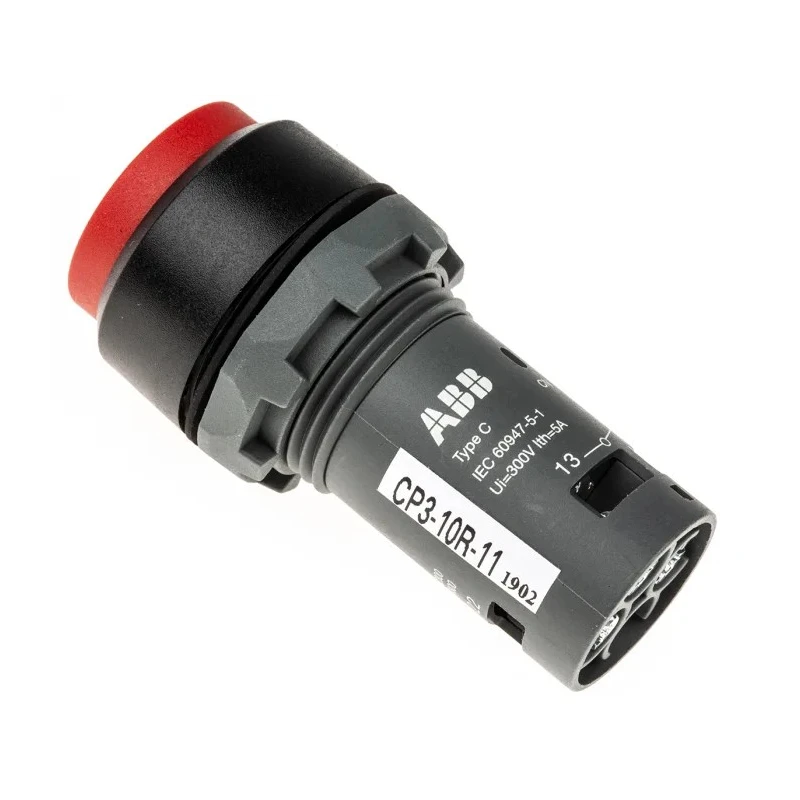

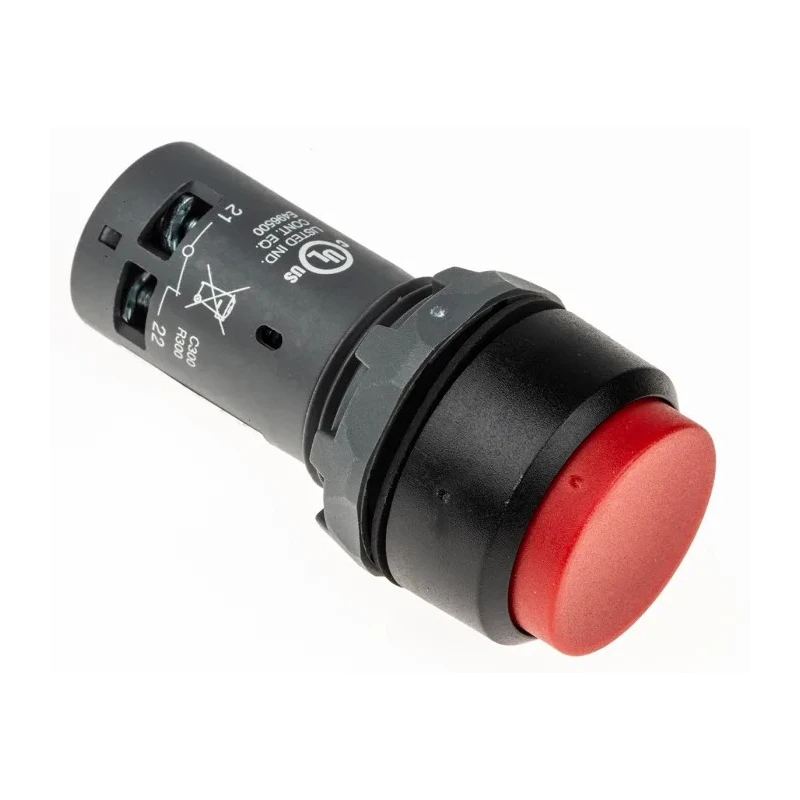

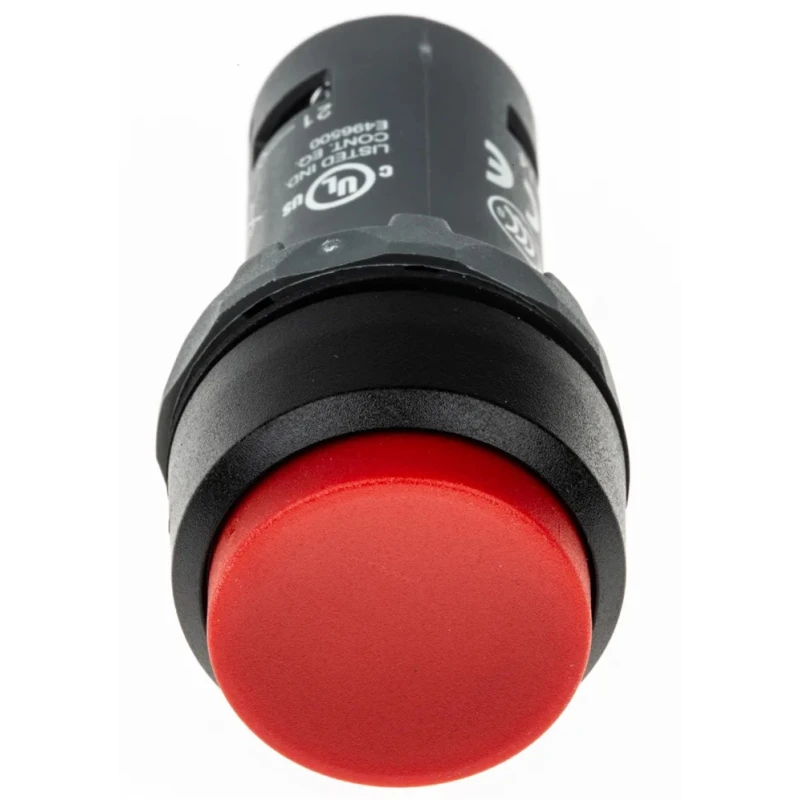

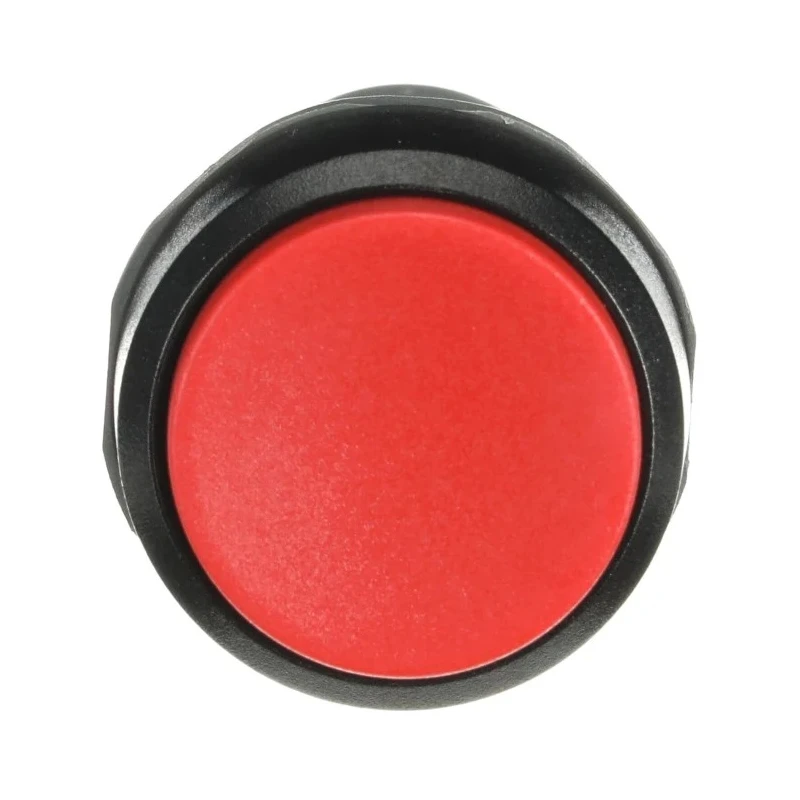

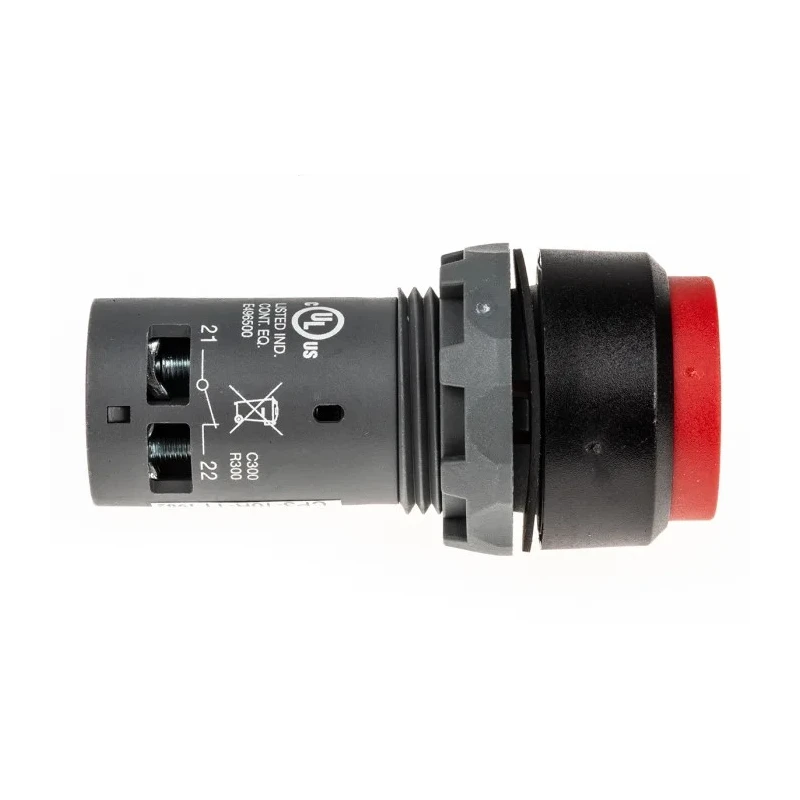

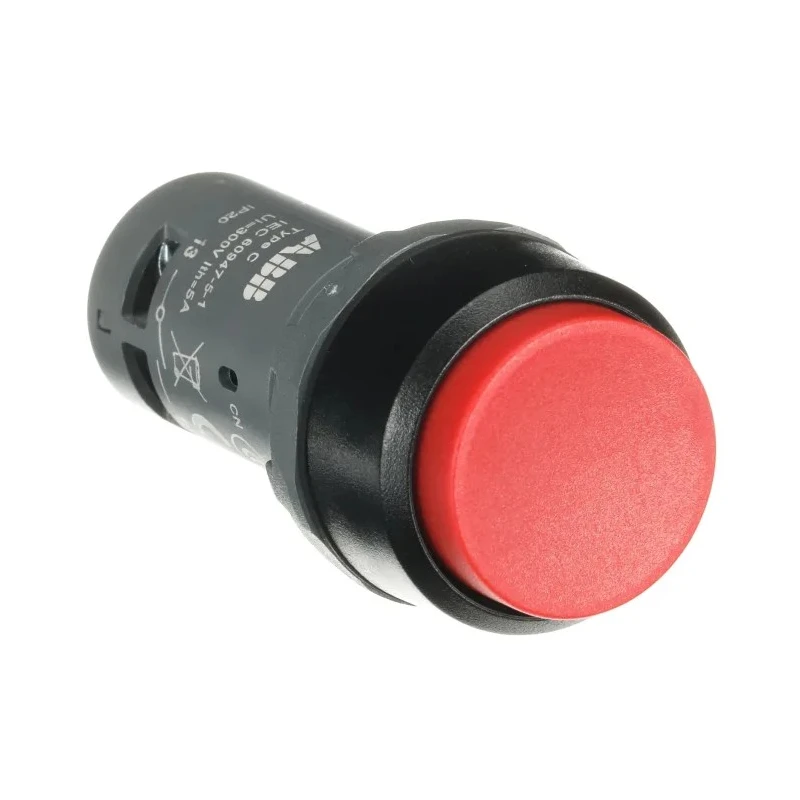

ABB Compact Series Push Button Switch, Momentary, Panel Mount, Red Round Actuator, 22 mm Cutout 1SFA619102R1071 CP3-10R-11



Category Push Button Switch Brand ABB Condition New

Specifications

Country of Origin	China
Brand	ABB
Height	30mm
Length	55mm
Model	1SFA619102R1071 CP3-10R-11
IP Rating	IP69K
Width	30mm
Mount Type	Panel
Series	Compact
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Minimum Operating Temperature	-25°C
Panel Cutout Size	22 mm
Terminal type	Screw
Switch Operation	Momentary
Actuator Colour	Red
Contact DC Voltage	250V
Actuator Style	Round
Switch Contact Current	2A
Contact AC Voltage	240V
ABB Compact Series Push Button, Panel Mount, 22mm Cutout, SPDT, IP66, IP67Brand	ABB

Key Features

The switch operates momentarily with a tactile red round button.
It fits a panel cut-out size of 22 mm for easy installation.
Screw terminals enable secure and maintenance-friendly field wiring.
Compact design with a bezel footprint of 30 mm by 30 mm and 55 mm length for panel depth planning.
High ingress protection rating (IP69K) ensures resistance to dust and water.
Wide operating temperature from -25°C to 70°C suits harsh industrial environments.
Complies with IEC 947-5-5 and EN 60204 standards for control circuit components.
Suitable for industrial control panels, automation stations, and machinery start/stop functions.

Product Description

ABB 1SFA619102R1071 CP3-10R-11 Compact Series Push Button Switch is a robust, momentary-type, panel-mounted control switch designed for industrial automation and control systems. Featuring a red round actuator with a 22 mm panel cutout, this switch offers reliable tactile feedback for operator interface applications.

The switch has an SPDT contact configuration that supports 2A current ratings at 250 V DC and 240 V AC voltages. It includes screw terminal connections to facilitate secure and straightforward wiring during installation or maintenance.

Engineered with IP69K ingress protection, the switch is highly resistant to dust, water jets, and wash-down cleaning processes, making it suitable for demanding industrial and commercial environments. Its operating temperature range of -25°C to 70°C ensures dependable performance across a broad environmental spectrum.

This product conforms to IEC 947-5-5 and EN 60204 electrical control standards, reinforcing its reliability and safety in control circuit applications. Its compact bezel dimensions of 30 mm x 30 mm and depth of 55 mm allow for versatile mounting within standard industrial panels.

The switch operates momentarily with a red round actuator for start/stop or signalling functions. Panel mounting requires a 22 mm round cutout for straightforward installation. SPDT contacts allow single-pole double-throw switching in control circuits.

Screw terminal connections enable secure wiring and ease of maintenance. Rated for 2A contact current with 250 V DC and 240 V AC voltage capabilities. IP69K rating provides high ingress protection against dust and water.

Wide temperature tolerance from -25°C to 70°C supports diverse industrial environments. Meets IEC 947-5-5 and EN 60204 control circuit standards for safety and performance.

This panel push button switch is ideal for use in industrial control panels, machine automation start/stop stations, PLC manual overrides, reset functions, and in mobile or fixed electrical enclosures requiring robust sealing and reliability.
