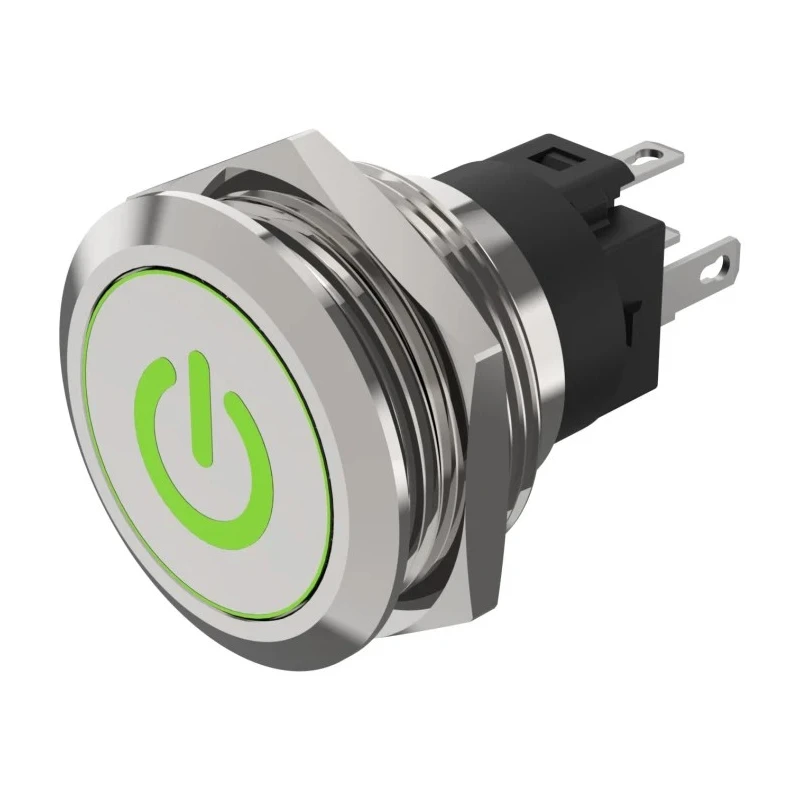

EAO 82 Series Illuminated Push Button Switch Momentary Panel Mount SPDT Green Red LED IP65 IP67 240 V 82-6151.1AA4.B002



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Model	82-6151.1AA4.B002
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	Momentary
Minimum Operating Temperature	-30°C
Panel Cutout Size	22.3 mm
Standards/Approvals	cUL, CB, CCC, UL
LED Colour	Green, Red
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	240V dc
Switch Contact Current	3A
Contact AC Voltage	240V ac
Legend	Standby Symbol

Key Features

The actuator is silver coloured, made of stainless steel 304 for durability.
Designed for momentary switch operation with excellent tactile feedback.
Vandal-resistant with IK10 impact protection suitable for exposed public areas.
Suitable for 240 V AC/DC operation with a maximum switch contact current of 3 A.
Featuring bi-colour LED illumination with green and red standby symbols.
Front protection rated IP65 and IP67 for dust and water ingress resistance.
Operating temperature range from -30°C to 70°C for robust industrial use.
Long service life exceeding 1 million operation cycles ensures reliability.

Product Description

The EAO 82-6151.1AA4.B002 is a premium illuminated push button switch designed for panel mounting with a 22.3 mm cutout diameter. Featuring a momentary SPDT switch configuration and robust bi-colour LED illumination in green and red, this switch delivers excellent functionality and status indication for various industrial and commercial control panels.

Constructed with stainless steel 304 for the silver actuator, this switch provides exceptional vandal resistance with an IK10 impact rating and front ingress protection up to IP67, making it suitable for harsh environments such as exposed public areas and heavy-duty industrial machinery.

It supports both AC and DC operation at 240 V with a contact current rating of 3 A, ensuring reliable electrical performance. The momentary switch action combined with long service life of over 1 million cycles allows for sustained operational durability.

The bi-colour LED illumination with green and red LEDs displays standby and active statuses clearly, enhancing operator interface in access control, ticketing, medical equipment, and food industry applications. The switch operates efficiently under a wide temperature range from -30°C to 70°C, making it adaptable to diverse industrial settings.

Silver actuator made of stainless steel 304 provides robust durability. Momentary SPDT switch operation with tactile feedback. Bi-colour green and red LED illumination for clear status indication. Vandal-resistant to IK10 impact standards with IP65/IP67 front protection.

Supports 240 V AC/DC electrical operation with 3 A contact current. Operating temperature range: -30°C to 70°C suitable for harsh environments. Long life expectancy over 1 million operation cycles. Applications include industrial machinery, elevators, security systems, medical and food industry equipment.

Manufactured in Switzerland with cUL, CB, CCC, and UL approvals.

This EAO 82 series push button switch is one of the most reliable industrial panel switches available, designed to meet stringent durability and operational standards across multiple sectors. Suitable for electrical control panels, automation systems, and user interface devices.

For engineers and procurement specialists seeking robust, high-quality Push Button Switches, explore the wide range of EAO switches in this category at EnvMart.
