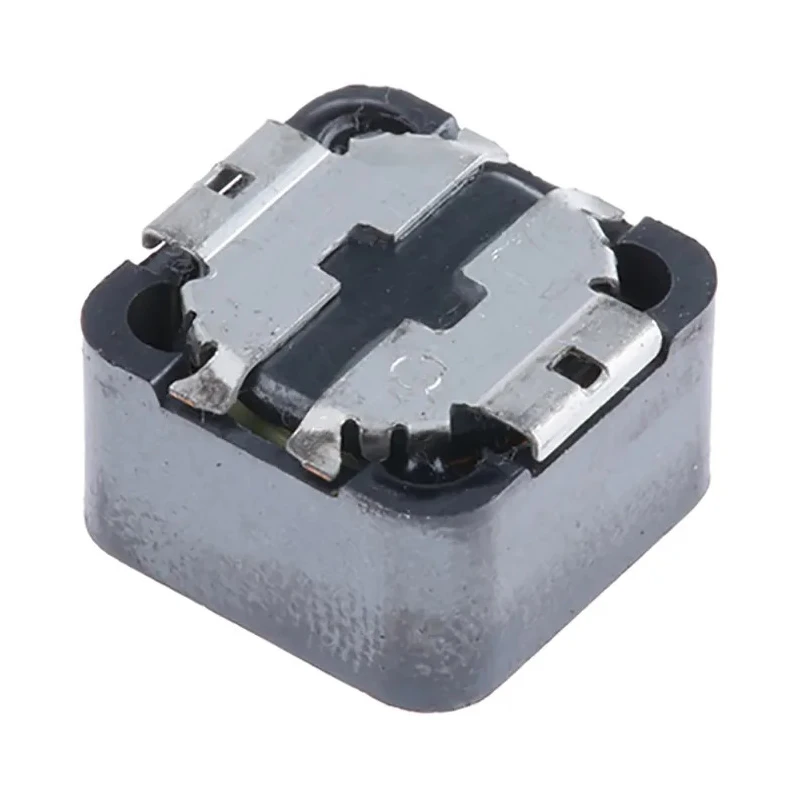

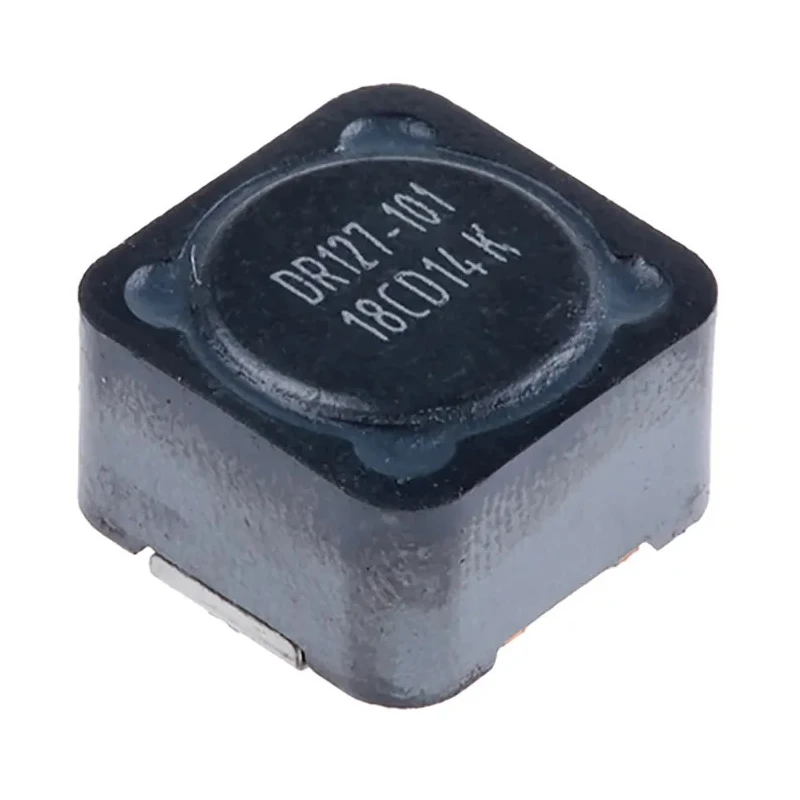

Eaton DR127-101-R Wirewound Shielded Surface Mount Inductor with Ferrite Core 100 μH ±20 % 3.64A IDC

The Eaton DR127-101-R is a shielded wirewound Surface Mount Inductor designed to deliver reliable performance and reduce electromagnetic interference in sensitive electronic circuits.

Constructed with a durable ferrite core and wirewound design, this inductor provides an inductance of 100 μH with a tolerance of ±20 % and supports a maximum DC current of 3.64 A. Its magnetic shielding enables operation in noise-sensitive environments, making it suitable for computers, DVD players, portable devices, and LCD panels.

Key features include a compact 0127 package size measuring 12.5 mm in length and 8 mm in height, with a depth of 12.5 mm. The surface mount termination style facilitates automated PCB assembly and integration in high-density circuit boards. It is rated for operation between -40°C and 125°C, ensuring stability over a broad temperature range.

This series is well-suited for applications including DC-DC converters, buck and boost converters, forward and resonant converters, as well as noise filtering and filter chokes in industrial, computing, and commercial electronics.

Magnetically shielded to minimize EMI in compact electronic assemblies. Ferrite core construction enhances inductance and efficiency. High temperature rating (up to 125°C) for robust operation. Surface mount termination style supports efficient PCB production.

Compliant with RoHS standards for environmental safety. Maximum DC resistance of 163 mΩ ensures low power loss. Maximum self-resonant frequency of 100 kHz suitable for high-frequency filtering. Packaging on reels allows streamlined manufacturing handling.

Choose the Eaton DR127-101-R for dependable performance in demanding touchscreen, power filtration, and signal conditioning roles. Explore more in the Electronics Components category for complementary passive components and inductors.
