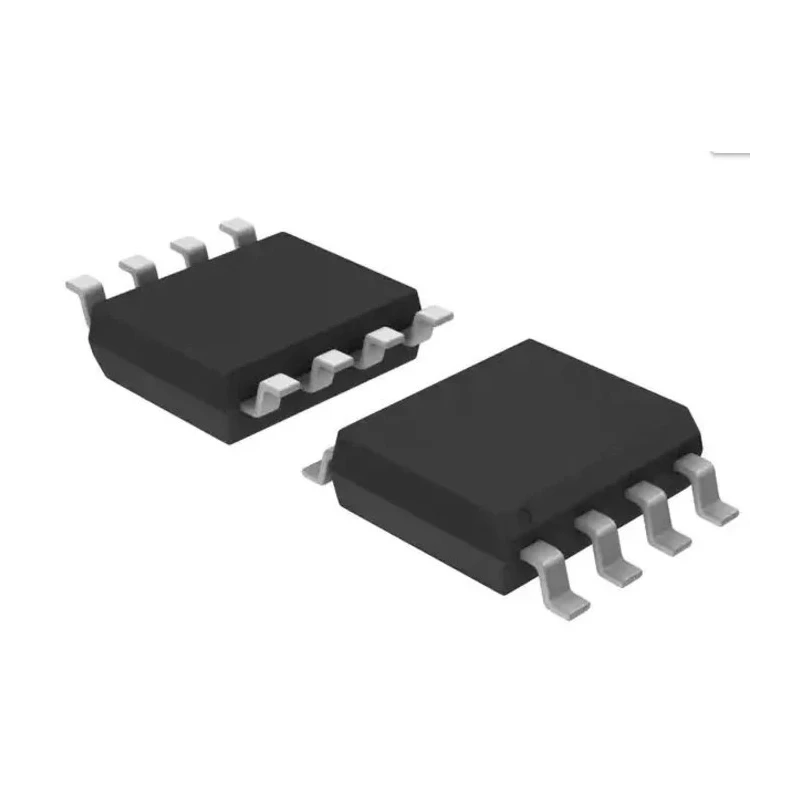

Microchip 16 kB EEPROM 100 ns 8-Pin SOIC Serial-Microwire 93C86C-I/SN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 4.9mm |
| Model | 93C86C-I/SN |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | 93C86C |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Memory size | 16kB |
| Interface Type | Serial-Microwire |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Organisation | 1024 x 16 bit |
| Number of Bits per Word | 16 |
| Maximum Random Access Time | 100ns |
| Number of Words | 1024 |
Key Features
- Operates on a supply voltage range of 4.5 to 5.5 volts.
- Optimized for consumer, industrial, and automotive non-volatile memory applications.
- Features a 3-wire serial Microwire interface supporting up to 3 MHz clock speed.
- Offers 1024 words of 16 bits each with hardware-selectable word size via the ORG pin.
- Supports automatic erase before write cycles with self-timed operations within 2 milliseconds.
- Data retention of up to 200 years ensuring reliable long-term storage.
- Wide operating temperature range from -40°C to 85°C suitable for harsh environments.
- Low power consumption with read current typically 100 µA and standby current 1 µA max.
Product Description
Microchip 93C86C-I/SN is a 16 kB EEPROM designed for reliable non-volatile memory storage in consumer, industrial, and automotive applications. It operates with a supply voltage from 4.5 V to 5.5 V and features a fast 100 ns maximum random access time. The memory is organized as 1024 words of 16 bits, selectable using the ORG pin, and communicates via an industry-standard 3-wire serial Microwire interface compatible with clock speeds up to 3 MHz.
This EEPROM offers automatic erase-before-write functionality with self-timed erase and write cycles taking no longer than 2 milliseconds, ensuring efficient data updates. Its ultra-low power consumption includes a typical read current of 100 µA and standby current of just 1 µA, making it suitable for battery-powered and energy-sensitive devices. The device ensures data retention for up to 200 years and complies with RoHS environmental standards.
Designed for a broad temperature range of -40°C to 85°C, this SOIC surface-mount package provides a compact footprint with dimensions 4.9mm x 3.9mm x 1.5mm. The 8-pin configuration allows easy integration into various electronic systems requiring dependable non-volatile memory solutions.
Supply voltage: 4.5 to 5.5 V. Memory organization: 1024 x 16 bits. Maximum random access time: 100 ns. Serial Microwire (3-wire). Data retention: 200 years. Operating temperature: -40°C to 85°C. Package: 8-pin SOIC, surface mount.
RoHS compliant.
This EEPROM is ideal for industrial, automotive, laboratory, and consumer electronic devices requiring robust, durable, and efficient memory solutions. Browse related semiconductor memory products and compatible interfaces on EnvMart for seamless integration and reliable performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a memory size of 16 kB, organized as 1024 words of 16 bits each.
The maximum random access time for the 93C86C-I/SN is 100 ns.
It operates on a supply voltage range of 4.5 to 5.5 volts.
This model features a 3-wire serial Microwire interface, supporting clock speeds up to 3 MHz.
The operating temperature range is from -40°C to 85°C, making it suitable for harsh environments.
The typical read current is 100 µA, with a maximum standby current of 1 µA.
The memory is organized as 1024 words of 16 bits, with selectable word size via the ORG pin.
It comes in an 8-pin SOIC surface-mount package.
Yes, it supports automatic erase before write cycles with self-timed operations taking no longer than 2 milliseconds.
This EEPROM is RoHS compliant, ensuring it meets environmental standards.
The height of this model is 1.5 mm.
It is optimized for consumer, industrial, and automotive non-volatile memory applications.
