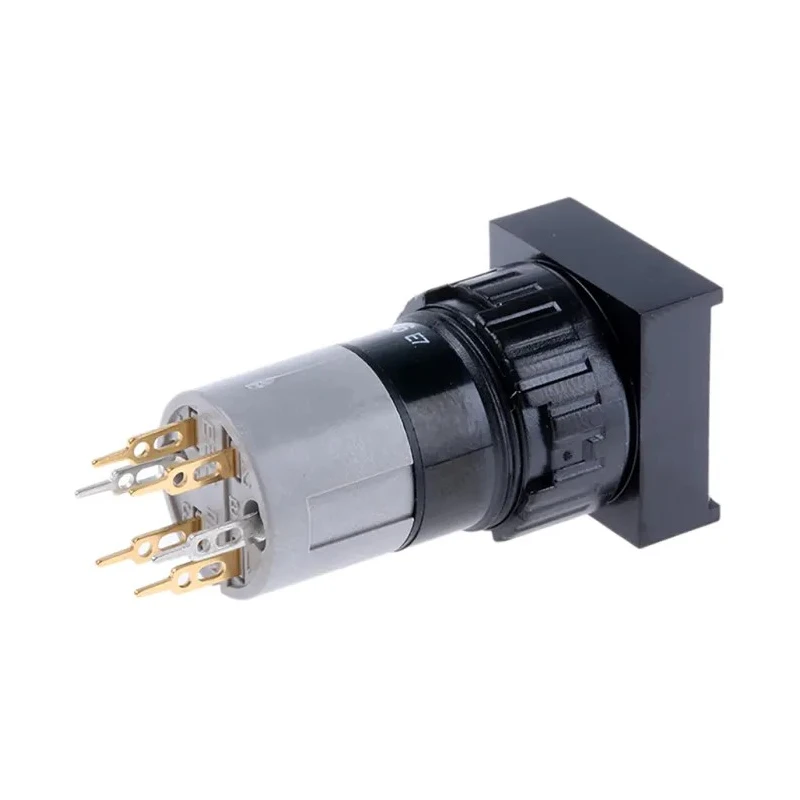

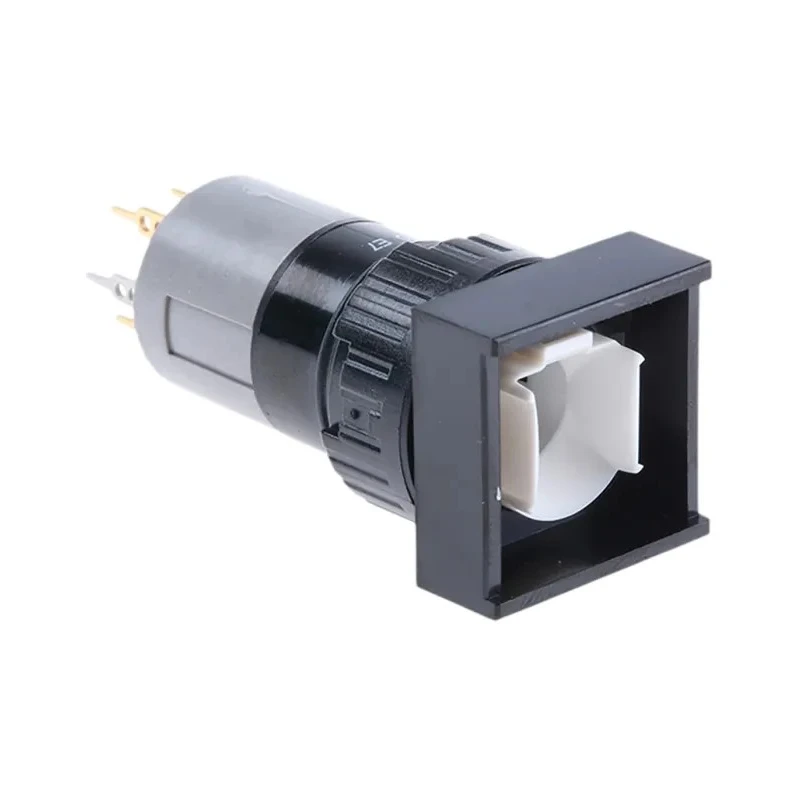

EAO Illuminated Push Button Switch Swiss Origin Button Actuator RoHS Compliant 31-453.036

EAO 31-453.036 Illuminated Push Button Switch is designed for diverse Human Machine Interface (HMI) panel mounting applications such as process control, panel building, machinery, and instrumentation in industrial, manufacturing, and automation sectors.

The 31 series Push Button Switches by EAO feature an 18mm diameter round bezel and a button actuator that offers easy and quick operation. Illumination is provided by a T1 ¾ midget groove filament lamp or a single chip LED operating between 6V and 48V, suitable for visual indication on panels. For voltage higher than 48V, an external resistor is recommended.

This switch includes versatile switching elements: a double-break snap action element for high reliability in power switching, and a low level element designed for electronic circuit switching with a range from 10μA at 100μV up to 100mA at 42Vac/dc, complete with solder or PCB terminals.

Installation requires a 16mm panel cut-out and fits panels with thicknesses ranging from 1.5mm to 6mm. The button profile is raised and the switch housing material is self-extinguishing, meeting Class II electrical safety standards. Electrical strength tests validate endurance at 2500Vac 50Hz for one minute between terminals and earth following IEC 60512-2-11 standards.

Suitable for industrial automation, laboratory equipment, manufacturing plants, and electrical control panels. Configurations available include momentary and maintained switching actions with normally open or normally closed contacts.

Long operational life, stable contact resistance, and short rebound action ensure reliable performance. Illuminated operation using filament lamp or LED enhances visibility of switch status. Constructed to RoHS compliance standards ensuring environmental and safety adherence.

Compact and robust design for demanding industrial and commercial applications. Supports use in process control, instrumentation, panel building, and machinery control interfaces.

Package contents do not include lenses or indicator lamps; these are ordered separately with typical stock numbers for LEDs and filament lamps available for easy integration. Full accessory support available including lenses, indicators, and toolkit for installation and maintenance.

Manufactured in Switzerland, the EAO 31 series maintains high standards of quality and durability expected in professional electrical components. Explore more reliable switches and actuators in the Electronics & Electricals category at EnvMart for complete industrial automation solutions.
