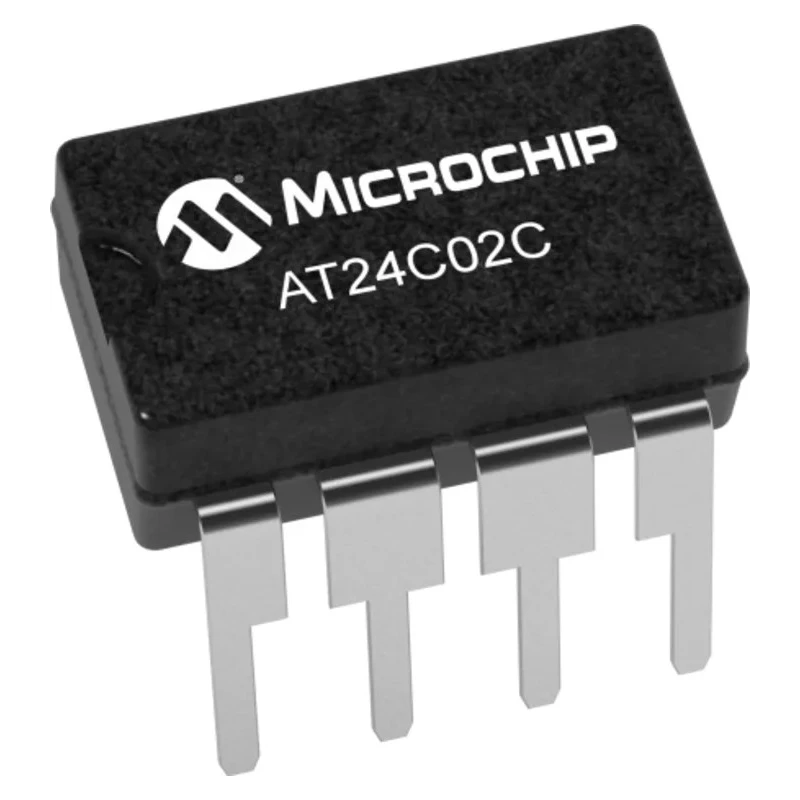

Microchip 2 kB Serial-I2C EEPROM, 550 ns Access Time, 8-Pin PDIP Package AT24C02C-PUM
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.9mm |
| Length | 10.16mm |
| Model | AT24C02C-PUM |
| Width | 7.11mm |
| Mount Type | Surface |
| Series | AT24C02C |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Memory size | 2kB |
| Interface Type | Serial-I2C |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.7V |
| Supply Current | 3mA |
| Maximum Clock Frequency | 1MHz |
| Organisation | 256 x 8 bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 550ns |
| Number of Words | 128256 |
Key Features
- Memory size of 2 kB organized as 256 x 8 bit words.
- Supports Serial-I2C interface with maximum clock frequency of 1 MHz.
- Operates over supply voltage range of 1.7 V to 5.5 V.
- Features low power consumption with 3 mA supply current.
- Wide operating temperature range from -40°C to 85°C.
- Supports 8-byte page write and single byte write modes.
- Includes write-protect pin for hardware data protection.
- Offers bidirectional data transfer protocol with Schmitt triggers and noise filtered inputs.
Product Description
Microchip AT24C02C-PUM is a 2 kB EEPROM memory chip designed for serial communication applications using the I2C interface. Housed in an 8-pin PDIP package, this device supports reliable data storage with a maximum random access time of 550 ns, making it suitable for high-speed memory access requirements.
The device operates within a wide voltage range from 1.7 V to 5.5 V and supports a maximum clock frequency of 1 MHz, facilitating efficient data transfer in various electronic circuits. It features low power consumption with a supply current of 3 mA, supporting battery-sensitive and low-power designs.
With an operating temperature range of -40°C to 85°C, the EEPROM is built to perform in demanding industrial and commercial environments. The 8-byte page write mode enhances programming efficiency, while the write-protect pin safeguards the entire data array from unintentional writes.
Additional features include Schmitt trigger inputs for noise suppression and a bidirectional data transfer protocol, providing robustness against signal interference. The compact physical dimensions of 10.16 mm length, 7.11 mm width, and 4.9 mm height make it a suitable choice for compact PCB layouts.
Memory size of 2 kB organized as 256 x 8 bit words. Supports Serial-I2C interface with maximum clock frequency of 1 MHz. Low power consumption with 3 mA supply current. Wide operating temperature range from -40°C to 85°C for industrial reliability.
Write-protect pin provides full array hardware data protection. 8-pin PDIP package for through-hole mounting compatibility. Data retention of 100 years ensures long-term storage reliability. Schmitt triggers and filtered inputs decrease noise susceptibility.
Supports random and sequential read modes for flexible memory access. Ideal for use in embedded systems, consumer electronics, automotive and industrial applications. Explore Microchip's full inventory on EnvMart for high-quality EEPROMs and semiconductor memory solutions to match your electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The memory size of this EEPROM is 2 kB, organized as 256 x 8 bit words.
It supports a maximum clock frequency of 1 MHz for efficient data transfer.
The device operates over a supply voltage range of 1.7 V to 5.5 V.
The maximum random access time is 550 ns, suitable for high-speed memory access requirements.
It operates within a wide temperature range from -40°C to 85°C, making it suitable for industrial applications.
This EEPROM supports a Serial-I2C interface for communication.
The dimensions are 10.16 mm in length, 7.11 mm in width, and 4.9 mm in height.
Yes, it includes a write-protect pin for hardware data protection against unintentional writes.
The supply current is 3 mA, contributing to its low power consumption.
It supports both 8-byte page write and single byte write modes for flexibility in programming.
This model is suitable for use in embedded systems, consumer electronics, automotive, and industrial applications.
It features Schmitt trigger inputs for noise suppression and a bidirectional data transfer protocol for robustness against signal interference.
