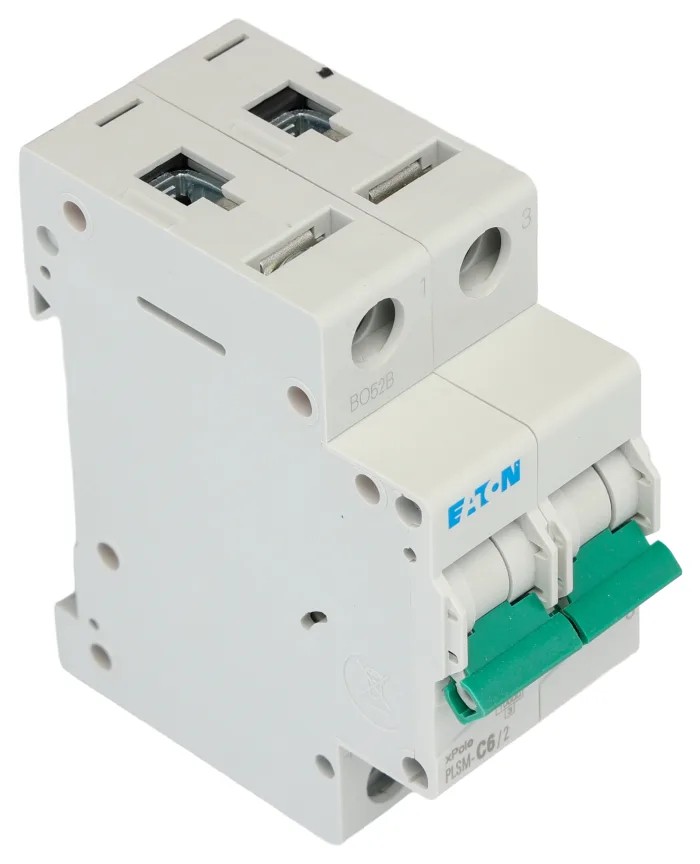

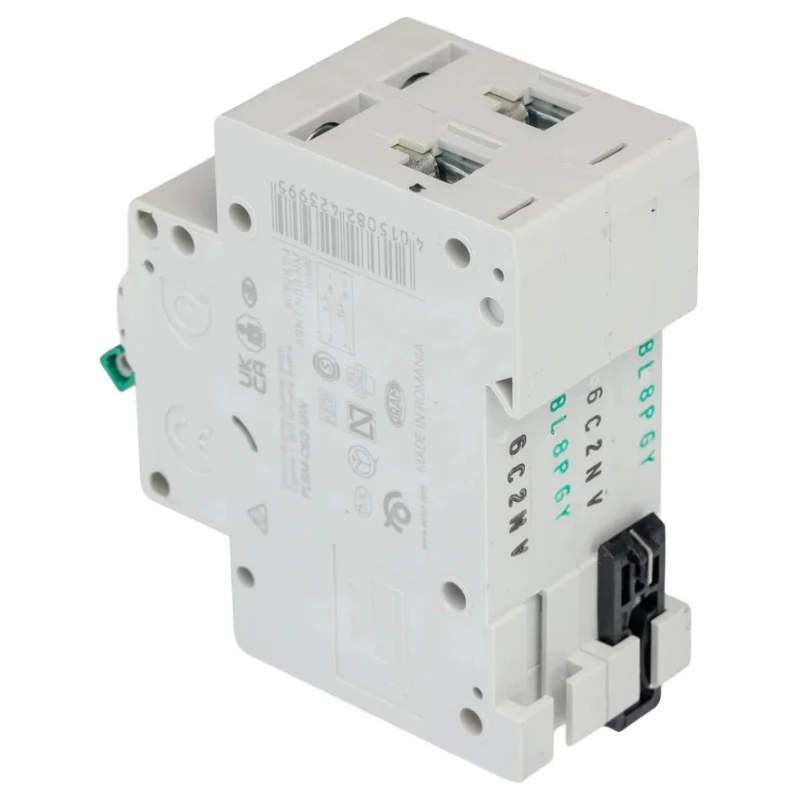

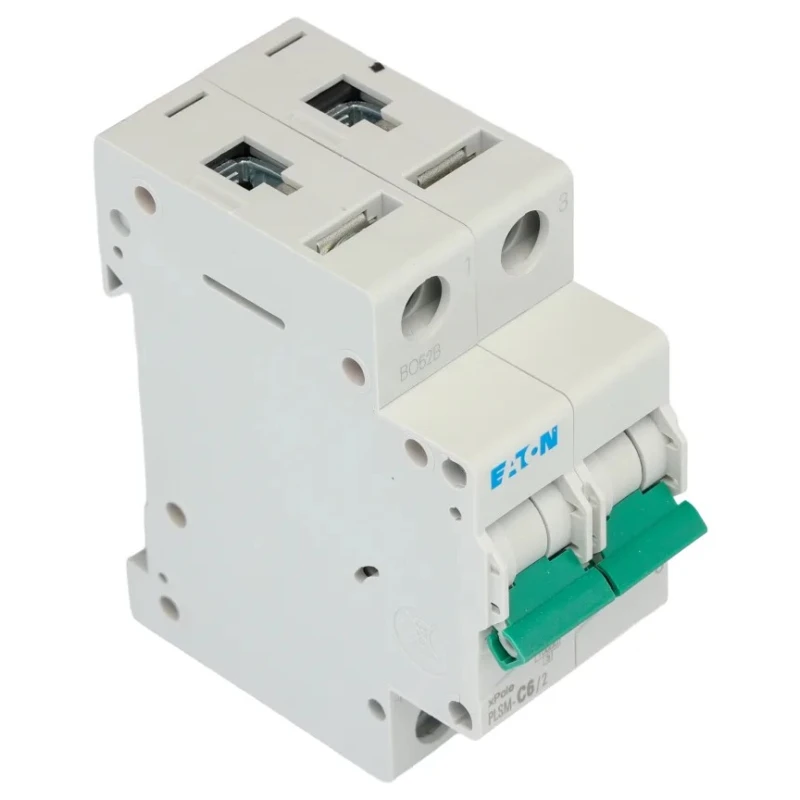

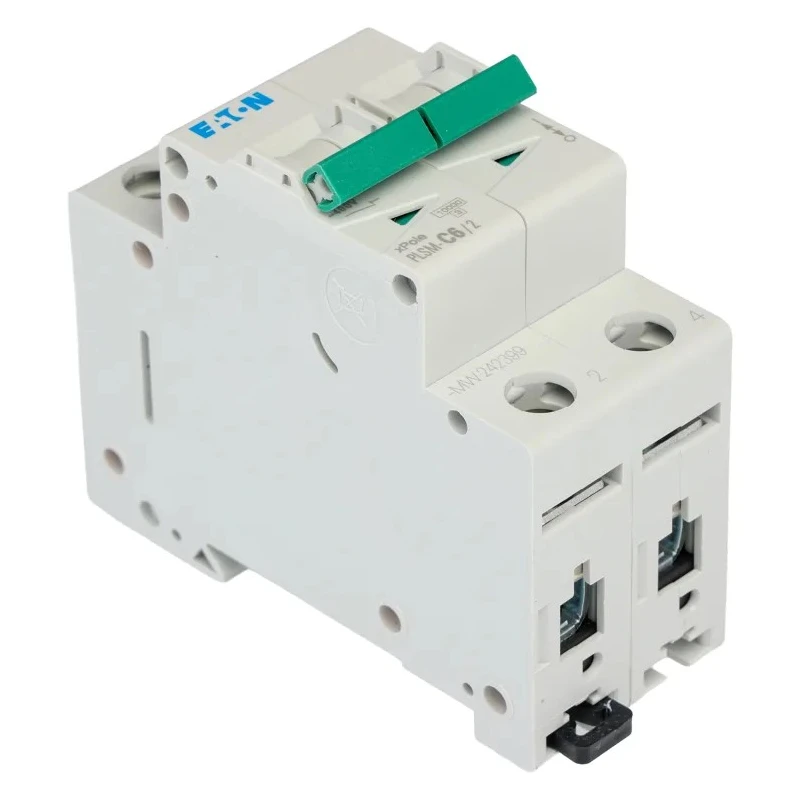

Eaton xPole PL Miniature Circuit Breaker 2-Pole 6A Type C 48 V DC 10 kA Breaking Capacity 242399 PLSM-C6/2-MW

Eaton 242399 PLSM-C6/2-MW Miniature Circuit Breaker is a high-quality 2-pole device designed for electrical protection rated at 6 amps with Type C tripping characteristics. It operates reliably at a rated DC voltage of 48 V and features a breaking capacity of 10 kA, making it ideal for handling electrical surges and potential short circuits in various environments.

Its compact dimensions of 75 mm depth and 80 mm width allow for optimized space usage within electrical control panels.

The device mounts conveniently on standard DIN rails, ensuring quick installation and maintenance flexibility. The toggle switch reset actuator provides straightforward manual control, allowing easy resetting of the device after tripping events.

Engineered to meet IEC/EN 60898-1 standards, this circuit breaker offers reliable protection and durability. Type C tripping characteristic is especially suitable for applications involving inductive loads such as motors and transformers, making it ideal for industrial and manufacturing use cases.

Applications include electrical circuit protection in residential buildings, commercial facilities, industrial automation systems, and control panels requiring effective current management and safety.

Type C characteristic enables handling of inrush currents in inductive loads. 2 poles provide balanced current interruption. 10 kA breaking capacity ensures safety in high fault current situations. DIN rail mounting promotes easy integration into electrical panels.

Compact size optimizes installation space. Compliance with international safety standards guarantees trustworthy operation. Toggle switch reset for user-friendly functionality. Suitable for a wide range of electrical power distribution applications.

Explore the Eaton xPole PL Miniature Circuit Breakers category on EnvMart for more options and technical solutions.
