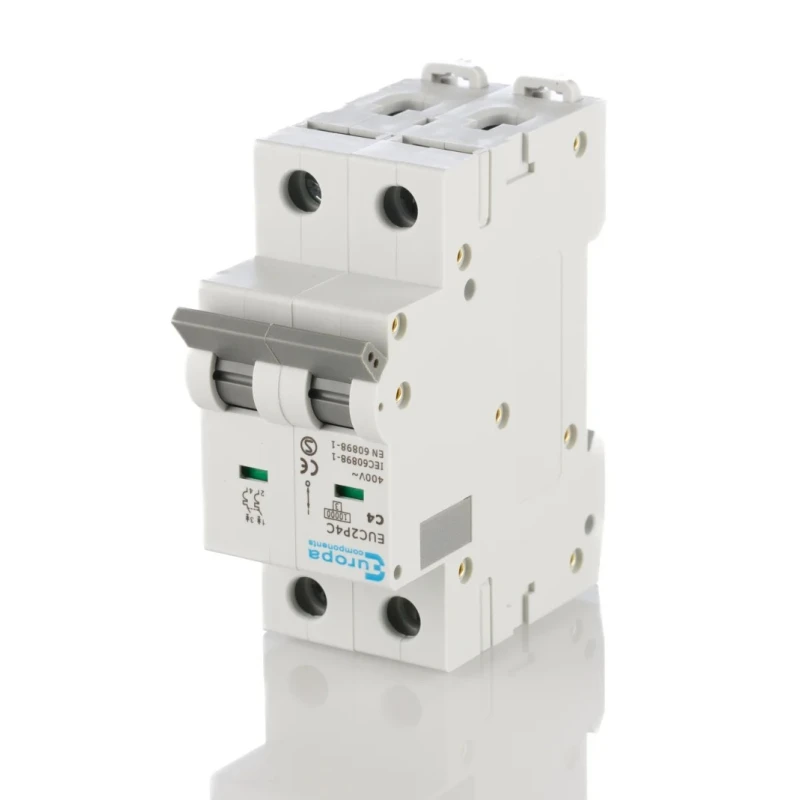

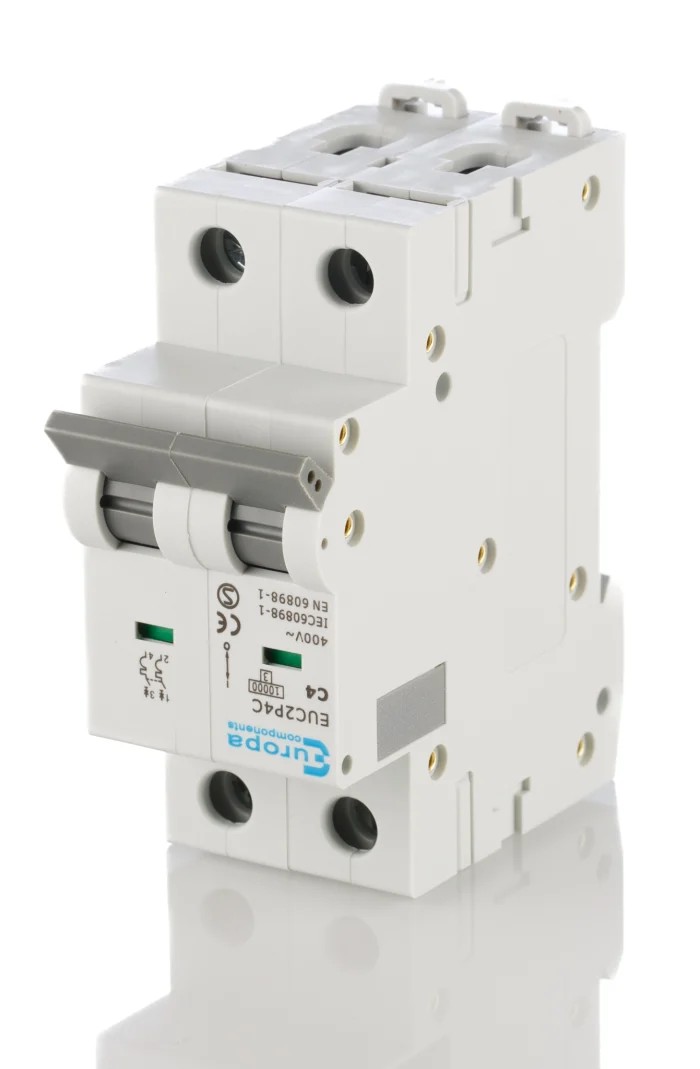

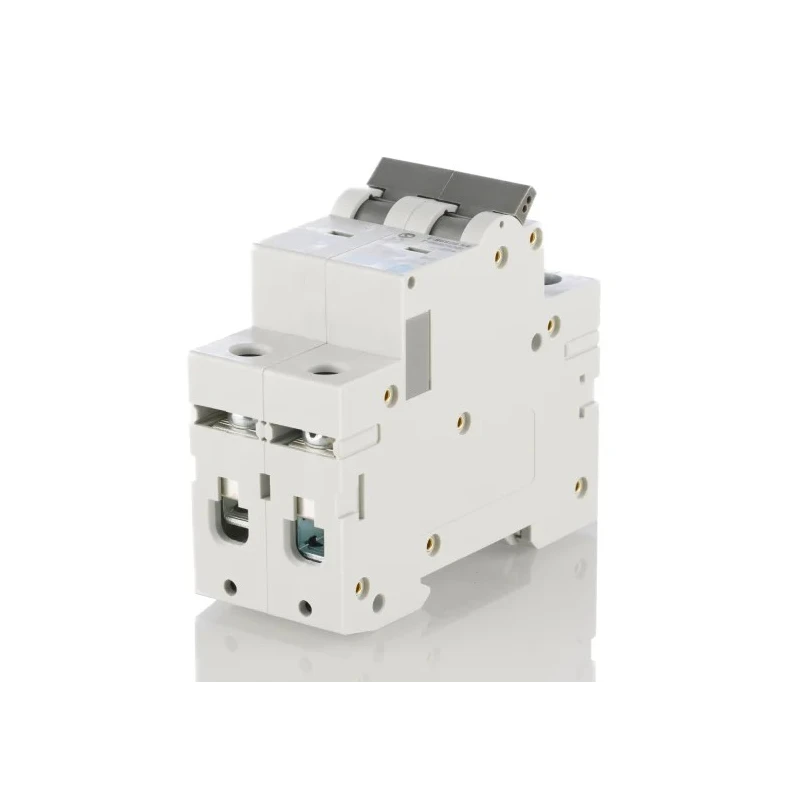

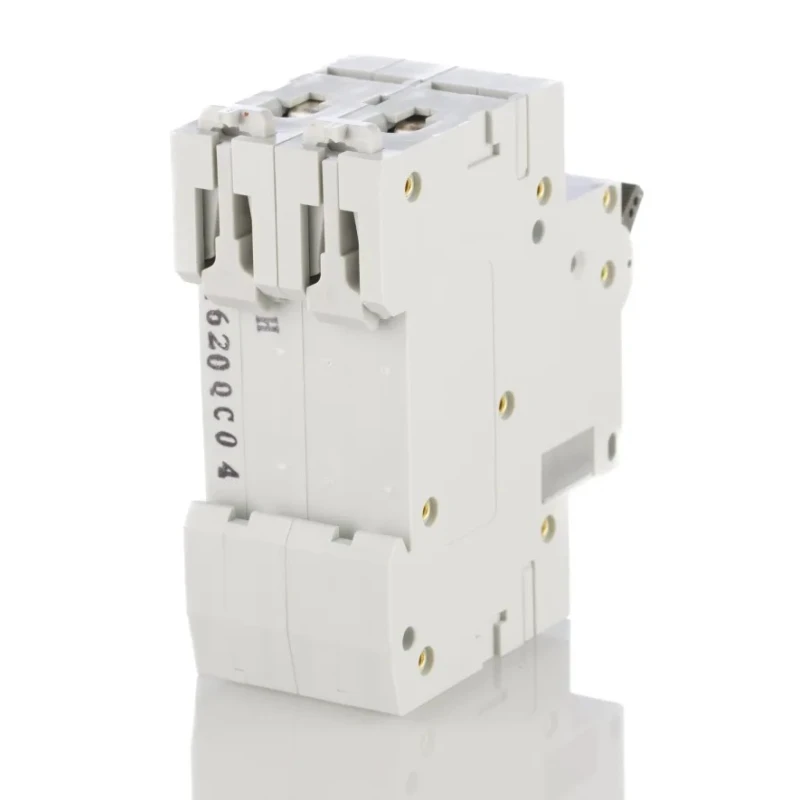

Europa Miniature Circuit Breaker 2-Pole 4A Type C 400V AC 10kA Breaking Capacity EUC2P

Europa EUC2P Miniature Circuit Breaker, model EUC2P, is a 2-pole device rated at 4 amperes, designed for reliable electrical circuit protection. It operates at a rated AC voltage of 400V and features a type C tripping characteristic suitable for both household and industrial circuits requiring moderate inrush current tolerance.

This MCB supports a breaking capacity of 10kA, ensuring high fault current interruption capability, safeguarding wiring and connected devices efficiently. The breaker is designed for mounting on a standard 35mm DIN rail and includes tunnel style terminals with a capacity ranging from 1mm² to 25mm², facilitating flexible wiring options.

The physical dimensions are compact for ease of installation: 78mm in width, 36mm in height, and 87mm in depth, making it suitable for consumer units and distribution boards. Its IP20 rating ensures protection against solid objects over 12mm and safe usage in dry indoor environments.

The toggle switch reset actuator enables easy manual reset after trip events, enhancing user convenience and operational reliability. This product complies with IEC 60898 and EN 60898 standards and carries approvals from SEMKO and CE, reflecting its conformance to international safety and quality norms.

Ideal for use in electrical automation, residential, and light industrial networks, the Europa EUC2P MCB delivers dependable protection against overloads and short circuits. Its robust construction and tested parameters make it a trustworthy component in circuit protection systems.

Designed for DIN rail mounting with a tunnel terminal type for easy installation. Rated current is 4 amperes with type C tripping characteristics for sensitive overload protection. Supports rated AC voltage of 400V and breaking capacity of 10kA for high fault current interruption.

Compact dimensions of 78mm width, 36mm height, and 87mm depth compatible with consumer units. Constructed to IP20 protection rating for safety in residential and industrial environments. Features a toggle switch reset actuator type for manual operation and safety.

Suitable for use in electrical, automation, and industrial circuit protection applications. Meets international standards including IEC 60898 and EN 60898 with certifications SEMKO and CE. Explore the Europa range on EnvMart for reliable circuit protection devices tailored to industrial and residential electrical systems.
