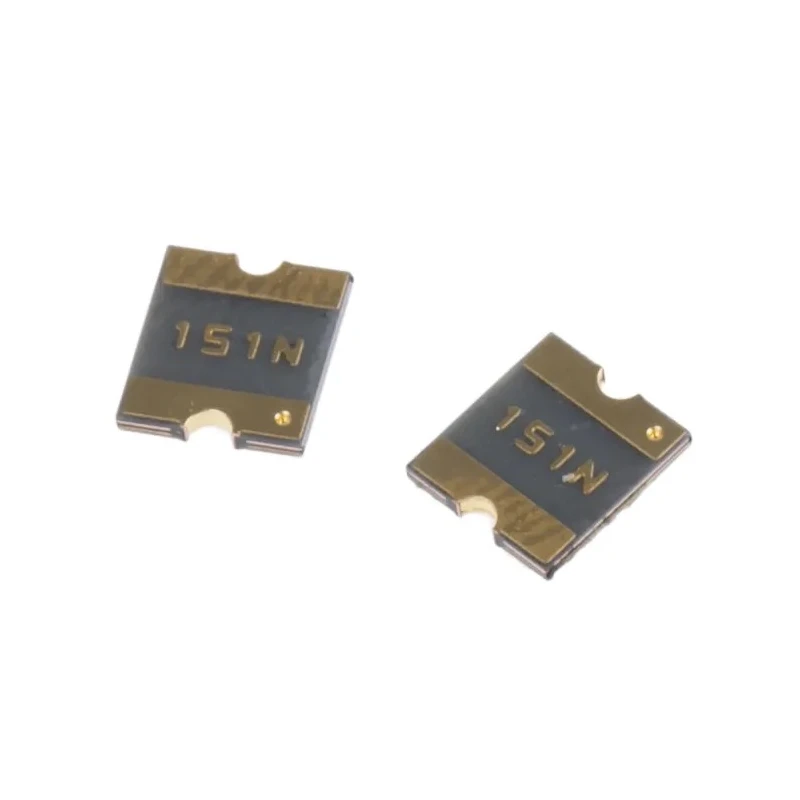

Bourns 15V 1.5 A Resettable Fuse MF-SMDF150-2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 15V |
| Brand | Bourns |
| Height | 0.85mm |
| Length | 5.44mm |
| Model | MF-SMDF150-2 |
| Width | 4.93mm |
| Current Rating | 40A |
| Series | MF-SMDF |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 2018 |
| Trip Current | 3A |
| Power Dissipation | 1.1W |
| Terminal Material | Electroless Nickel Immersion Gold Plated |
| Standards/Approvals | RoHS |
| Time to Trip | 0.8s |
| Hold Current | 1.5A |
| Minimum Resistance | 0.05Ω |
| Maximum Resistance | 170mΩ |
Key Features
- Very low profile and compact design for space-saving PCB layouts.
- Rapid trip time of 0.8 seconds ensures quick circuit interruption.
- Electroless nickel immersion gold plated terminals for superior conductivity.
- Surface mount 2018 footprint with symmetrical design for easy installation.
- Maintenance-free automatic reset for thousands of protection cycles.
- Suitable for use in security systems, automotive, medical, and communication equipment.
- Rated for operation between -40°C to 85°C temperatures.
- Power dissipation of 1.1 watts maintaining efficient performance.
Product Description
Bourns MF-SMDF150-2 is a high-quality resettable fuse designed for protecting electrical and electronic circuits from excessive current overloads. This component operates at 15V with a hold current of 1.5A and a trip current of 3A, providing swift protective response in just 0.8 seconds. The compact 2018 surface mount package and very low profile make it ideal for modern, space-constrained PCB designs.
The terminals are electroless nickel immersion gold plated offering excellent electrical connectivity and corrosion resistance for reliable long-term operation. This Resettable Fuse automatically resets when the fault condition clears, delivering maintenance-free usage over thousands of cycles, thus enhancing equipment longevity and reducing downtime. Power dissipation is rated at 1.1W, supporting efficient energy management.
Constructed for robust performance, it operates effectively within temperatures ranging from -40°C to 85°C. Typical applications include security systems, power supplies and transformers, automotive electronics, medical devices, instrumentation and control systems, computers, communications, and audio-visual equipment. The fuse features symmetrical design and adheres to RoHS environmental standards. It is supplied on reels suitable for automated assembly processes.
Very low profile and compact size for efficient PCB utilization. Fast tripping time of 0.8 seconds to protect circuits promptly. Gold plated terminals provide reliable conductivity and durability. Automatic reset capability supports multiple fault cycle protections.
Wide application range including industrial, automotive, medical, and communication fields. Supports operating temperatures from -40°C to 85°C for versatility. Power dissipation rated at 1.1 watts ensuring stable operation.
RoHS compliant for environmental safety and regulation adherence. Reel packaging format streamlines assembly and manufacturing processes. Explore more products in the Electronics & Electricals category on EnvMart for industrial-grade circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this model is 1.5A, which indicates the maximum current it can continuously carry without tripping.
The trip current for the MF-SMDF150-2 is 3A, meaning it will interrupt the circuit if the current exceeds this level.
This unit can operate at a maximum temperature of 85°C, making it suitable for various applications that may involve heat.
The time to trip for this model is 0.8 seconds, ensuring a quick response to overcurrent conditions.
This resettable fuse has dimensions of 5.44mm in length, 4.93mm in width, and 0.85mm in height, fitting well into compact PCB layouts.
The terminals of the MF-SMDF150-2 are electroless nickel immersion gold plated, which provides superior conductivity and corrosion resistance.
Yes, this resettable fuse is RoHS compliant, adhering to environmental safety regulations.
The power dissipation for the MF-SMDF150-2 is rated at 1.1 watts, which supports efficient energy management during operation.
The MF-SMDF150-2 is supplied on reels, which facilitates automated assembly processes in manufacturing.
This model operates effectively at a minimum temperature of -40°C, allowing it to function in diverse environmental conditions.
This resettable fuse is suitable for applications in security systems, automotive electronics, medical devices, and communication equipment.
The package type for this model is 2018, which is a surface mount design ideal for space-constrained PCB layouts.
