SICK DBS60 Core Series Incremental Encoder Solid Shaft 10 mm Diameter 30V 2000 PPR HTL TTL Output DBS60

Free Delivery in India | Lowest Global Shipping Charges

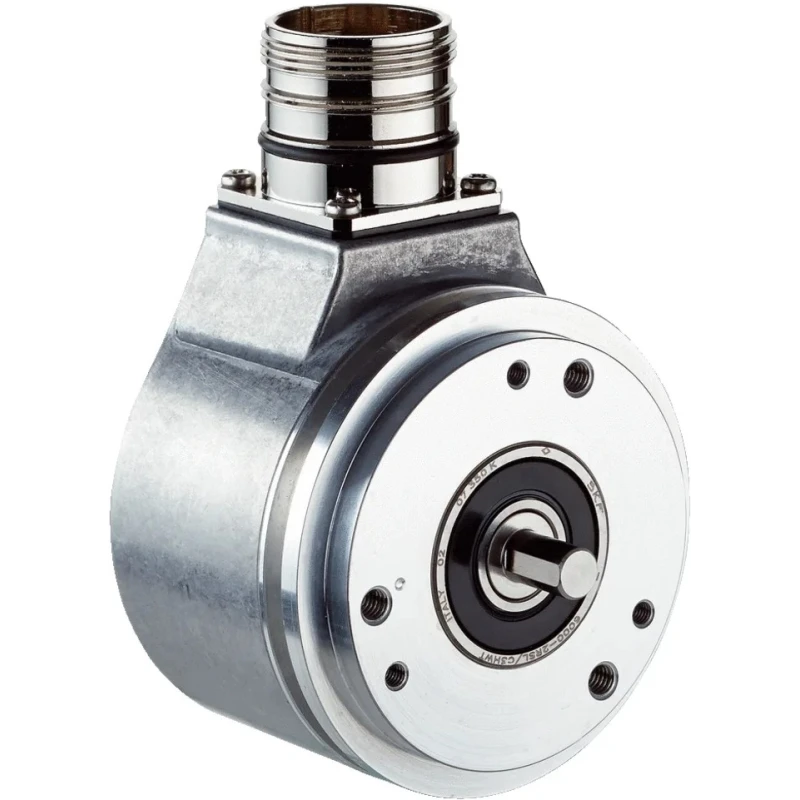

SICK DBS60 Core Series Incremental Encoder Solid Shaft 10 mm Diameter 30V 2000 PPR HTL TTL Output DBS60

Name: SICK DBS60 Core Series Incremental Encoder Solid Shaft 10 mm Diameter 30V 2000 PPR HTL TTL Output DBS60
Brand: SICK
SKU: 284952
Price: 387.31 USD
Availability: InStock



Category Incremental Encoder Brand SICK Condition New

Specifications

Country of Origin	Malaysia
Brand	SICK
Model	DBS60
IP Rating	IP65
Mount Type	Full Shaft
Series	DBS60 Core
Overall Width	58mm
Maximum Operating Temperature	100°C
Minimum Operating Temperature	-30°C
Shaft Diameter	10mm
Overall height	58mm
Switching Frequency	300kHz
Shaft Type	Solid
Terminal type	Plug-In
Interface Type	Incremental
Pulses per Revolution	2000ppr
Maximum Supply Voltage	30V
Overall Depth	44.35mm
Encoder Technology	Incremental
Maximum Revolutions	9000rpm
Output Signal Type	HTL, TTL

Key Features

The encoder features a solid shaft with 10 mm diameter for robust mounting.
Supports incremental encoder technology with 2000 pulses per revolution.
Operates with HTL and TTL output signal types for versatile interfacing.
Compact housing diameter of 58 mm ensures space-efficient installations.
High operating temperature range from -30°C to 100°C.
Rated IP65 protection for use in demanding industrial environments.
Maximum rotational speed of 9000 rpm supports high-speed applications.
Equipped with plug-in terminal type for easy connection.

Product Description

The SICK DBS60 Core Series Incremental Encoder DBS60 is a rugged, high-resolution incremental encoder designed for industrial applications requiring accurate measurement of position, speed, and distance. This model features a solid shaft with a 10 mm diameter and supports incremental encoder technology with 2000 pulses per revolution.

Operating at a maximum supply voltage of 30V DC, the DBS60 offers output signals in HTL and TTL formats, allowing flexible integration with various control systems. Its robust IP65 rated housing with a 58 mm diameter and an installation depth of 44.35 mm ensures reliable operation in harsh environments.

The encoder supports rotational speeds up to 9000 rpm and a switching frequency of 300 kHz, making it suitable for high-speed machinery such as asynchronous motors, elevators, packaging machines, and conveyor systems. Its full shaft mount design and solid shaft provide mechanical stability and durability, extending the service life under heavy shaft loads.

The DBS60 Core Series supports diverse installation options with different flange and shaft versions, including face mount and servo flange options. The encoder is also compliant with EN 61000-6-2 and EN 61000-6-3 standards for electromagnetic compatibility.

Applications of the DBS60 include factory and logistics automation, measuring conveying speed, precise height monitoring of printed circuit boards, and jerk-free acceleration and deceleration monitoring in elevator systems.

The encoder features a solid shaft with 10 mm diameter for robust mounting. Supports Incremental Encoder technology with 2000 pulses per revolution. Operates with HTL and TTL output signal types for versatile interfacing.

Compact housing diameter of 58 mm ensures space-efficient installations. High operating temperature range from -30°C to 100°C. Rated IP65 protection for use in demanding industrial environments. Maximum rotational speed of 9000 rpm supports high-speed applications.

Equipped with plug-in terminal type for easy connection. Designed for full shaft mounting with rugged construction for longer service life. Switching frequency capability up to 300 kHz supports precise signal processing.

Explore more products in our Sensors category at EnvMart for quality industrial and automation solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum rotational speed of the DBS60 encoder is 9000 rpm, making it suitable for high-speed applications.

This model supports HTL and TTL output signal types, allowing for versatile interfacing with various control systems.

The DBS60 encoder features a pulses per revolution rating of 2000 ppr, providing high-resolution measurements.

The encoder has an IP65 rating, ensuring protection against dust and water ingress, suitable for demanding industrial environments.

The overall dimensions of the DBS60 encoder are 58 mm in diameter and 44.35 mm in depth, making it compact for installation.

The operating temperature range for the DBS60 encoder is from -30°C to 100°C, allowing it to function in extreme conditions.

This encoder supports full shaft mounting, providing mechanical stability and durability under heavy loads.

The DBS60 encoder has a switching frequency capability of up to 300 kHz, supporting precise signal processing.

The maximum supply voltage for the DBS60 encoder is 30V DC, suitable for various industrial applications.

The DBS60 encoder is designed for applications such as factory automation, logistics, and precise monitoring in machinery like elevators and conveyors.

This model is equipped with a plug-in terminal type for easy connection, facilitating installation and maintenance.

The encoder is compliant with EN 61000-6-2 and EN 61000-6-3 standards for electromagnetic compatibility, ensuring reliable operation in industrial settings.
