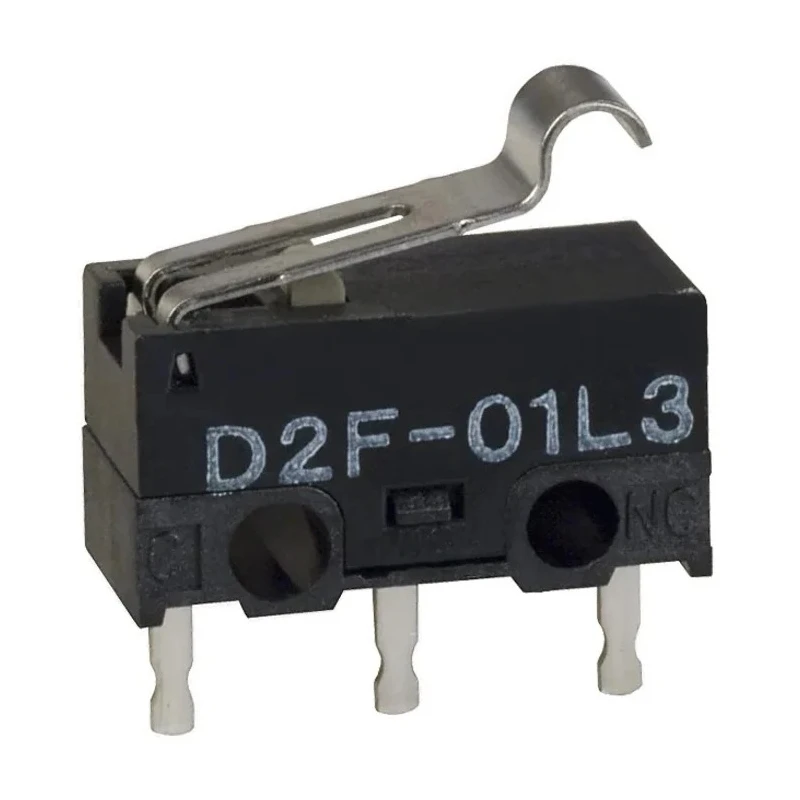

Omron Simulated Roller Lever Micro Switch, PCB Terminal, 100mA, SPDT, IP40 D2F-01L3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Model | D2F-01L3 |
| Depth | 3mm |
| IP Rating | IP40 |
| Series | D2F |
| Contact Configuration | SPDT |
| Actuator Type | Simulated Roller Lever |
| Terminal type | PCB Terminal |
| Switch Contact Current | 100mA |
Key Features
- The switch features a simulated roller lever actuator type ensuring precise operation.
- PCB terminal type allows easy mounting on printed circuit boards.
- Rated for 30V DC applications with a contact current of 100mA.
- Offers an IP40 protection rating suitable for protection against solid objects greater than 1mm.
- Incorporates a snapping mechanism with highly precise split springs for long durability.
- Insertion molded terminals prevent flux penetration during soldering processes.
- Available with self-clinching PCB and multiple terminal options including left-angled and right-angled soldering terminals.
- Widely used in high load and industrial automation applications.
Product Description
Omron D2F-01L3 Simulated Roller Lever Micro Switch is an ultra sub miniature switch designed for reliable and long-lasting operation in industrial and automation environments. Featuring a simulated roller lever actuator, this switch provides precise mechanical actuation and is suitable for PCB mounting via its PCB terminals. It is rated for a switch contact current of 100mA at 30V DC, operating as ON-(OFF), OFF-(ON) in an SPDT contact configuration.
The switch offers IP40 protection, effectively safeguarding against solid objects larger than 1 mm. The internal snapping mechanism, constructed using two highly precise split springs, enhances durability and operational life. Terminals are insertion molded to prevent flux penetration, ensuring better solder joint quality and reliability.
The versatile terminal options include self-clinching PCB terminals, left-angled and right-angled designs, as well as soldering terminals, allowing flexible mounting and application compatibility. These switches are extensively used in industrial automation, electrical control systems, HVAC equipment, and other high load switching applications where compactness and durability are critical.
The switch features a simulated roller lever actuator type ensuring precise operation. PCB terminal type allows easy mounting on printed circuit boards. Rated for 30V DC applications with contact current of 100mA. Offers an IP40 protection rating suitable for industrial environments.
Incorporates a snapping mechanism with highly precise split springs for long durability. Insertion molded terminals prevent flux penetration during soldering processes. Available with self-clinching PCB and multiple terminal options.
Ideal for industrial automation and electrical equipment applications.
The Omron D2F-01L3 micro switch is a reliable component for various electrical circuits requiring compact switches with robust performance. Explore more Micro Switches and electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch has a contact current rating of 100mA.
It offers an IP40 protection rating, which safeguards against solid objects larger than 1 mm.
This model features a simulated roller lever actuator type for precise operation.
The switch is rated for 30V DC applications.
It utilizes PCB terminals for easy mounting on printed circuit boards.
The depth of the switch is 3mm.
It operates with a Single Pole Double Throw (SPDT) contact configuration.
It incorporates a snapping mechanism with highly precise split springs for long durability.
It is widely used in industrial automation, electrical control systems, and HVAC equipment.
The terminals are insertion molded to prevent flux penetration, ensuring better solder joint quality.
The country of origin for this micro switch is India.
It offers multiple terminal options including self-clinching PCB, left-angled, and right-angled soldering terminals.
