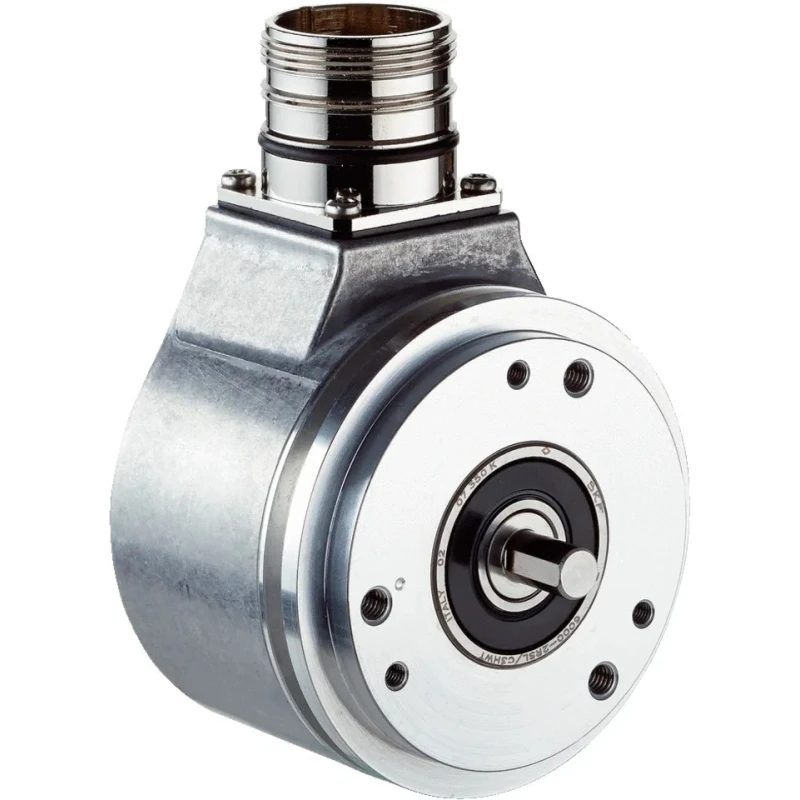

SICK DBS60 Core Series Incremental Encoder 30V, 5000 ppr, TTL/HTL Signal, Solid 6 mm Shaft DBS60

SICK DBS60 Core Series Incremental Encoder DBS60 is a high-performance incremental rotary encoder featuring a solid 6 mm shaft and supporting TTL and HTL signal outputs at a maximum supply voltage of 30 V DC. It provides 5000 pulses per revolution, delivering detailed position, speed, and distance measurement for industrial automation and control processes.

Designed with a compact housing diameter of 58 mm and a depth of 44.35 mm, the encoder offers a robust IP65 protection rating ensuring resistance to dust and water ingress, ideal for harsh factory and logistics environments. Operating temperature ranges from -30°C to 85°C, allowing usage in diverse climatic conditions.

The encoder supports a maximum rotational speed of 9000 rpm and a switching frequency of 300 kHz, ensuring accurate and responsive motion detection. Its plug-in terminal type facilitates reliable connections while mounting is achieved with a full shaft type flange. This device complies with EN 61000-6-2 and EN 61000-6-3 standards, guaranteeing electromagnetic compatibility in industrial settings.

The SICK DBS60 Core Series is well-suited for applications including asynchronous motors, elevators, packaging machines, warehousing and transport logistics, and precise height monitoring in production lines. It excels at measuring conveying speeds, jerk-free acceleration of elevator cars, and transfer system position monitoring.

The robust design with a large bearing distance supports high shaft loads, enhancing service life. Diverse flange and shaft versions provide flexible installation options. Cable connections available include M12 and M23 male connectors.

High resolution with 5000 pulses per revolution for precise measurement. Solid 6 mm shaft ensures reliable rotary motion detection. Compatible output signals: TTL and HTL for versatile interfacing. Durable construction with IP65 protection for industrial environments.

Operates efficiently within -30°C to 85°C temperature range. Compact size with 58 mm diameter and 44.35 mm depth. Mount type is full shaft for ease of installation. Maximum rotational speed up to 9000 rpm suitable for varied applications.

Switching frequency up to 300 kHz for fast response. Complies with EN 61000-6-2 and EN 61000-6-3 electromagnetic compatibility standards. This encoder is an ideal choice for factory automation, logistics, manufacturing, and motion control sensor applications. Explore more options in Incremental Encoders at EnvMart.
