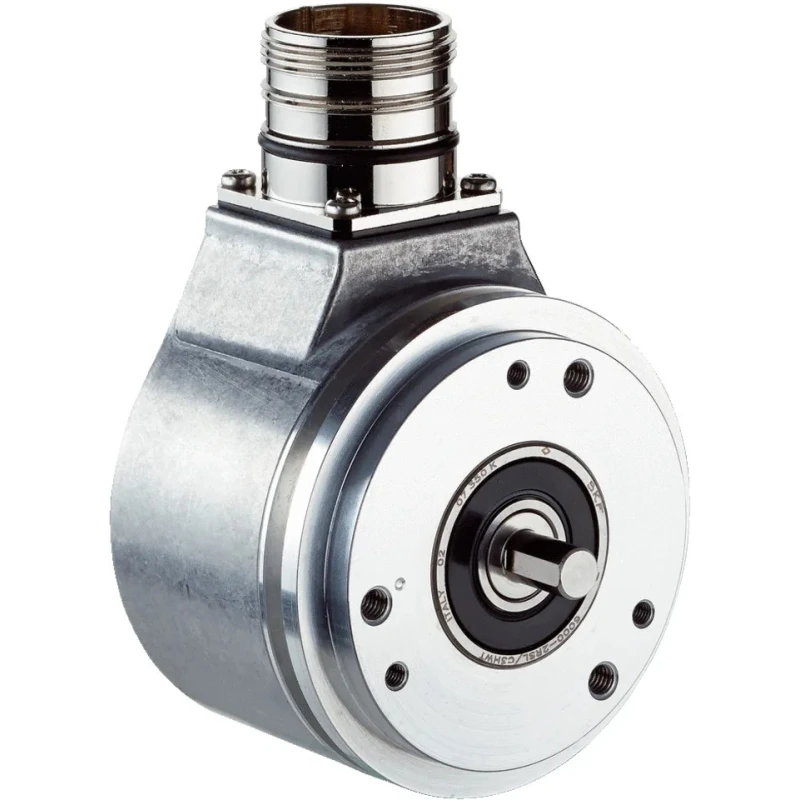

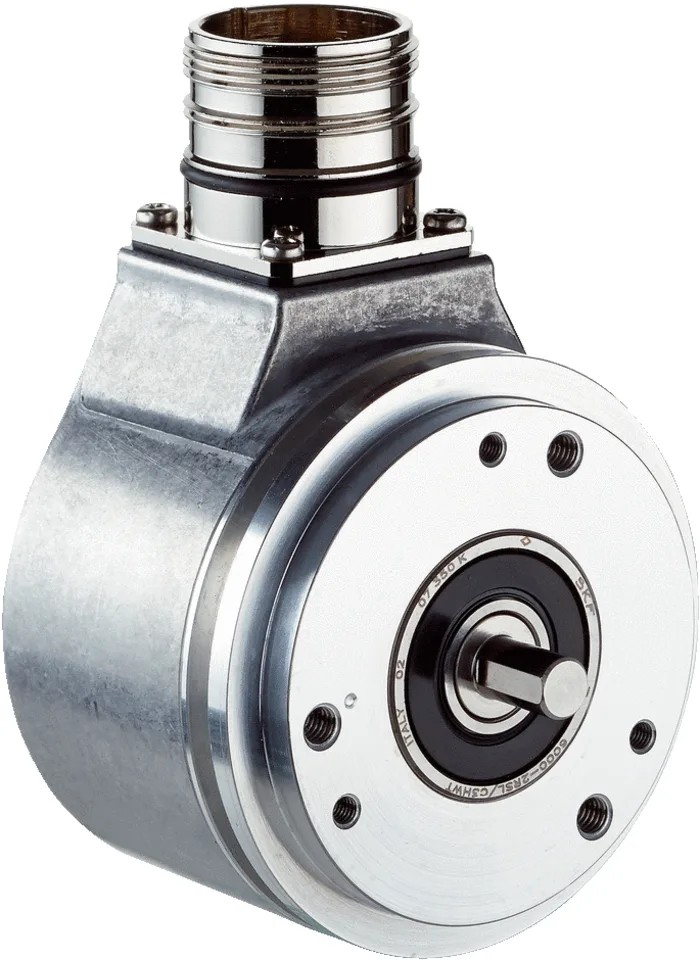

SICK DBS60 Core Series Incremental Encoder 30V, 1024 PPR, HTL TTL Signal, Solid Shaft 6 mm DBS60
Specifications
| Country of Origin | Singapore |
|---|---|
| Brand | SICK |
| Model | DBS60 |
| IP Rating | IP65 |
| Mount Type | Full Shaft |
| Series | DBS60 Core |
| Overall Width | 58mm |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -30°C |
| Shaft Diameter | 6mm |
| Overall height | 58mm |
| Switching Frequency | 300kHz |
| Shaft Type | Solid |
| Terminal type | Plug-In |
| Interface Type | TTL/HTL |
| Pulses per Revolution | 1024ppr |
| Maximum Supply Voltage | 30V |
| Overall Depth | 44.35mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 9000rpm |
| Output Signal Type | HTL, TTL |
Key Features
- Encoder technology provides incremental signals with high resolution of 1024 pulses per revolution.
- Supports HTL and TTL output signal types with a maximum supply voltage of 30V.
- Solid shaft design with 6 mm diameter for reliable mechanical coupling.
- Compact housing with 58 mm diameter and IP65 protection rating ensures durability.
- Wide operating temperature range from -30°C to 100°C suits harsh industrial environments.
- Maximum rotational speed up to 9000 rpm with a switching frequency of 300 kHz.
- Mounting options include full shaft with face mount and servo flange.
- Meets EN 61000-6-2 and EN 61000-6-3 standards for electromagnetic compatibility.
Product Description
SICK DBS60 Core Series Incremental Encoder DBS60 is a highly durable and compact incremental encoder designed for accurate measurement of position, speed, and distance in industrial automation and control systems. It operates with a wide supply voltage range up to 30V and supports HTL and TTL signal interfaces, delivering 1024 pulses per revolution for precise feedback.
The encoder features a solid 6 mm diameter shaft and a compact housing with an overall diameter of 58 mm, depth of 44.35 mm, and a height of 58 mm. Its IP65 rating protects it from dust and moisture, ensuring dependable function in harsh environments. The rugged design, including large bearing distance, allows it to withstand high shaft loads and temperatures up to 100°C.
Mounting options include face mount and servo flange with various hole patterns, allowing flexible installation. Electrical connections are via plug-in terminals and available connectors such as M12 and M23. This encoder meets EN 61000-6-2 and EN 61000-6-3 electromagnetic compatibility standards, making it suitable for diverse industrial settings.
The DBS60 Core Series is ideal for factory and logistics automation use cases such as asynchronous motor control, elevator speed monitoring, packaging machinery, warehousing logistics, conveyor speed measurement, and precise position monitoring on transfer and printing devices. It supports jerk-free acceleration and deceleration of elevator cars and precise height monitoring of PCB devices.
With a maximum rotational speed of 9000 rpm and switching frequencies up to 300 kHz, it ensures reliable and responsive performance. Its compact size saves valuable space, and the versatile electrical interfaces reduce inventory requirements. The product is manufactured in Singapore, reflecting high-quality engineering standards.
Incremental encoder technology with 1024 pulses per revolution. Supports HTL and TTL output signals with 30V supply voltage. Solid 6 mm shaft diameter for secure mechanical fit. Compact IP65 rated housing for robust industrial use.
Wide operating temperature from -30°C to 100°C. Maximum speed rating of 9000 rpm. Mounting options include face and servo flange. Meets EN 61000-6-2 and EN 61000-6-3 standards for EMC. Suitable for automation, packaging, elevators, and logistics applications.
Explore more professional-grade Incremental Encoders and motion control sensors in the Electronics & Electricals category on EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for the DBS60 encoder is 30V.
This incremental encoder provides a resolution of 1024 pulses per revolution (PPR).
It supports HTL and TTL output signal types.
The maximum rotational speed of this encoder is 9000 rpm.
The operating temperature range for the DBS60 is from -30°C to 100°C.
The DBS60 encoder has an IP65 rating, providing protection against dust and moisture.
The overall dimensions are 58 mm in width, 58 mm in height, and 44.35 mm in depth.
This model features a solid shaft with a diameter of 6 mm.
The encoder can be mounted using a full shaft with face mount or servo flange options.
The switching frequency for the DBS60 is up to 300 kHz.
It meets the EN 61000-6-2 and EN 61000-6-3 standards for electromagnetic compatibility.
The DBS60 encoder is manufactured in Singapore.
